Stacked Bars

Example

Summary of settings

• Type of chart: Columns
• Mapping of "x" attribute: City
• Mapping of "y" attribute: Profit
• Common attributes → Split mapped to Desk dimension
• Specific attributes → Columns → "Column Type" is set to Stacked

Step-by-step instruction

1. Add new Chart Widget

2. Select "Columns"

3. If there are multiple cubes connected to your application, you must select the cube you want for the chart.

4. To map "x" attribute, select the groups you would like to see on horizontal axes, in this case the dimension City.

5. To map the "y" attribute, select the value (measure) corresponding to vertical axes, in this case Profit.

   The chart displays with axes mapped:



6. Set "Split" to allocate columns to members of another dimension. In the example, Profit in each City broken down by Desk. First, click Options in the Legend area of the chart:



   In the Options popup, find the "Split" attribute and map it to the desired dimension, Desk.



   Now each City shows up as a group of Desks columns.

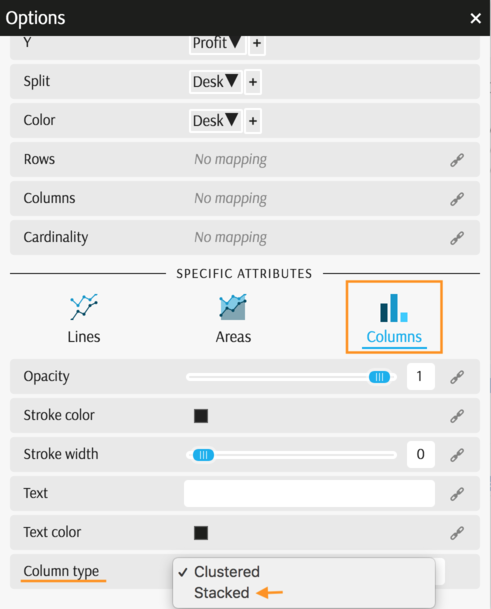

7. In the Options popup, scroll down to the "Specific attributes" section. Click "Columns" icon and find the "Column type" setting. By default it is set to "Clustered". Change it to "Stacked" to obtain the desired result:



The example is complete:

Back to Chart Gallery

Appendix

The appendix contains code snippets for advanced users.

MDX:

SELECT
  NON EMPTY Crossjoin(
    [Booking].[Desk].[Desk].Members,
    [Geography].[City].[City].Members
  ) ON ROWS,
  {
    [Measures].[Profit]
  } ON COLUMNS
  FROM [EquityDerivativesCube]

JSON:

{
  "configurations": [
    {
      "handlers": {
        /* ... */
      },
      "type": "combo-histogram",
      "mapping": {
        "x": {
          "from": ["[Geography].[City].[City]"]
        },
        "y": {
          "from": "[Measures].[Profit]"
        },
        "split": {
          "from": ["[Booking].[Desk].[Desk]"]
        }
      },
      "histogramSplit": "stack"
    }
  ]
}
