Setting limits for query results

A GetAggregatesQuery does not only build the cells it returns. To produce them, the engine materializes intermediate results, and those can be far larger than the final result. The IQueriesResultLimit context value caps that intermediate work, so that a single expensive query cannot exhaust the server’s memory and disrupt every other user. These limits belong to the GetAggregatesQuery layer, not to the MDX engine. They are applied during query evaluation. They are not the MDX result limit, which caps the number of cells in the result and is checked after evaluation. An MDX statement is still subject to IQueriesResultLimit, because it compiles into one or more GetAggregatesQuery: it can return ten cells and still be stopped by what those queries had to compute to get there. Exceeding either limit raises a RetrievalResultSizeException and aborts every operation involved in the query.

​
What is counted

The limits count point locations: the individual points held by the results of the retrievals that make up a query. They do not count rows read from the database, cells returned to the client, or bytes. Reading the execution plan first is the fastest way to make sense of these limits, because the plan is where the counted quantities are printed.

​
Configurable limits on query results

There are two limits, and they catch two different problems. A few consequences are worth spelling out. intermediateLimit is per partition. A retrieval running over eight partitions produces eight results, and each one is checked separately against the limit. The execution plan prints one result size per partition for exactly this reason. transientLimit covers one GetAggregatesQuery (GAQ). A GAQ carries many locations, and in most cases a single MDX statement compiles into a single GAQ covering all of its locations, so in practice the transient limit is the ceiling on a whole MDX query. Each GAQ execution counts against its own budget, so a statement that leads to more than one, such as a multi-pass query or one evaluated against several cube versions, gives each execution a budget of its own. The two fields do not always move independently. Setting only transientLimit leaves intermediateLimit at its default. In the other direction, when the limits are read from properties, such as a shared context value, the transient limit is never left below the intermediate one: setting only intermediateLimit to a value above the transient default raises transientLimit to match it, and setting it to -1 lifts both.

​
Default values

Queries are limited by default. Not setting IQueriesResultLimit does not mean unlimited, the limits fall back to the values above. The only way to run a query without a limit is QueriesResultLimit#withoutLimit().
The same pair is available as QueriesResultLimit#defaultLimit().

​
Setting the limits

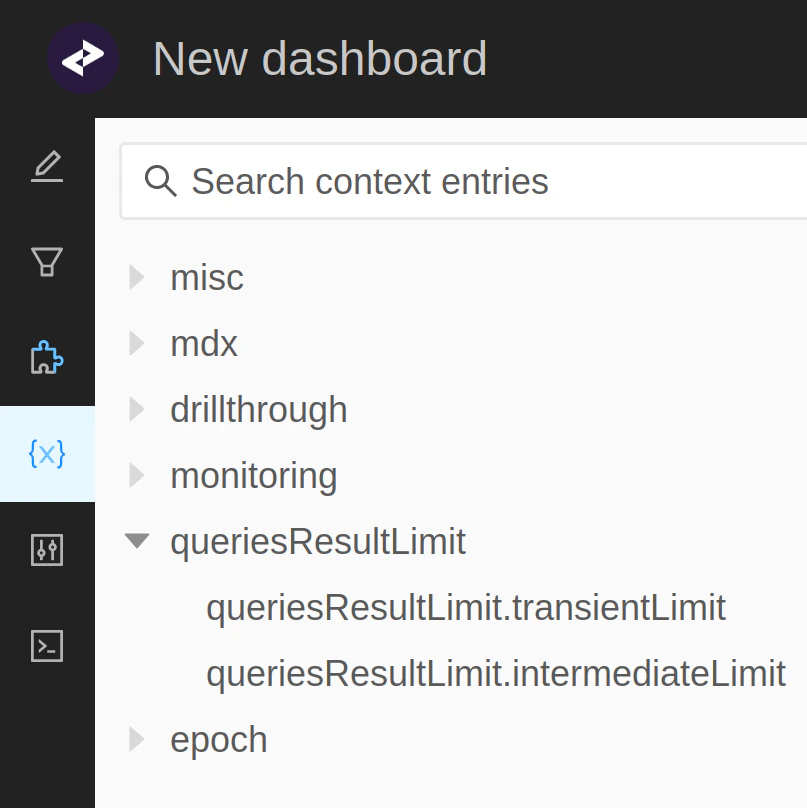

Query result limits can be set through Atoti context values,
or in the cube description
or through query context values

​
Choosing values

There is no formula that turns a query into a limit. The number of points a query computes depends on the measures involved, the shape of the data and the way post-processors expand locations, so it is measured rather than predicted. The execution plan reports the size of every retrieval result, which is the quantity the limits are compared against, so the procedure is:
  1. Run the representative query once with QueriesResultLimit#withoutLimit(), outside production.
  2. Enable the execution plan timing print mode of execution plan logging, which is the mode that measures result sizes, and read the Result size (in points) line of each retrieval. It holds one value per partition of that retrieval.
  3. The largest value across the whole plan is the floor for intermediateLimit, and the sum of all of them is the floor for transientLimit.
  4. Add headroom for data growth, and set the limits above those floors.
That sum is a lower bound on what the transient limit counts. When a result is copied or merged, its points are contributed again, so a query can accumulate more points than the sum of the result sizes shown in the plan. Treat it as a starting point to tune from, not as an exact target.
Repeat the measurement on the queries that matter rather than on one, since the right limit is the one that accommodates the heaviest query you intend to support and rejects the ones you do not.

​
Diagnosing a rejected query

The exception names the limit that was reached and the field to change. Which of the two fired tells you what to look at:
  • intermediateLimit: one retrieval produced too many points on its own. Find the largest Result size (in points) in the plan and look at that retrieval. A deep granularity or a Copper join fanning out over a large dimension are the usual causes.
  • transientLimit: the query accumulated too many points across all its retrievals, and no single retrieval need be anywhere near intermediateLimit. This is the wide query case, with many locations running through a chain of measures. Raising intermediateLimit will not help here.
Only the contribution that crosses the transient limit reports it. Retrievals of the same query that are still running are cancelled, and they raise a CancellationException carrying A retrieval exceeded the limit. Cancelling this retrieval... instead. When you search logs for a rejected query, expect one RetrievalResultSizeException among several cancellations.

​
In a distributed setup

The limits are enforced twice, in two different places. Each data node applies them to its own retrievals, against its own transient budget. If one data node exceeds its limit, the whole query fails, and the partial results of the other data nodes are not accounted for. The query node then applies them again to the results it receives, so its budget has to cover what all the data nodes return together, not just the largest of them. Budget for considerably more than that in a polymorphic setup. The query node replicates the results it receives across the combinations the data nodes do not hold, so a single point returned by a data node can materialize as many points on the query node, some of them without any underlying contribution. This is the usual reason a query node hits the limit while every data node stayed well under it.

​
Miscellaneous

A few more behaviors to keep in mind:
  • Intermediate results may exceed the limit even when the final result does not. A Copper join including factless points that are later removed from the final result is a typical example.
  • A retrieval missed during a post-processor chain is recomputed by a new query with a fresh transient budget, so the points it computes do not count against the query that needed it.
  • The Continuous Query Engine enforces the limit on the shared retrievals it runs while processing real-time events. That check can be disabled for the update path only. See the continuous query engine.
