This guide explains how to use Postman to test and interact with the Atoti MCP server.

​
Why connect with Postman?

Using Postman to connect to the MCP server provides several benefits:
  • Test MCP server configuration and availability
  • Validate tool discovery and execution
  • Explore available tools and their parameters
  • Debug integration issues
  • Test custom tools during development

​
Prerequisites

Before connecting with Postman, ensure the following requirements are met:
  • Atoti MCP server is set up and running
  • Postman is installed (desktop or web version)
  • Atoti application credentials (username and password)
  • The MCP server endpoint URL (typically http://localhost:PORT/sse)

​
Configure authentication

Set up authentication in Postman to access the MCP server. Follow these steps:
  1. Open Postman
  2. Create a new request
  3. Select the Authorization tab
  4. Choose “Basic Auth” as the type and enter the Atoti username and password, or choose “Bearer Token” and paste a token generated from the MCP credentials page.

​
Discover available tools

Make a request to the MCP server to discover available tools. The following example shows a request to list tools:

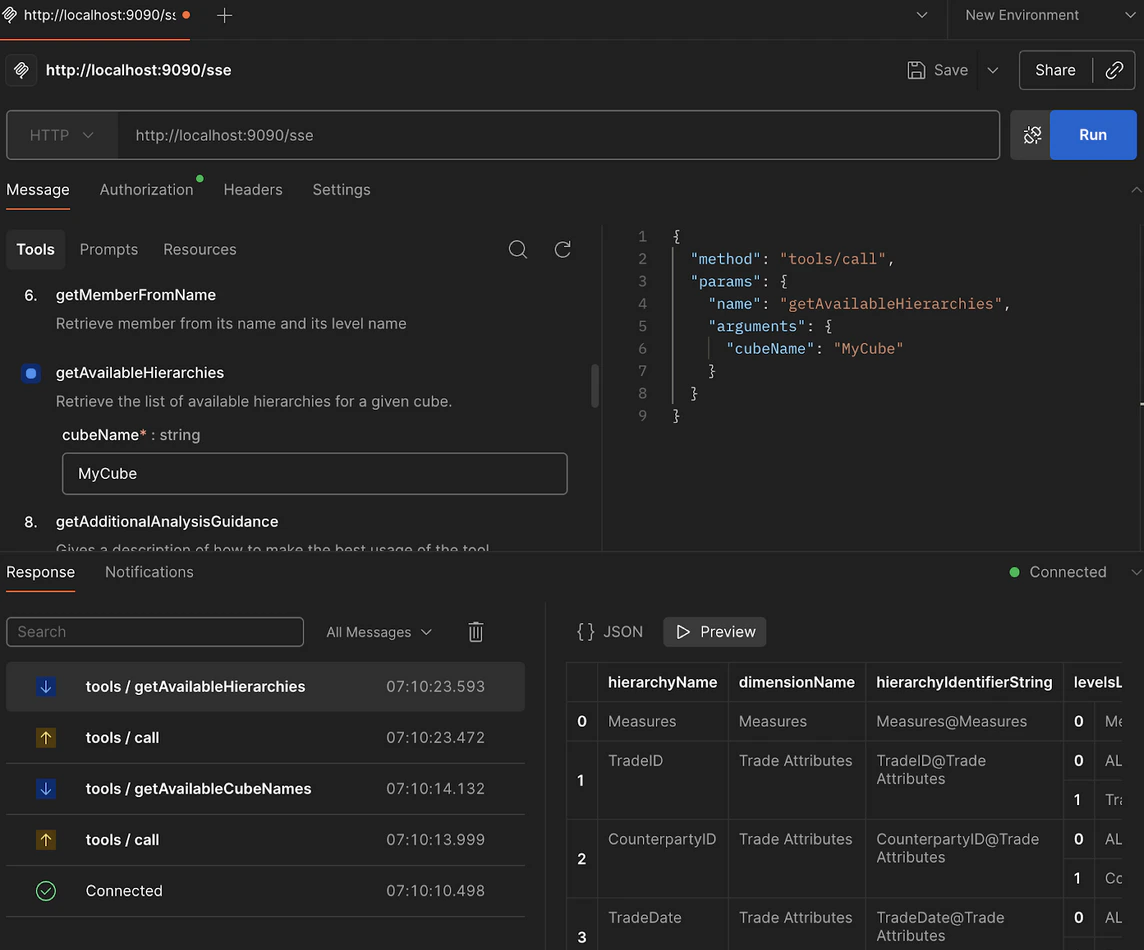

Postman tool discovery

​
Make tool requests

After discovering available tools, make requests to execute specific tools. Configure the request with the following components:
  • Method: POST
  • URL: The MCP server endpoint
  • Headers:
    • Content-Type: application/json
    • Accept: text/event-stream (for SSE endpoints)
  • Body: JSON payload with tool name and parameters

​
Example request structure

The following example shows a typical tool execution request:
{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "tools/call",
  "params": {
    "name": "tool-name",
    "arguments": {
      "parameter1": "value1",
      "parameter2": "value2"
    }
  }
}
Replace the following placeholders:
  • tool-name: The name of the tool to execute
  • parameter1, parameter2: Tool-specific parameters
  • value1, value2: Parameter values

​
Interpret responses

The MCP server returns responses in JSON-RPC format. A successful response includes:
  • Response data in the result field
  • Request ID matching the original request
  • HTTP status code 200
An error response includes:
  • Error details in the error field
  • Error code and message
  • HTTP error status code

​
Common use cases

Use Postman to test the following scenarios:
  • Verify MCP server availability
  • List all available tools
  • Execute tools with different parameters
  • Test authentication and authorization
  • Validate custom tool implementations
  • Debug integration issues

​
Troubleshooting

If connections fail, check the following:
  • The Atoti application is running
  • The MCP server endpoint is accessible
  • Authentication credentials are correct
  • The request format matches JSON-RPC specifications
  • Firewall or network settings allow connections
After testing with Postman, consider:
