This guide explains how to connect Claude Desktop to the Atoti MCP server.
OAuth 2.1 browser authenticationIf the Atoti server has OAuth 2.1 enabled, recent versions of Claude Desktop and Claude Code drive the browser-based PKCE flow automatically, with no Basic-auth passkey or manual token handling required.The Atoti MCP Server defaults to STREAMABLE transport, which exposes a single POST /mcp endpoint. Configure Claude with the http transport type pointing at the /mcp URL:
{
  "mcpServers": {
    "my-mcp-server": {
      "type": "http",
      "url": "http://localhost:9090/mcp"
    }
  }
}
Claude Desktop and Claude Code detect the WWW-Authenticate challenge on the first request, open the system browser for the PKCE flow, and store the resulting tokens in the OS keychain. No mcp-remote bridge is needed with this transport.Two OAuth 2.1 modes are available: external IdP discovery (Okta, Entra ID, Auth0, Keycloak) and self-issued mode, where the Atoti server acts as its own authorization server.

​
Prerequisites

Before connecting Claude, ensure the following requirements are met:
  • Atoti MCP server is set up and running
  • Claude Desktop is installed
  • Access to Claude Desktop configuration file
  • Atoti application credentials (username and password)

​
Configure Claude Desktop

Add the MCP server configuration to the Claude Desktop config file. The location of this file depends on the operating system. The following examples assume the application runs locally on port 9090. Replace 9090 with the port on which the application is running. The server exposes a single POST /mcp endpoint (the STREAMABLE transport, which is the default). Use /mcp in the examples below. The legacy /sse endpoint exists only when the deployment opts back into the SSE transport with spring.ai.mcp.server.protocol: SSE.

​
Option 1: Basic authentication

The following example uses HTTP Basic authentication via mcp-remote. Replace {passkey} with a Base64-encoded string in the format Base64(<login>:<password>).
{
  "mcpServers": {
    "my-mcp-server": {
      "command": "npx",
      "args": [
        "-y",
        "mcp-remote",
        "http://localhost:9090/mcp",
        "--header",
        "Authorization: Basic {passkey}",
        "--header",
        "Content-Type: application/json",
        "--header",
        "Accept: application/json, text/event-stream",
        "http-only"
      ]
    }
  }
}

​
Option 2: Bearer token authentication

The following example uses a long-lived JWT bearer token via mcp-remote. Replace <jwt> with a token generated from the MCP credentials page.
{
  "mcpServers": {
    "my-mcp-server": {
      "command": "npx",
      "args": [
        "-y",
        "mcp-remote",
        "http://localhost:9090/mcp",
        "--header",
        "Authorization: Bearer <jwt>",
        "--header",
        "Content-Type: application/json",
        "--header",
        "Accept: application/json, text/event-stream",
        "http-only"
      ]
    }
  }
}
The bearer token approach avoids embedding credentials in the configuration file. The MCP credentials page must be enabled in the application before a token can be generated.

​
Generate the passkey

Replace {passkey} in the Basic authentication configuration with a Base64-encoded string. Generate the passkey using the following format:
Base64(<login>:<password>)
Replace <login> and <password> with the Atoti application credentials.

​
Verify the connection

After configuring Claude Desktop, verify that the connection works:
  1. Restart Claude Desktop
  2. Check that Claude discovers the MCP server tools

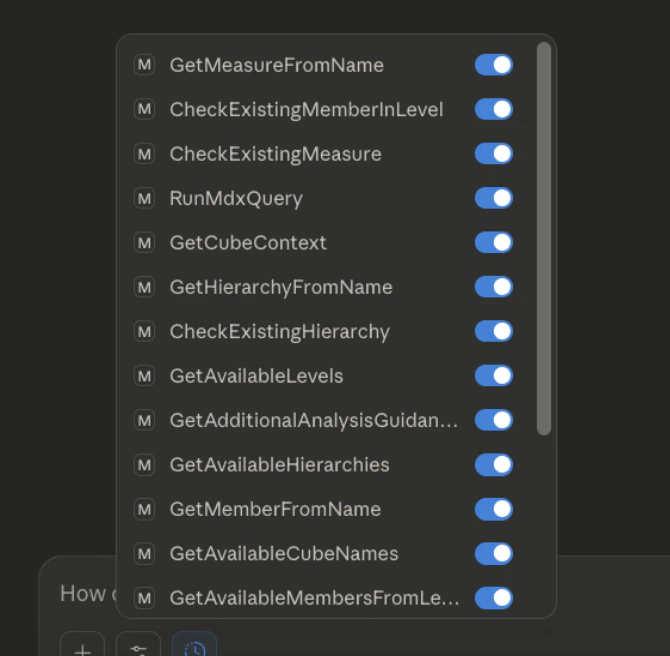

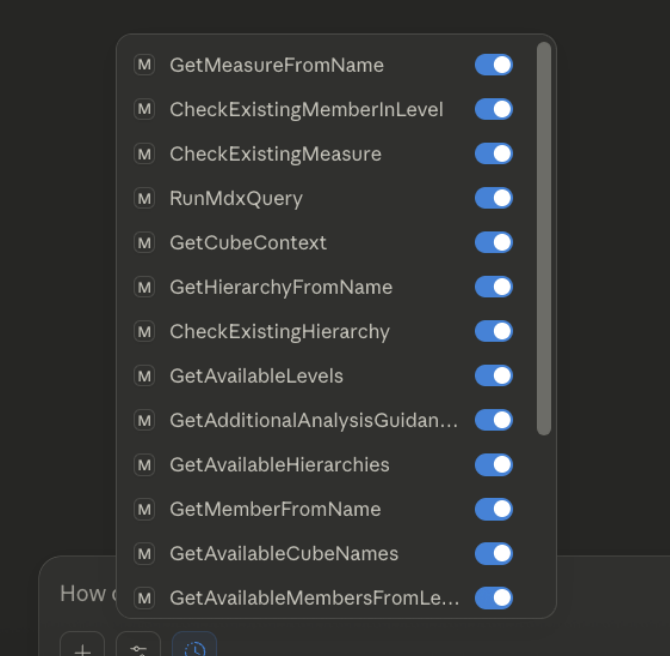

Tool Discovery
  1. Test interaction with the Atoti server by asking Claude to use the available tools

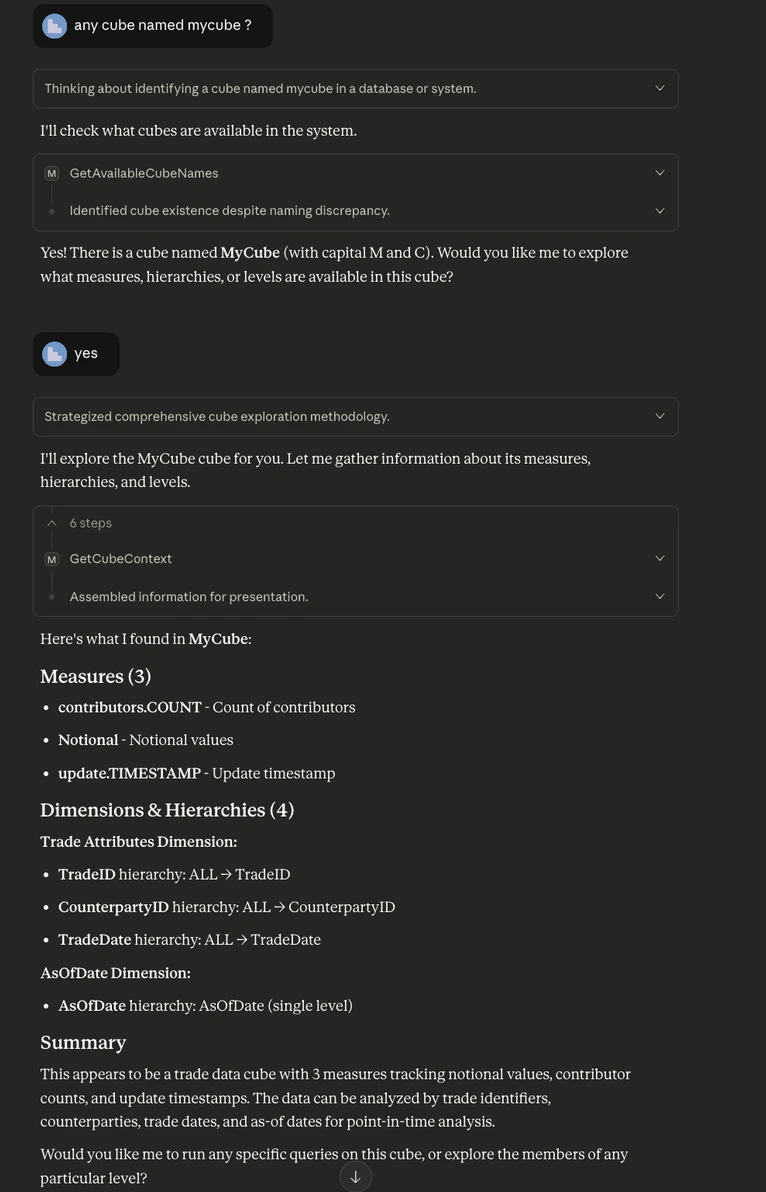

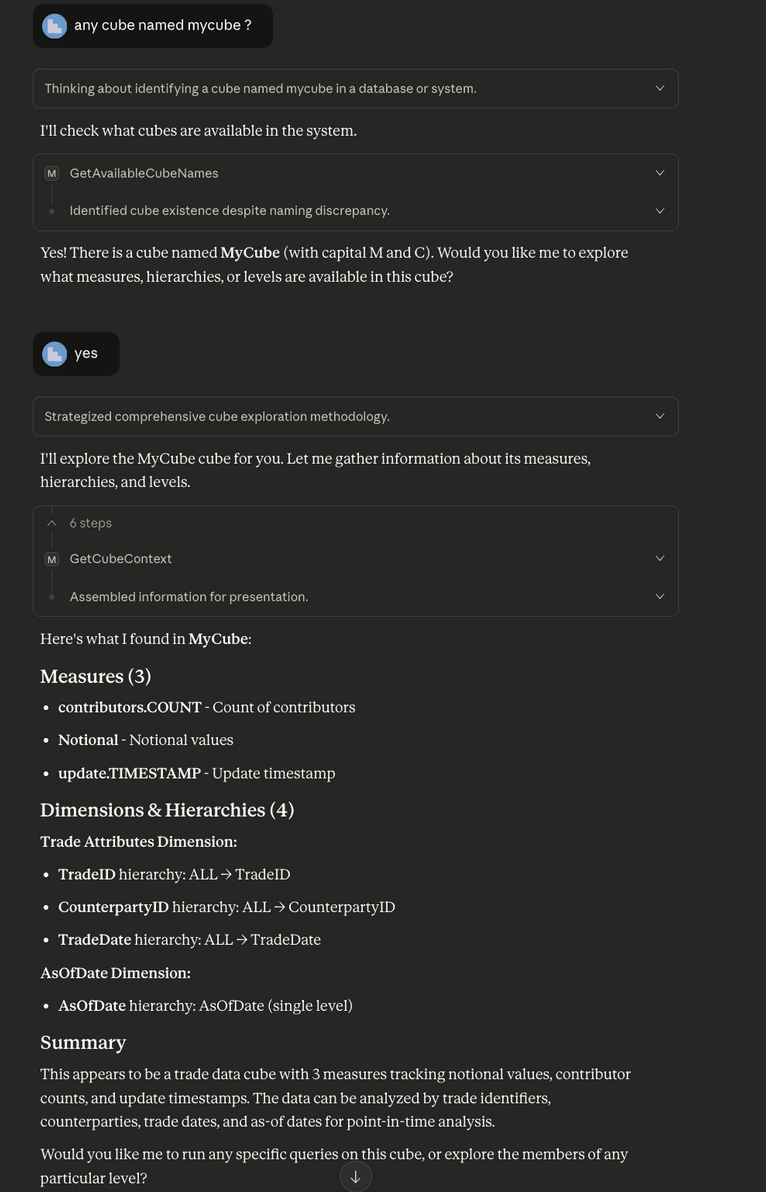

Claude Answer 1

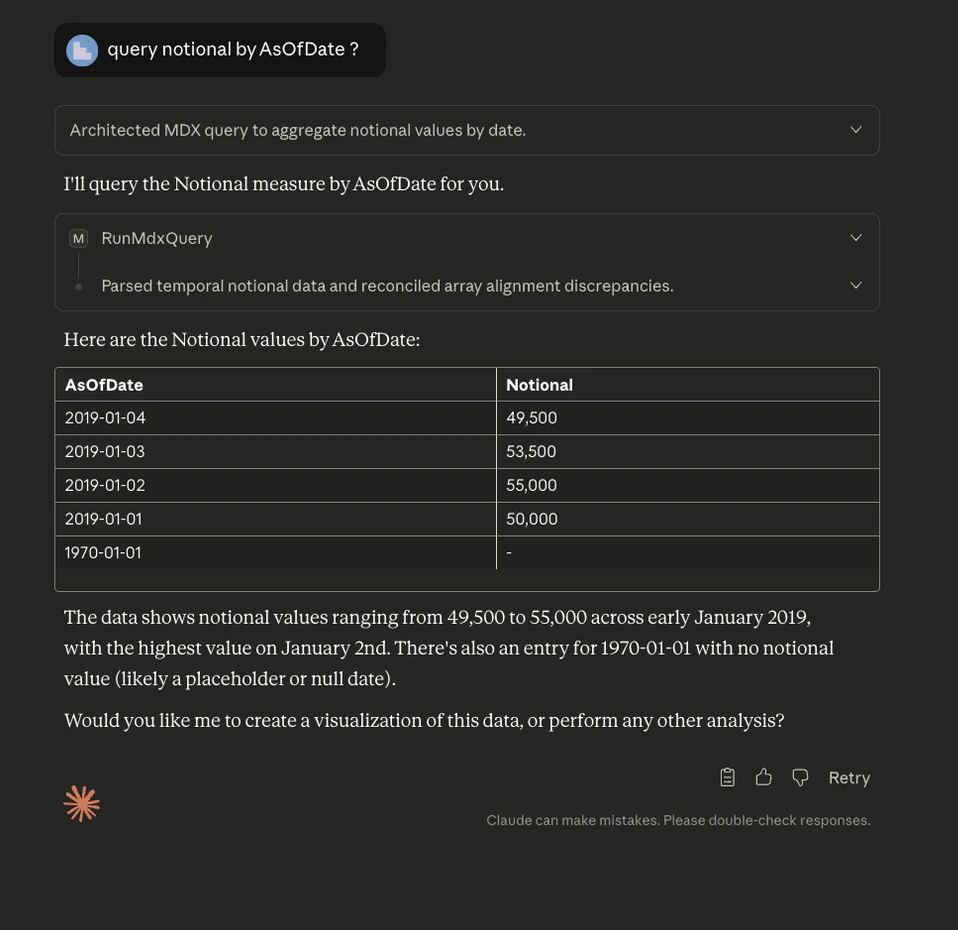

Claude Answer 2

​
Troubleshooting

If Claude does not discover the tools, check the following:
  • The Atoti application is running and accessible
  • The MCP server endpoint is available at the configured URL
  • The passkey is correctly formatted and encoded
  • The Claude Desktop configuration file is valid JSON
After connecting Claude, explore additional capabilities:
