Trade Scaling

Atoti ISDA-SIMM provides scaling simulations to display instant recalculations of and incremental impact from simulated adjustments to a given trade or set of trades.

Scaling factor options

You can select an existing trade and modify its size to measure the impact of increasing or partially or completely closing down a position.

Scaling factor	Impact on trade
> 1	Adjusts the trade up
< 1	Adjusts the trade down
negative	Inverts the trade risk profile
zero (0)	Closes down the position entirely

Select the TradeId you want to work on. This can be from any pivot table that has the TradeId dimension. Right-click and select Scale Trade. The Scale trades dialog box is displayed. Fill in the following information:

Field	Description
TradeID	The ID of the selected Trade(s).
Title	A short caption describing the meaning of the trade scale task.
ScaleFactor	The factor by which to multiply the underlying trade. See Scaling factor options.
Branch	The name of the branch on which to save the scaling result. If the branch does not exist, a new branch will be created.
Duplicate	Check this checkbox if you want to duplicate the trade and scale its copy. Since the new duplicated trade is a completely new trade, it is only contained in the new branch and does not appear on the master branch.
Suffix	When copying the trade, you can specify the suffix to be added to the copy’s name.

Click Submit. In the Pivot table, if the Epoch dimension is selected, the new branch you created is displayed adjacent to the master. The new branch contains the same data as the master branch except for the selected trade, which is adjusted by the scaling you applied.
To manage your branches and the simulations on them, use the WhatIf Manager.

Example

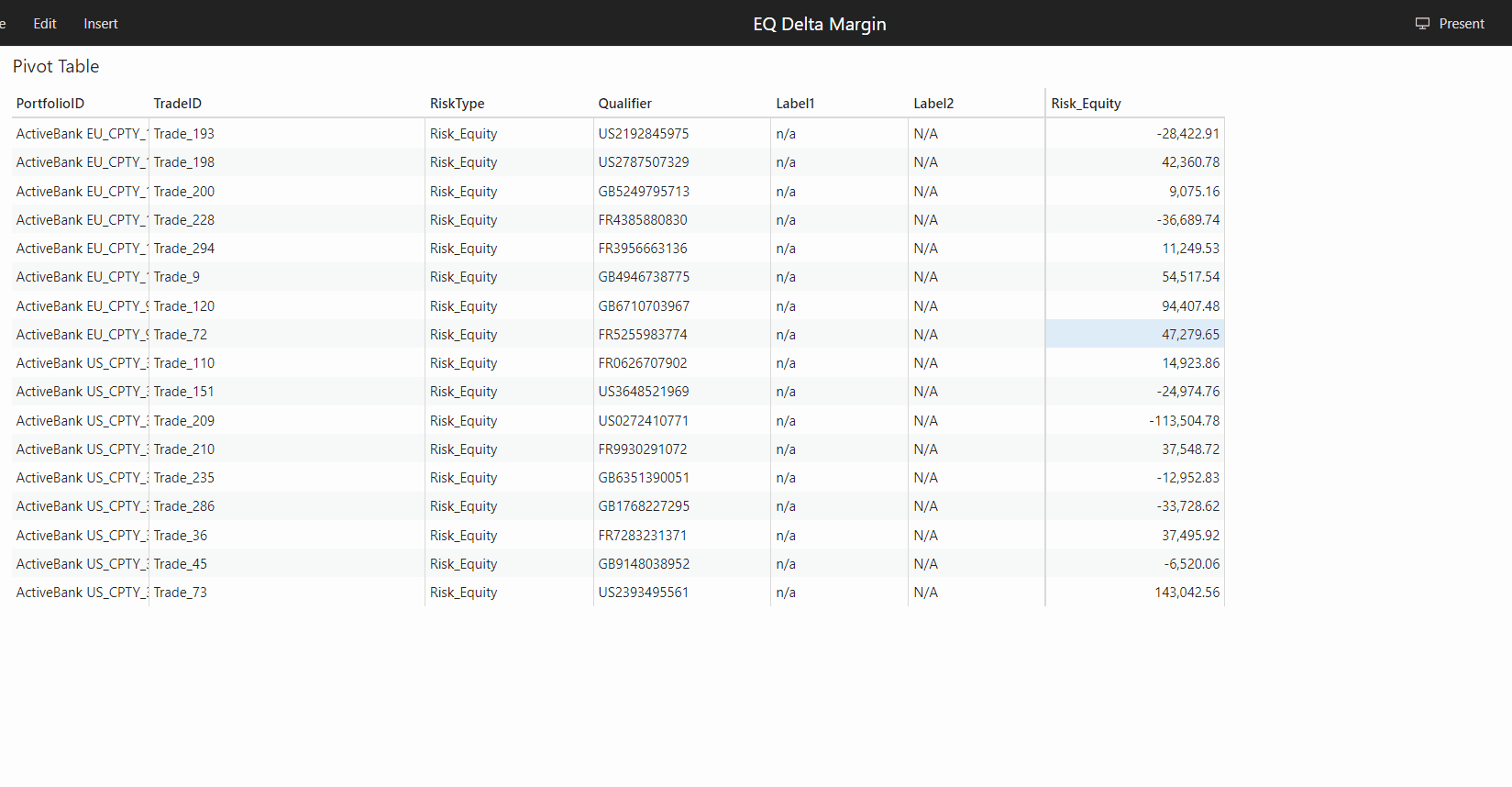

Here’s an example of scaling a trade:
