The Sign-Off Analysis Hierarchy reflects the parameters of the Sign-off process managed by the Sign-off server.
Analysis Hierarchy content
The Analysis hierarchy is three levels deep. The hierarchy is slicing, meaning it has no ALL Member level. By default, the selected level is [INTRA-DAY].
| Level | Depth | Description | Members |
|---|
| Feed | 1 | How the data are updated | INTRA-DAY: the default member, the whole cube data at the latest value.
TOTAL REVIEWABLE: the whole data with frozen perimeters under review. |
| Status | 2 | The current sign-off task status | For example, “UNAPPROVED” |
| Task | 3 | The unique sign-off task name | For example: “Sensi BSM::2018-09-28” |
The hierarchy depth depends on the information to display. The member [INTRA-DAY] has no deeper level. Additionally, the path [TOTAL REVIEWABLE].[UNAPPROVED] has no level 3.
Example

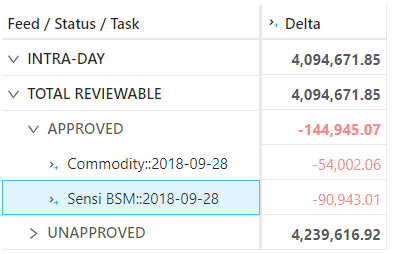

Here is an example of the Analysis Hierarchy structure:
| Feed / Status / Task | Sample Measure | Comment |
|---|
| INTRA-DAY | 16.2 | Default member, it displays the latest content of the cube |
| TOTAL REVIEWABLE | 16.0 | Sign-off view, the data belonging to an initiated sign-off task is frozen |
| > APPROVED | 3.0 | A specific status in the sign-off process, the level aggregates all the tasks with the same status |
| > > Commodity::2018-09-28 | 1.0 | A sign-off task with the “APPROVED” status |
| > > Sensi BSM::2018-09-28 | 2.0 | Another sign-off task with the “APPROVED” status |
| > INITIATED | 4.0 | A specific status in the sign-off process, the level aggregates all the tasks with the same status |
| > > Bonds::2018-09-28 | 4.0 | A sign-off task with the “INITIATED” status |
| > UNAPPROVED | 9.0 | Default status of the perimeter not yet included in a sign-off process. It uses the latest cube data |
Setup
You can customize the analysis hierarchy using the configuration files.
| Key | Value | Description |
|---|
| mr.sign-off.module.cubeName-adjustments.feed-level | Feed@Sign-off Status@Sign-off Status | Name and path of the analysis hierarchy’s level 1 |
| mr.sign-off.module.cubeName-adjustments.status-level | Status@Sign-off Status@Sign-off Status | Name and path of the analysis hierarchy’s level 2 |
| mr.sign-off.module.cubeName-adjustments.task-level | Task@Sign-off Status@Sign-off Status | Name and path of the analysis hierarchy’s level 3 |
| mr.sign-off.common.hierarchy.* | INTRA-DAY,TOTAL REVIEWABLE,UNAPPROVED | Names of the level members generated by the cube itself, the other names come from the sign-off server |
| mr.sign-off.cubeId.levels | AsOfDate@Date@Dates,Book@Books@Booking,Desk@Desks@Booking | Levels eligible to be in a sign-off task perimeter |
Sign-off task perimeter
The analysis hierarchy uses a side store to describe the perimeter for a given sign-off task. The eligible levels for task filtering are defined by the property “sign-off.cubeId.levels” for each cube.
The defined levels must be a standard level associated with a store field and not an analysis hierarchy level.
All non-empty criteria for the levels will generate a filtered location with the following pattern:
WHERE ([dimension1].[hierarchy1].[level1].[filter1], [dimension2].[hierarchy2].[level2].[filter2], …)
Sign-off task store
The data linked to a sign-off task are stored in a specific store per cube.
| CubeName | Main store | Sign-off store | cubeId |
|---|
| VaR-ES Cube | TradePnLs | TradePnLsSignOff | var |
| Sensitivity Cube | TradeSensitivities | TradeSensitivitiesSignOff | sensi |
| PLCube | PnL | PnLSignOff | pnl |
The sign-off store is created dynamically from the list of filterable levels and has the following format:
| Field | Type | Key | Description |
|---|
| Name | string | X | Sign-off task name |
| Status | string | | Current sign-off status |
| hierarchy name 1 | computed | | Holds the content of the 1st filter, the column name is the hierarchy name of the filtered level, and the type is computed from the base store |
| hierarchy name 2 | computed | | Holds the content of the 2nd filter |
| … | … | | … |
| hierarchy name n | computed | | Holds the content of the last filter |
The [_Version] hierarchy
To support the snapshotting feature, the cube now includes a specific single-level hierarchy named “_Version”. It is a technical, hidden hierarchy. This
hierarchy is attached to a primary key that allows the system to duplicate the fact and create a snapshot. By default, the _Version equals LIVE, but in snapshotting,
the snapshot version is OLD and the incoming version is NEW.
| Feed / Status | _Version / LIVE | _Version / OLD | _Version / NEW |
|---|
| INTRA-DAY | X | | X |
| TOTAL REVIEWABLE | X | X | |
| > APPROVED | X | X | |
| > INITIATED | X | X | |
| > UNAPPROVED | X | | |
ETL
The _Version field, linked to the [_Version] hierarchy must be filled with the correct value. The ETL achieves this with the following logic:
Does the input line belong to a task perimeter?
- No : Set the _Version field to LIVE
- Yes :
- Set the _Version field to NEW
- Update any existing line _Version field to OLD
Main store modifications
To generate the [_Version] hierarchy, an extra key field named _Version is added to the base store of the cube.
Discarding a sign-off task
When a sign-off task is discarded, all the lines tagged OLD inside the perimeter are deleted and the ones tagged NEW are re-tagged as LIVE.
REST service
The sign-off store is never updated from the default ETL but via REST service. The REST service is intended to be called by the sign-off server. It is located at the URL
http://localhost:10010/mr-application/services/rest/v3/sign-off.
and provides three main services:
- createSignOffTask: create a new sign-off task on the cube.
- updateState: update the status of a sign-off task
- discardSignOffTask: remove the sign-off task
Technical configuration
| Class | Kind | Usage |
|---|
| SignOffAnalysisConfig | Spring configuration | Abstract configuration, when implemented it activates the analysis hierarchy on a specific cube |
| PnLSignOffAnalysisConfig | Spring configuration | Analysis hierarchy for Pnl cube |
| SensiSignOffAnalysisConfig | Spring configuration | Analysis hierarchy for Sensi cube |
| VarSignOffAnalysisConfig | Spring configuration | Analysis hierarchy for VaR cube |
| SignOffTaskConfig | Spring configuration | Analysis hierarchy for all the cubes within the ecosystem |
| SignOffAnalysisHierarchy | Analysis Hierarchy | Post-processor that builds the members of the Sign-off analysis hierarchy |
| SignOffAggregationProcedure | Aggregation Procedure | Post-processor that re-buckets the facts to the relevant members of the analysis hierarchy |
| SignOffDatastoreSchemaDescriptionPostProcessor | Schema Description Post-Processor | Post-processor that modifies the datastore schema to add the sign-off store and the main store index |
| SignOffRestService | REST service | The sign-off REST service |
| SignOffDto | DTO | The DTO used by the REST service to modify the sign-off tasks |
| SignOffTaskFinder | Bean | Provides the lookup functionality to find any sign-off task linked to a perimeter. It is used by the aggregation procedure and the tuple publisher |
| SignOffTuplePublisherFactory | Tuple Publisher | Bean that provides the tuple publisher instances for the main stores to compute the _Version field in the ETL |
