How to use Tableau Adapter

This feature is experimental, and requires this option to be enabled
-Dactiveviam.feature.experimental.atoti_sql_server.enabled=true.

How to activate the Atoti Tableau Adapter

To activate the Atoti Tableau Adapter you need to follow these steps:

1. Add the SQL Bridge artifact to your project

Include the following dependency in your pom.xml file:

<dependency>
    <groupId>com.activeviam.activepivot</groupId>
    <artifactId>activepivot-server-sql-bridge</artifactId>
    <version>${project.version}</version>
</dependency>

2. Choose an appropriate listening port

By default, the server listens for SQL queries on port 5432. This port number can be modified by setting the atoti.server.sql-bridge.port property of your Atoti application.

How to connect Tableau to Atoti

This guide explains how to connect Tableau (Desktop or Cloud) to an Atoti server using the PostgreSQL JDBC driver. Only User/Password authentication is supported.

What you need before starting

To connect Tableau to Atoti, ensure the following prerequisites are met:

PostgreSQL JDBC driver: Required for Tableau Desktop. The 42.7.7 version of the driver is the only one guaranteed to work with Atoti. This version may be upgraded in any bugfix release. However, if you have tested a more recent version and it does not work, please open a support ticket.
Atoti server configuration: The Tableau adapter needs to be activated on the server

Connection steps

Tableau Desktop
Tableau Cloud

Follow these steps to connect Tableau Desktop to an Atoti server:

Open Tableau Desktop and create a new file.

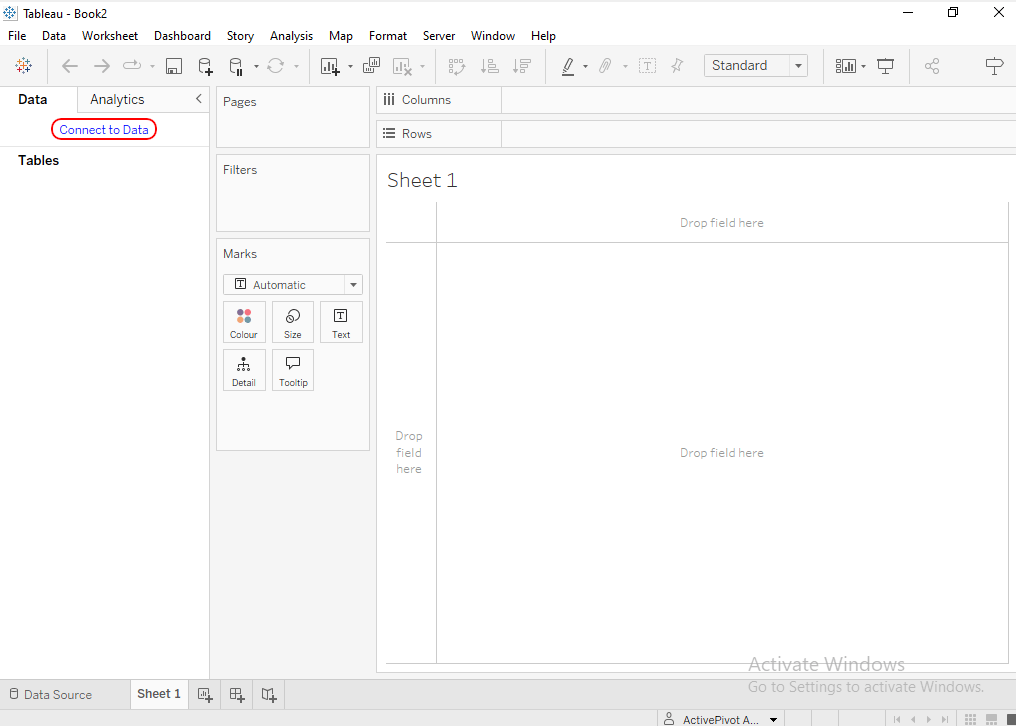

Click Connect to Data in the upper-left corner.

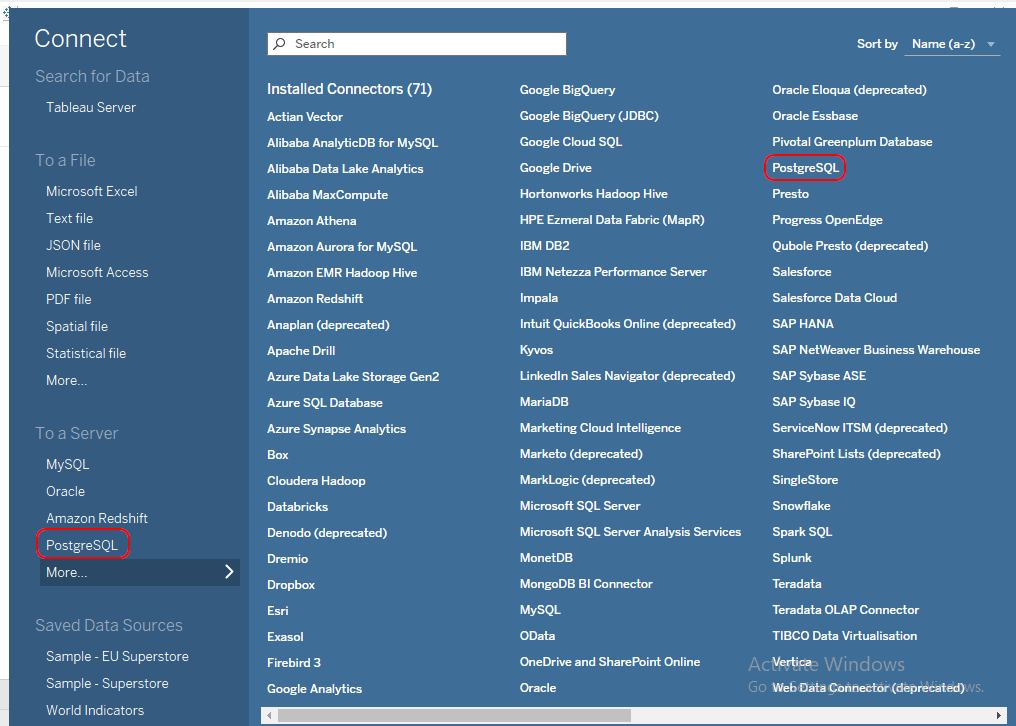

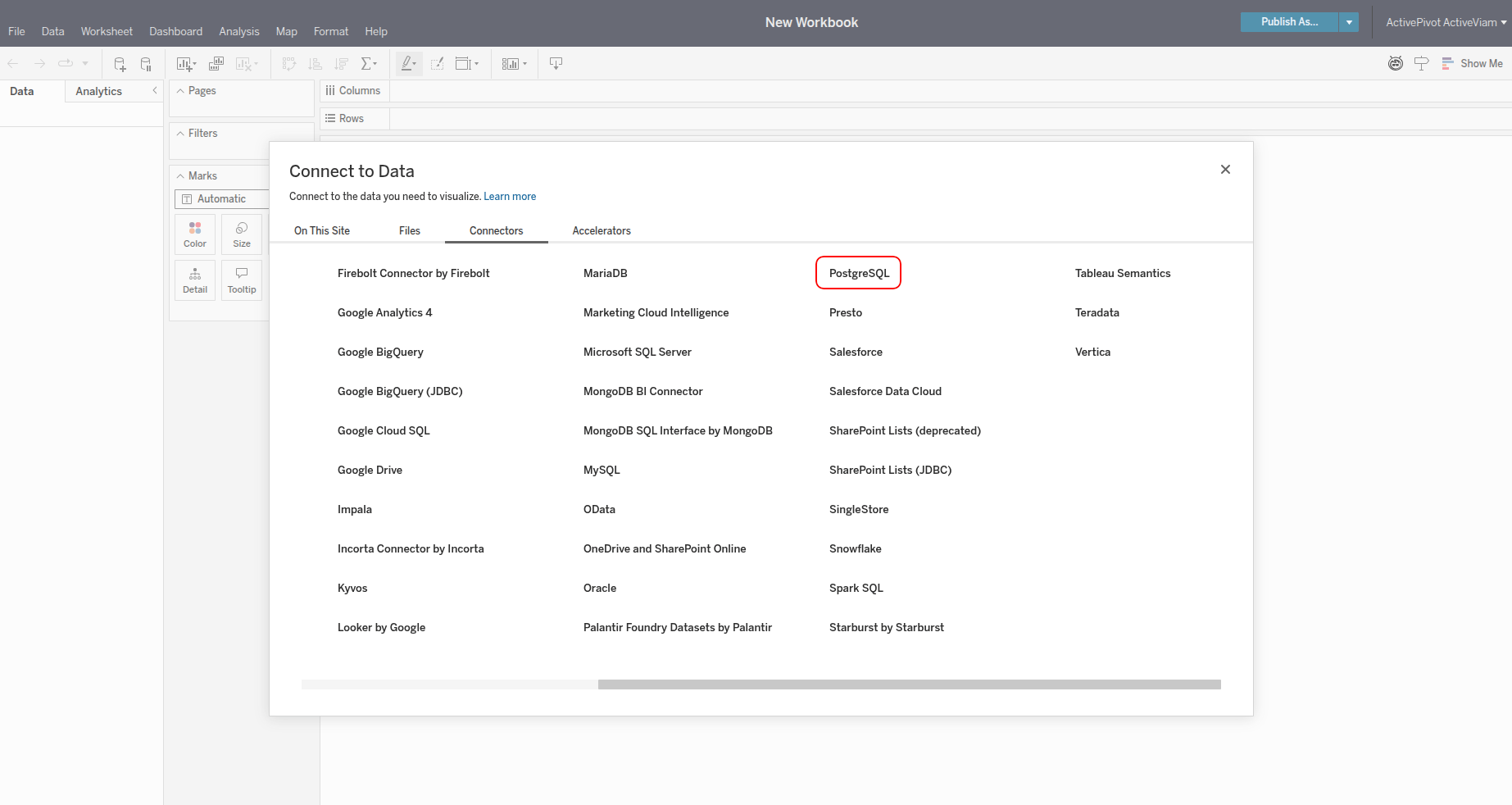

From the list of connectors, select PostgreSQL.

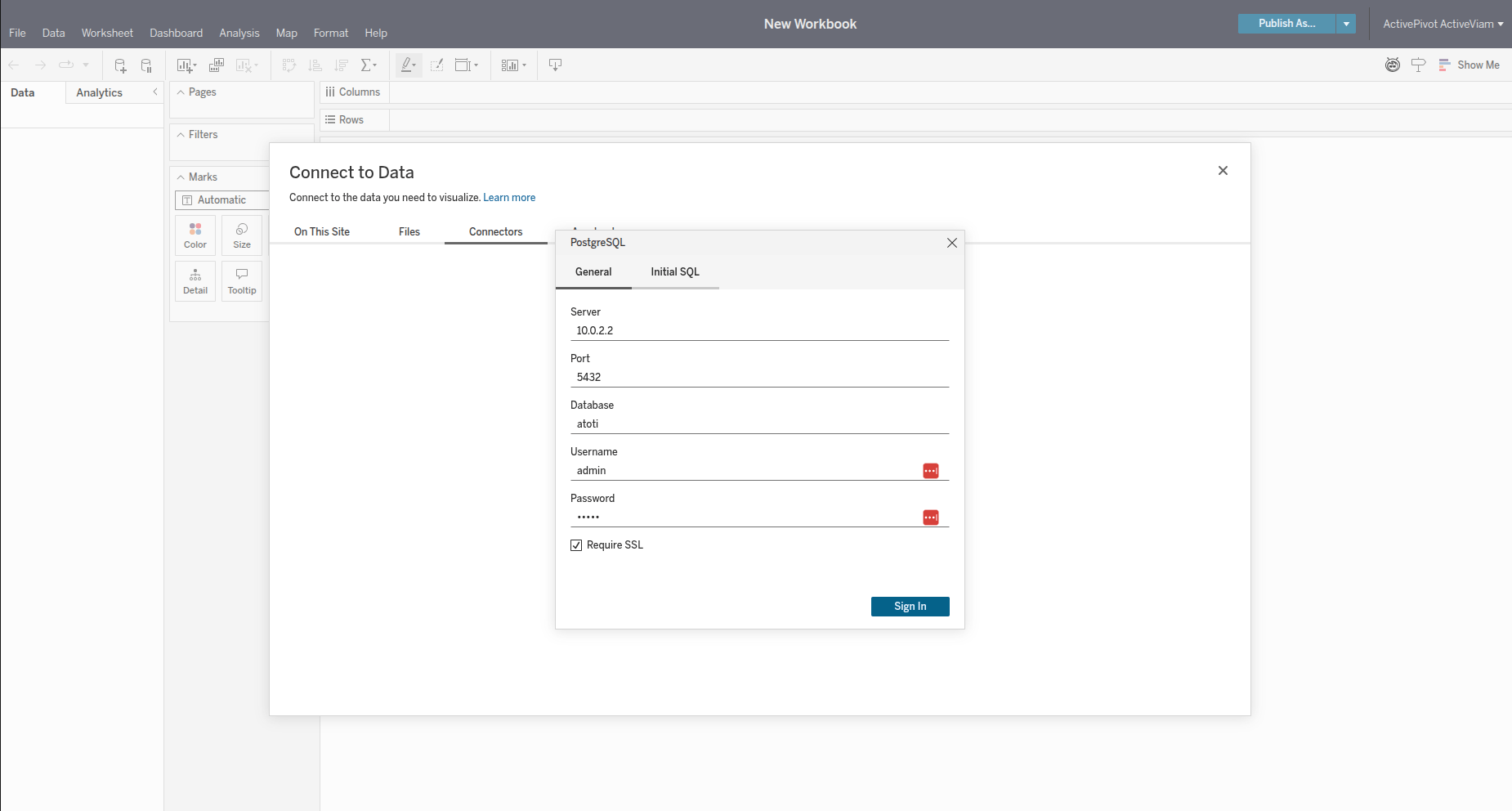

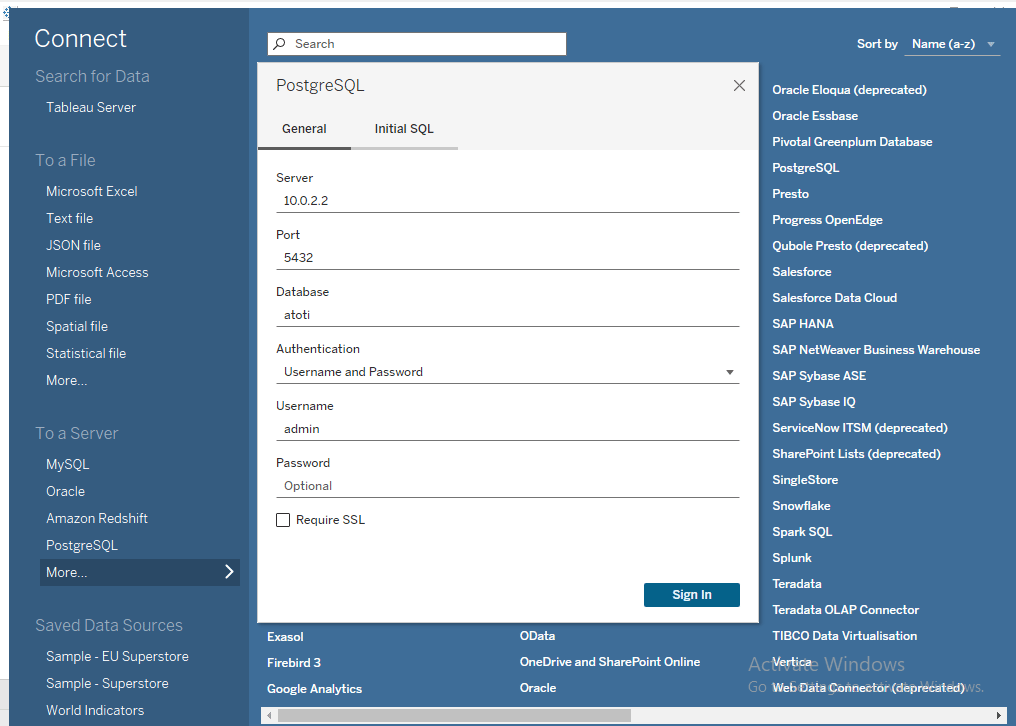

Fill in the required connection details:
- Address: IP address of the Atoti server.
- Port: Port used by the PostgreSQL wire protocol (default is 5432). If changed, refer to the atoti.server.sql-bridge.port property of your Atoti application.
- Database: Always set to atoti.
- Authentication: Choose your preferred authentication method.
Click Connect to establish the connection.
