Query service logging

Atoti Server can emit a per-query report log at the end of each query. The report includes the query description, result description, completion time, and optionally memory statistics. Logging is disabled by default for all three query services. Each service has its own property and logger.

​
What properties control query service logging

PropertyServiceLoggerDefault
atoti.server.query.service.loggingQueriesatoti.server.query.servicefalse
atoti.server.query.service.detailed-loggingQueriesatoti.server.query.servicefalse
atoti.server.query.service.log-memory-statsQueriesatoti.server.query.servicefalse
atoti.server.query.service.json.loggingJSON Queriesatoti.server.query.service.jsonfalse
atoti.server.query.service.json.detailed-loggingJSON Queriesatoti.server.query.service.jsonfalse
atoti.server.query.service.json.log-memory-statsJSON Queriesatoti.server.query.service.jsonfalse
atoti.server.query.service.streaming.loggingStreaming Queriesatoti.server.query.service.streamingfalse
atoti.server.query.service.streaming.detailed-loggingStreaming Queriesatoti.server.query.service.streamingfalse
atoti.server.query.service.streaming.log-memory-statsStreaming Queriesatoti.server.query.service.streamingfalse
The three properties for each service are independent:
  • logging enables the basic per-query report.
  • detailed-logging adds extra query details to the report.
  • log-memory-stats adds memory usage statistics to the report.

​
How to toggle query service logging at runtime

You can toggle each service’s logging at runtime via JMX without restarting the server. Three MBeans are available:
  • QueriesServiceLogging — controls the Queries service.
  • JsonQueriesServiceLogging — controls the JSON Queries service.
  • StreamingQueriesServiceLogging — controls the Streaming Queries service.

​
What are the additional query loggers

The three services above expose their logging via Spring Boot properties. There are additional query-related plain loggers that do not have those property toggles. Control their level with the standard logging.level configuration in your application.properties or application.yml.
LoggerSourceDescription
atoti.server.query.service.xmlaAXmlaMonitorXMLA endpoint queries.
atoti.server.query.service.exportDataExportRestServiceControllerData export requests.
atoti.server.query.service.websocketQueryWebSocketEndPointWebSocket query requests. Logs the WEB_SOCKET_REQUEST_START and WEB_SOCKET_REQUEST_STOP events.

​
Setting limits for Query Results

Controlling the size of GetAggregatesQuery queries can be very handy when there is a need to limit the number of resulting locations. A typical example is the possibility to control big queries hitting a cluster at a data node level, allowing thus to limit / reduce the traffic when using distribution. It can also act as a safeguard to prevent queries from consuming too much memory.

​
Configurable limits on Query Results

Limiting queries results can be achieved using the IQueriesResultLimit context value. We distinguish two types of limit:
  • intermediateLimit: It defines the limit number of point locations for a single intermediate result (i.e. retrieval).
  • transientLimit: It defines the transient limit resulting from the accumulation of all the intermediate results within a single query.
Note that the default transient and intermediate result limit amount to 100,000 and 1,000,000 point locations respectively, and can be obtained by calling QueriesResultLimit#defaultLimit().
Query results limit property can be enabled through Atoti context values,
pivot.getContext().set(IQueriesResultLimit.class, QueriesResultLimit.defaultLimit());
or in the cube description
StartBuilding.cube("tweets")
    .withSingleLevelDimensions("sender_id")
    .withDimension("time")
    .withHierarchy("time")
    .withLevel("year")
    .withLevel("month")
    .withLevel("day")
    .withSharedContextValue(QueriesResultLimit.withLimit(10_000, 1_000_000))

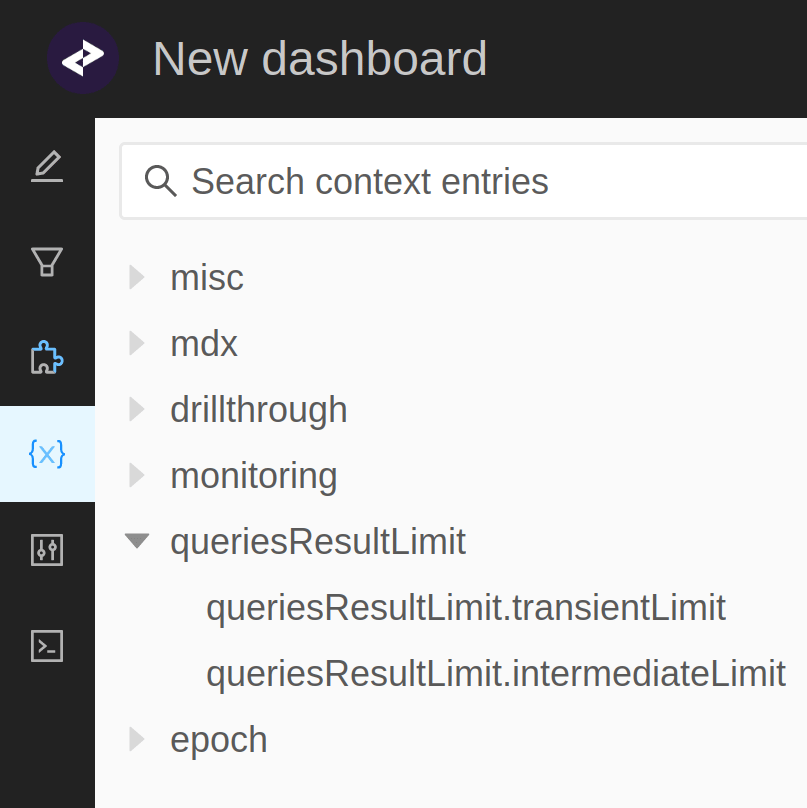

or through query context values
Not defining a limit for queries is equivalent to using QueriesResultLimit#withoutLimit().
Exceeding the configured limit will result in a RetrievalResultSizeException, aborting the execution of all operations involved in the query.

​
Miscellaneous

When setting a limit for queries results, there is a couple of points to keep in mind:
  • Intermediate queries results may exceed the configured limit even though the final result does not. A typical example is a copper join including factless points that will be removed from the final result.
  • In a distributed setup, if a data node exceeds the configured limit then the initial query will fail (partial results from other data nodes won’t be accounted for).
  • In a distributed polymorphic setup, expect the replication to produce additional locations and in some cases introduce points without underlying contribution.
