Atoti Limits supports custom roles and permissions to manage access to the Limits cube and the limits and incidents users can view. This page describes how to configure data access permissions for roles in Atoti Limits.
The roles referred to in this section should be defined in the properties of Atoti Limits, but users expected to have the roles will need to have these roles assigned to them in both Atoti Limits and the Atoti server. We recommend that you place your security configurations in one module, then depend on that module in both Atoti Limits and the Atoti server.

​
Prerequisite: define roles

Before configuring the permissions, ensure all users and roles have been defined in Atoti Limits. While it is possible, we strongly advise against configuring permissions for the predefined roles included with Atoti Limits. These roles control basic access to features of the module and will be shared by many users. Instead, define custom roles based on your business needs and assign them to users as required.
Users can be assigned multiple data access roles, and the data they can access will be the intersection of the permissions granted by each role. For example, if ROLE_A grants access to group = Group 1 and ROLE_B grants access to scope = Book=Book 1, a user with both roles will only be able to see limits with group = Group 1 and scope = Book=Book 1.
Once you have defined some roles, you can configure the permissions for each role.

​
Configure permissions

Atoti Limits uses configuration properties to define the permissions for each role. You can configure these properties in the application.yml file, and they are available in the application via the LimitsRolePermissionsConfigurationProperties class. If defined, the application will use these properties to filter the data that users can access. Atoti Limits supports restricting access based on the following fields:
FieldSub property name
Groupstructure-groups
Structure Namestructure-names
Structure IDstructure-ids
Measurestructure-measures
Limit IDlimit-ids
Scope Levelscopes.level
Scope Membersscopes.members

​
Property structure

The configuration is stored in a nested map structure. The top-level keys are server names, which let you define separate permissions for different servers. The second-level keys are the role names, each mapping to a set of lists that define the member values available to the role. Generic example:
limits:
  data-access-control:
    SERVER_NAME_1: # Define a separate set of permissions for each server as needed
      role-permissions:
        ROLE_EXAMPLE_1: # Define separate permissions for each role in the server
          structure-groups:
            - group1
            - group2
          structure-measures:
            - PnL

​
Choose fields

Deciding which fields to use for restricting access will depend on your business requirements and data model. For example, let’s say you have all Equity-related limits under the Equity Desk group, and you want users with role ROLE_EQUITY_DESK to only see these limits and the incidents associated with them. In this case, you could configure the role to have a value defined for the structure-groups field. Here’s an example of this configuration:
limits:
  data-access-control:
    MyServer:
      role-permissions:
        ROLE_EQUITY_DESK:
          structure-groups:
            - Equity Desk
When choosing which fields to use, it is also important to consider the relationship between the fields and how your data is structured. The fields offer different levels of granularity for restricting access, and it is only necessary to define members for the most granular fields that you want access to be restricted on. This is because granting access to a member of one field will implicitly grant access to linked members of all other fields. For example, say you have a limit with the following values:
  • Group: MyGroup
  • Structure Name: MyStructure
  • Measure: MyMeasure
  • Structure ID: structure_1
  • Limit ID: limit_1
Defining a role with limit-ids: [limit_1] is the most granular way to grant access to this limit only. If this is the only limit in the structure, the same result can be achieved with structure-ids: [structure_1] or structure-names: [MyStructure], but the role will have access to any limits that may be added to the structure in the future. Another reason to always use the most granular field(s) possible is that the values can conflict if not configured correctly, resulting in unexpected behavior. Building on the example above, in addition to the limit-ids value, say you configure the role with structure-ids: [structure_2]. This will not result in the role having access to both limit_1 and all limits in structure_2, but rather no access at all. Instead, you should use the more granular of the two fields, limit-ids, and list limit_1 plus the IDs of the limits in structure_2.

​
Scopes

Scopes are configured slightly different from the other fields. Whereas the other fields are defined as lists of values, the scopes are defined as a level value, a list of members, and a matchMode. The members list is optional, and if not defined, the role will have access to scopes for all members at the specified level. If members are present for a level, the role will have access to the scopes for the members listed that are:
  • EQUALS (=) or TOTAL_EQUALS (&=) AND
  • Simple scope (single member) OR
  • Advanced scope (multiple members) and all members are included in the permission properties
NOT_EQUALS (<>) and TOTAL_NOT_EQUALS (&<>) scopes are not supported in the permission properties. If your organization has limits with exclusive scopes, please use a field other than scope to control access to these limits.
For example, the following configuration grants role ROLE_3_BOOK_SCOPE access to three member values on the Book level:
limits:
  data-access-control:
    MyServer:
      role-permissions:
        ROLE_3_BOOK_SCOPE:
          scopes:
          - level: Book
            members:
              - Book 1
              - Book 2
              - Book 3
Match mode
The optional matchMode property lets you specify the way scopes are matched based on the configured member values. The following modes are available:
ModeDescription
MATCH_ALLThe scopes filtered on will contain all configured member values, and only those member values. This is the default and most restrictive mode.
MATCH_ANYThe scopes filtered on will contain any individual or combination of the configured member values, and only those member values.
CONTAINS_ALLThe scopes filtered on will contain all configured member values, but may also contain levels and members that are not in the configuration.
CONTAINS_ANYThe scopes filtered on will contain at least one of the configured member values, but may also contain levels and members that are not in the configuration. This is the least restrictive mode.
Let’s take a look at how the matchMode property affects the scopes that are accessible to users. First, we’ll log in to the application as a user with no restrictions so we can see all the scopes in the cube:

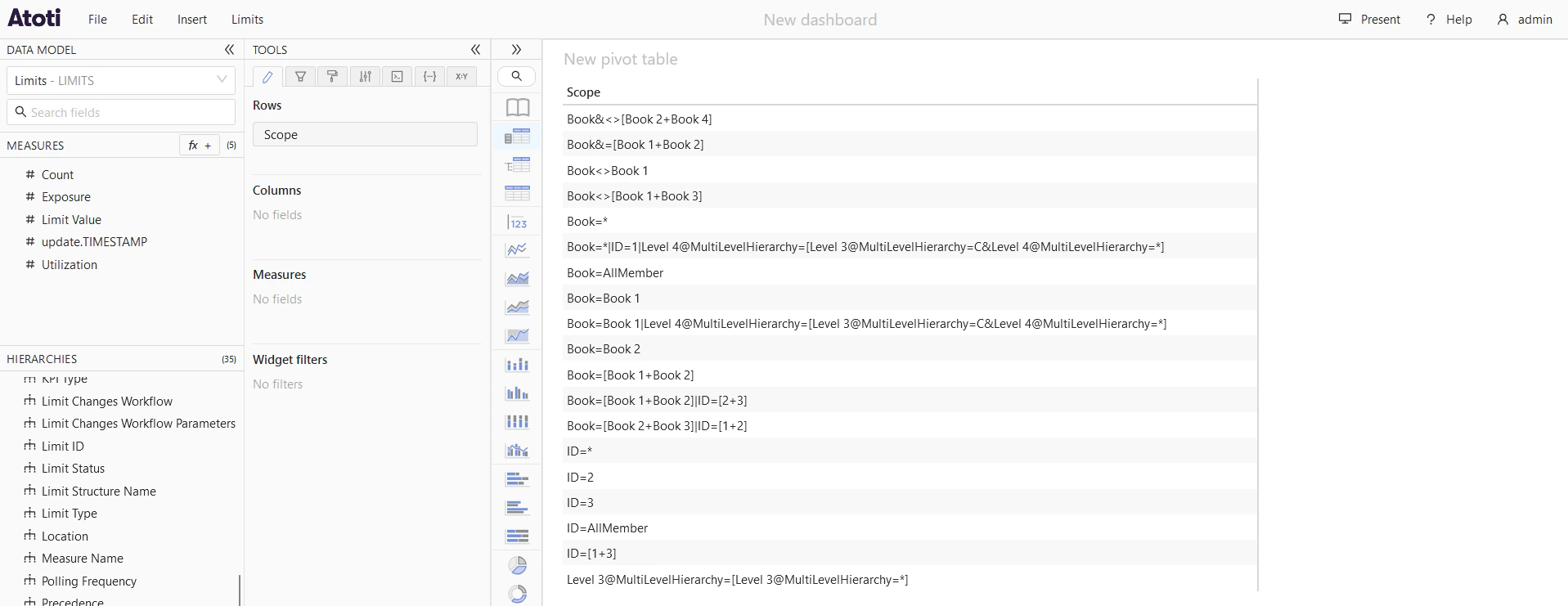

All Scopes - Cube
And all the inventory available to this user based on those scopes:

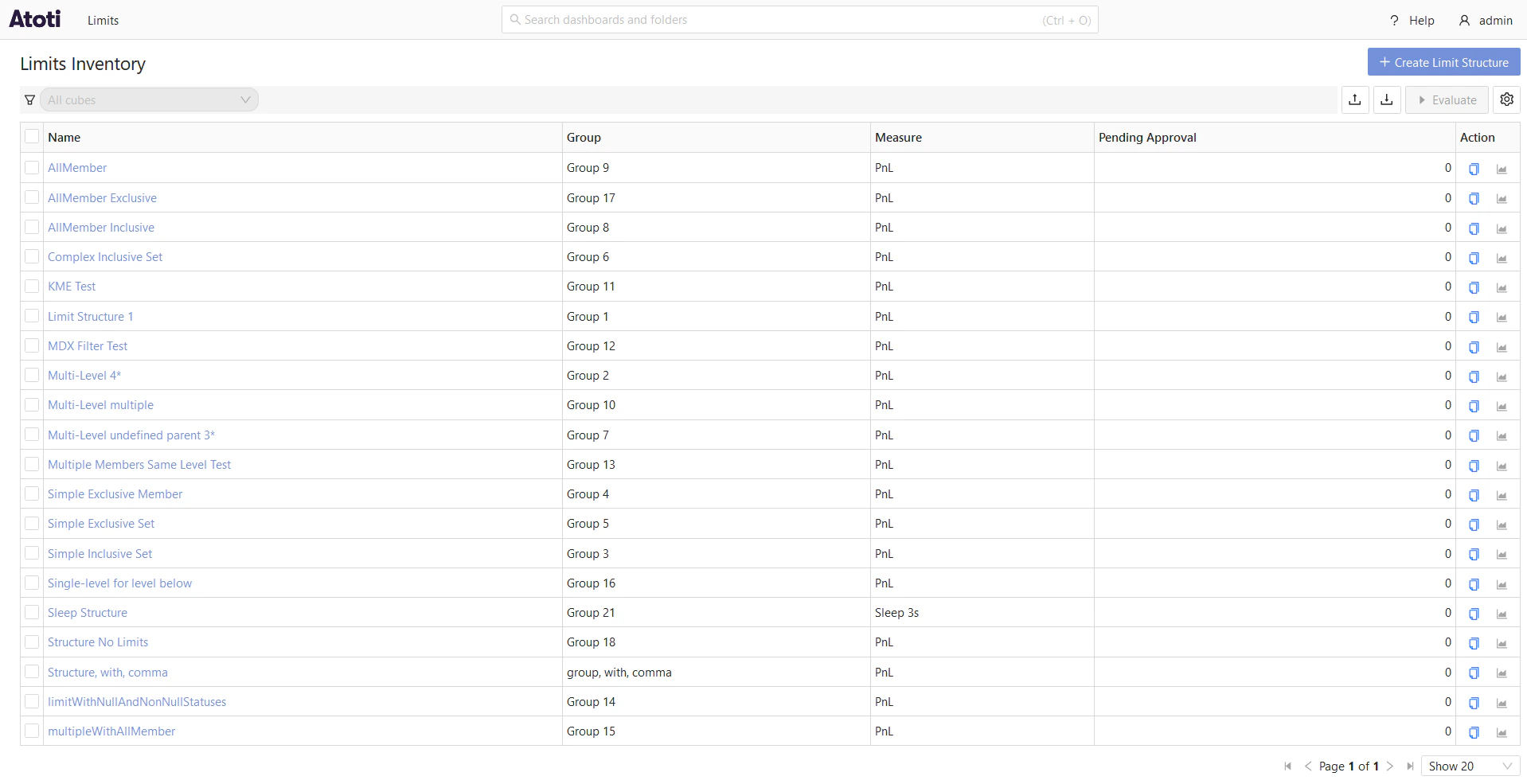

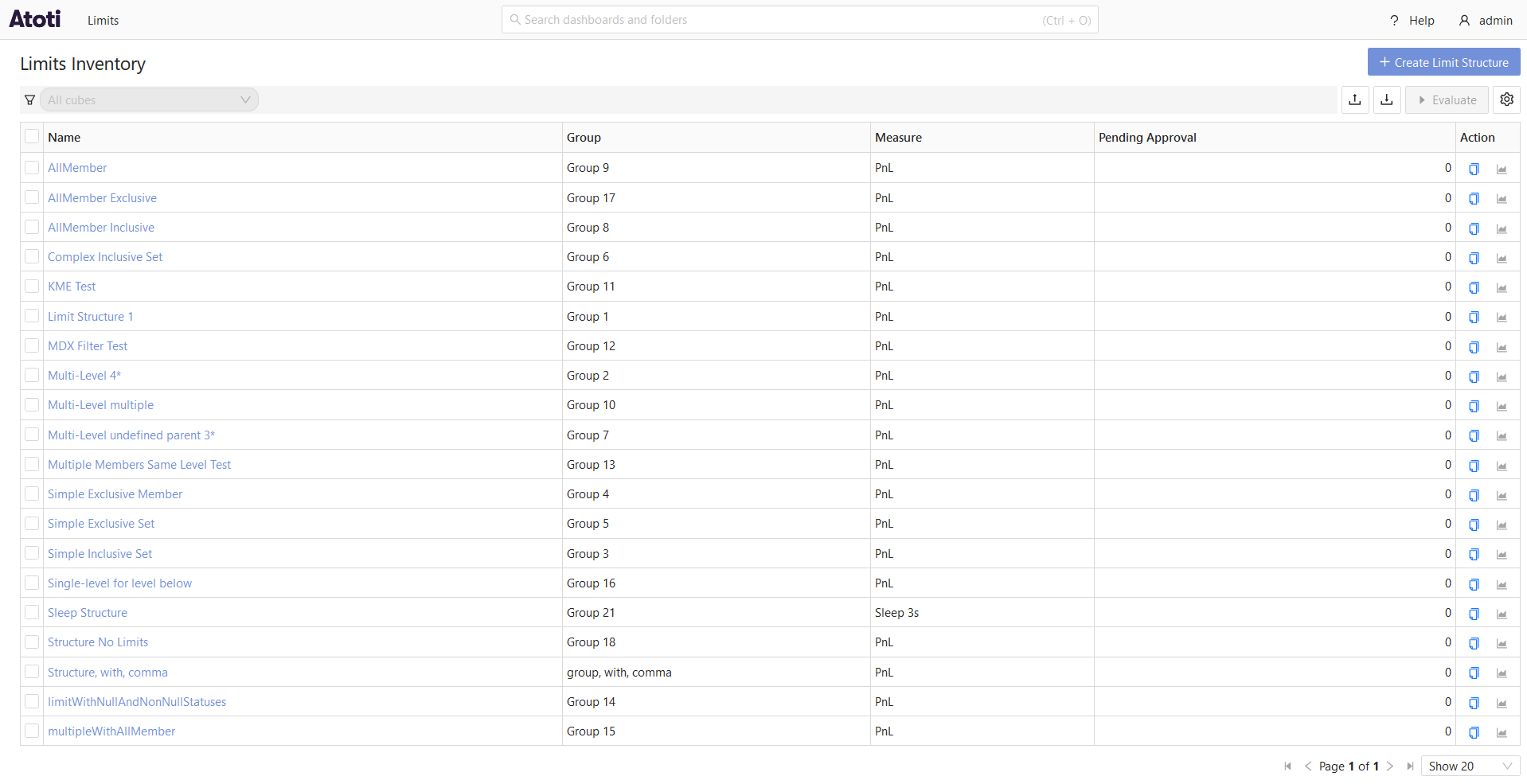

All Scopes - Inventory
matchMode: MATCH_ALL (default)
Next, we’ll configure a role with the following permissions:
limits:
  data-access-control:
    MyServer:
      role-permissions:
        ROLE_BOOK_1_2_SCOPE:
          scopes:
          - level: Book
            members:
              - Book 1
              - Book 2
We assign this role to restrictedUser and log in to the application to see the scopes available to this user:

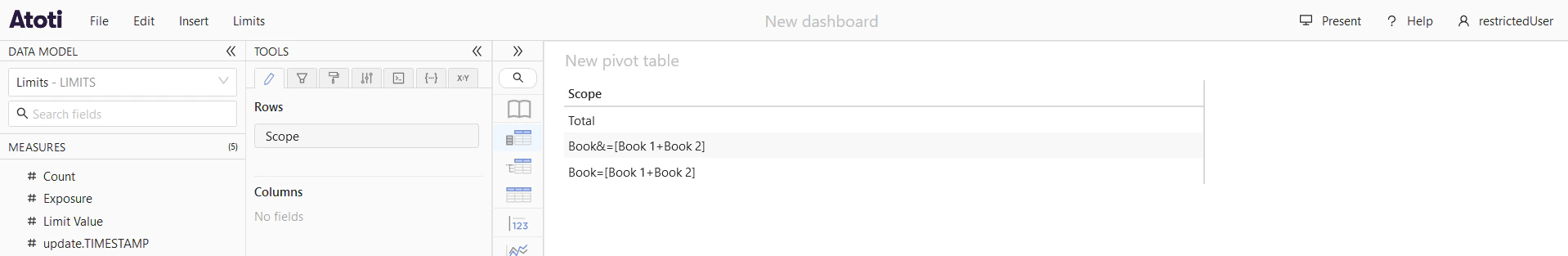

Match All - Cube
And the inventory available to this user based on those scopes:

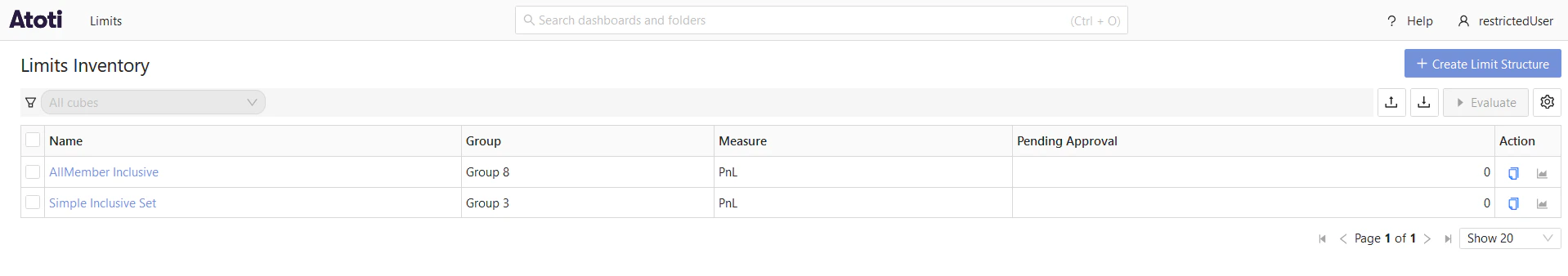

Match All - Inventory
matchMode: MATCH_ANY
Next, we’ll update the configuration to set matchMode to MATCH_ANY:
limits:
  data-access-control:
    MyServer:
      role-permissions:
        ROLE_BOOK_1_2_SCOPE:
          scopes:
          - match-mode: MATCH_ANY
            level: Book
            members:
              - Book 1
              - Book 2
We assign this role to restrictedUser and log in to the application to see the scopes available to this user:

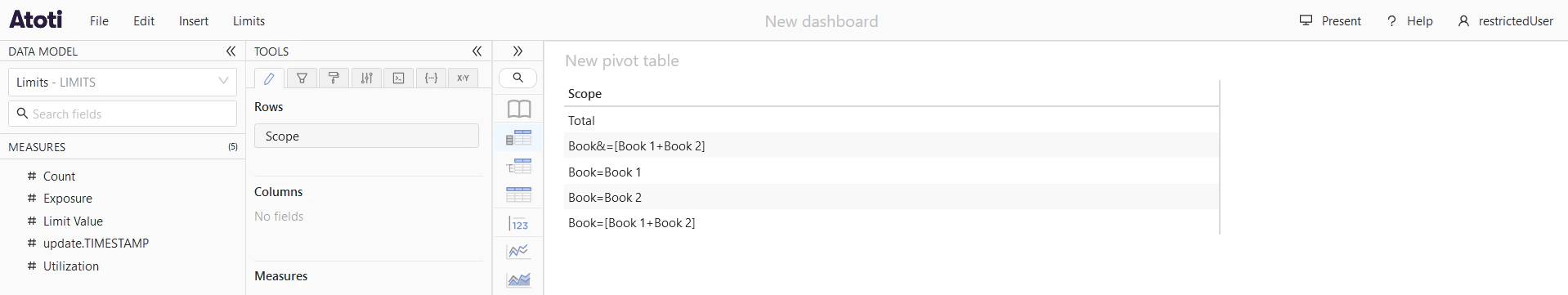

Match Any - Cube
And the inventory available to this user based on those scopes:

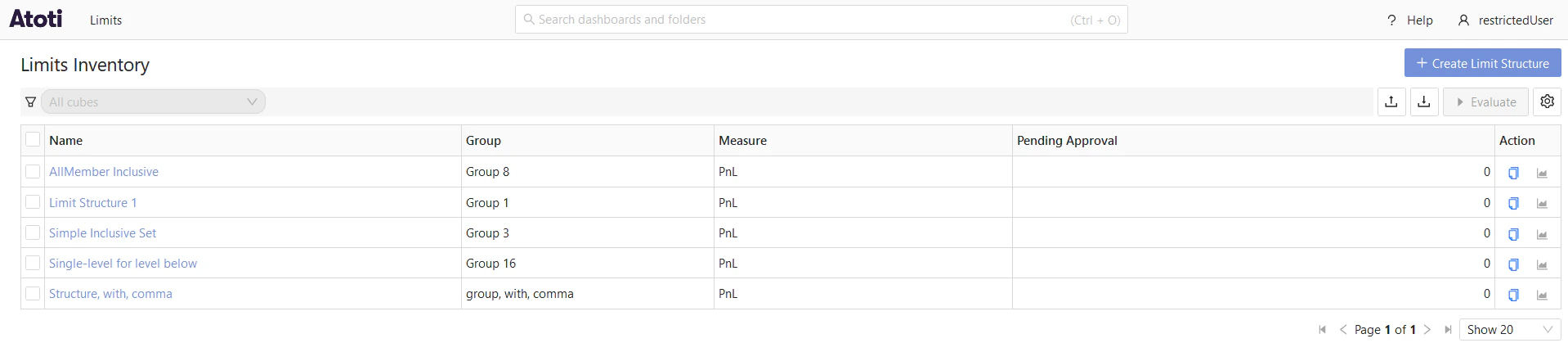

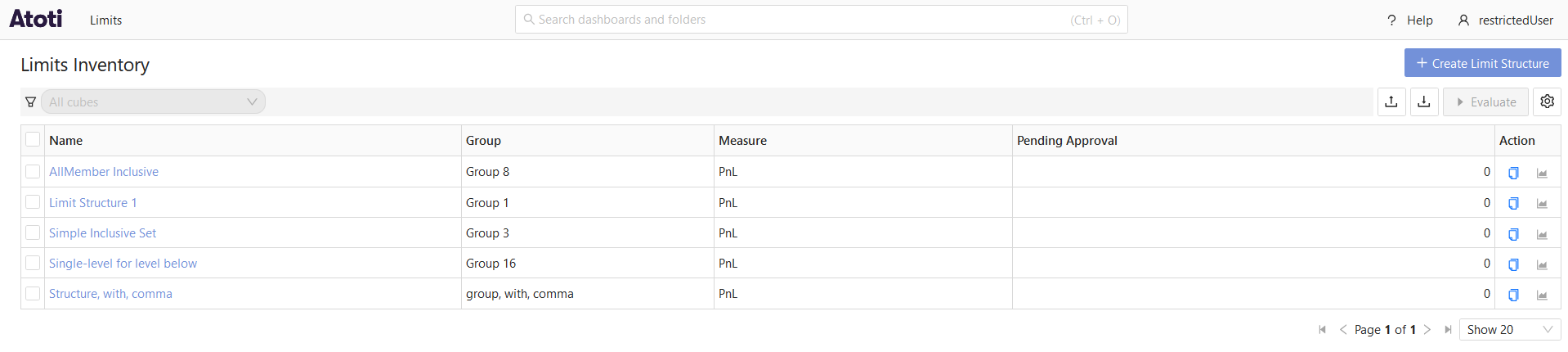

Match Any - Inventory
matchMode: CONTAINS_ALL
Next, we’ll update the configuration to set matchMode to CONTAINS_ALL:
limits:
  data-access-control:
    MyServer:
      role-permissions:
        ROLE_BOOK_1_2_SCOPE:
          scopes:
          - match-mode: CONTAINS_ALL
            level: Book
            members:
              - Book 1
              - Book 2
We assign this role to restrictedUser and log in to the application to see the scopes available to this user:

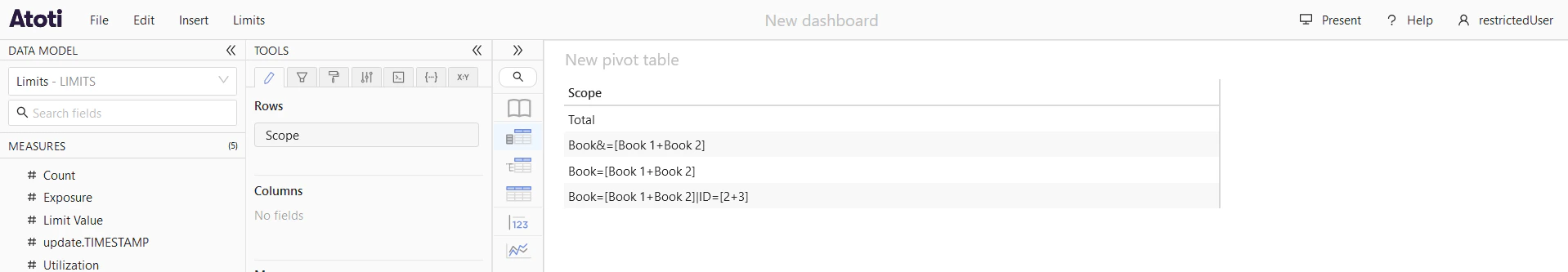

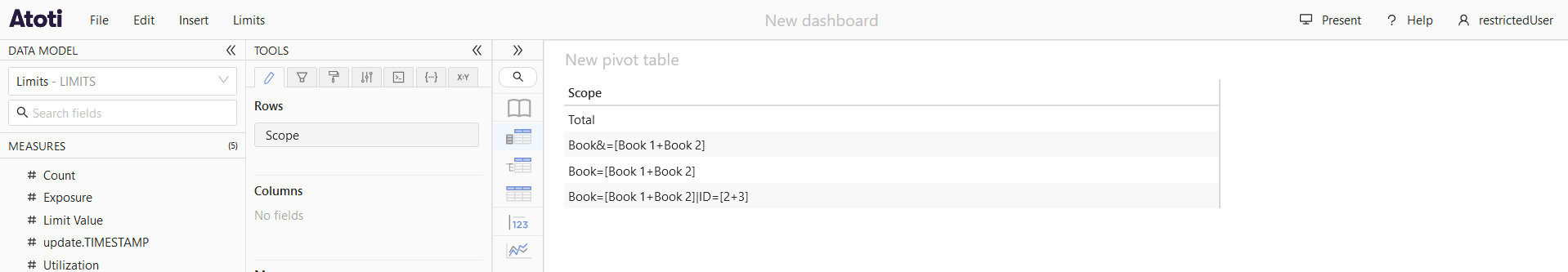

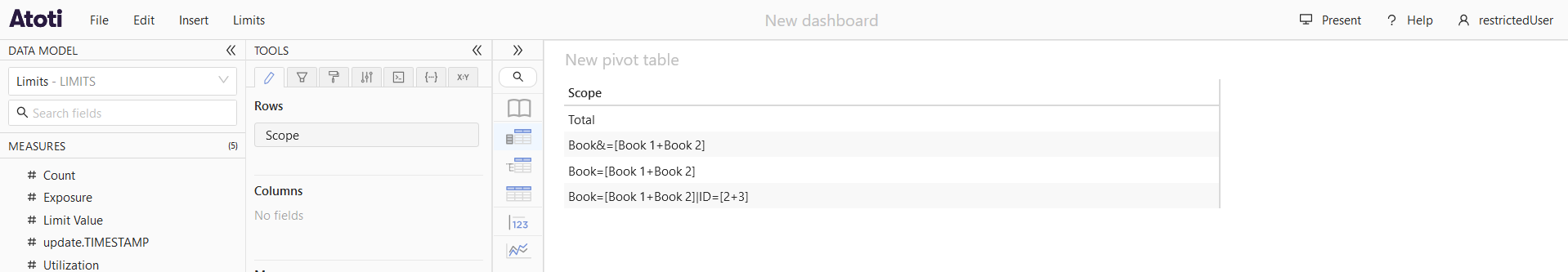

Contains All - Cube
And the inventory available to this user based on those scopes:

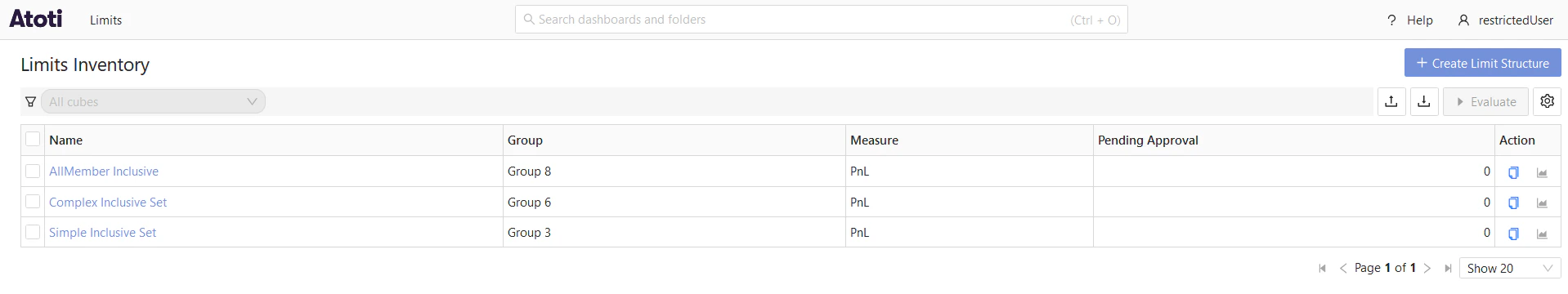

Contains All - Inventory
matchMode: CONTAINS_ANY
Next, we’ll update the configuration to set matchMode to CONTAINS_ANY:
limits:
  data-access-control:
    MyServer:
      role-permissions:
        ROLE_BOOK_1_2_SCOPE:
          scopes:
          - match-mode: CONTAINS_ANY
            level: Book
            members:
              - Book 1
              - Book 2
We assign this role to restrictedUser and log in to the application to see the scopes available to this user:

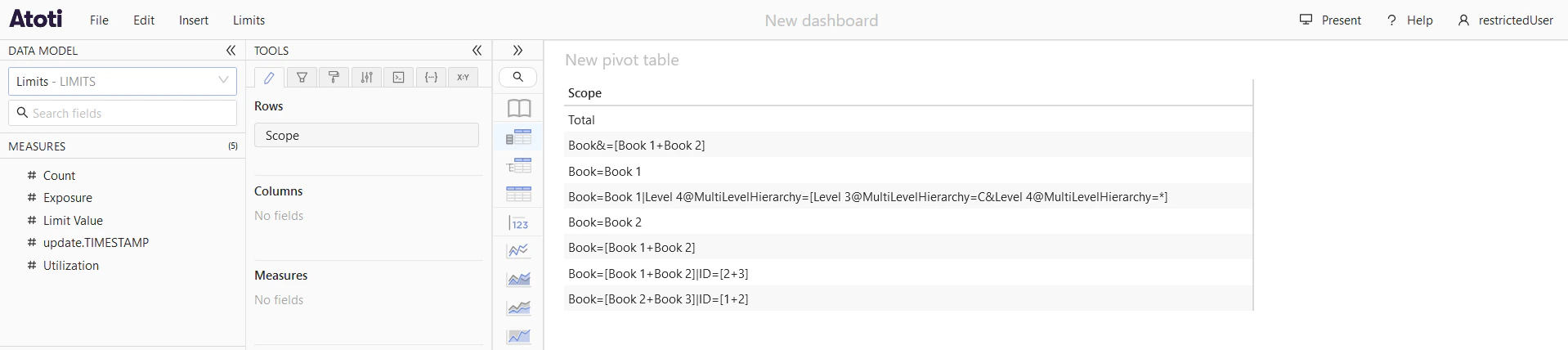

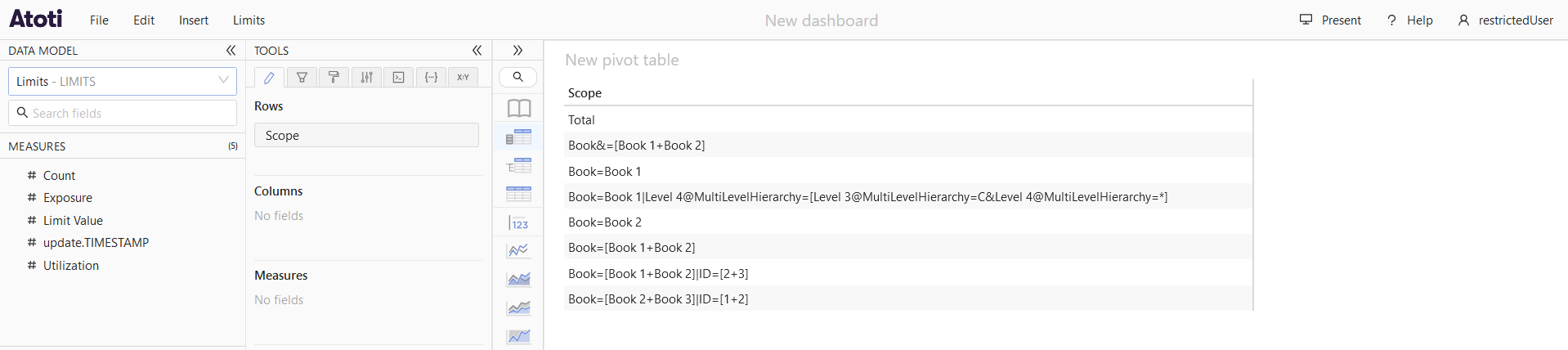

Contains Any - Cube
And the inventory available to this user based on those scopes:

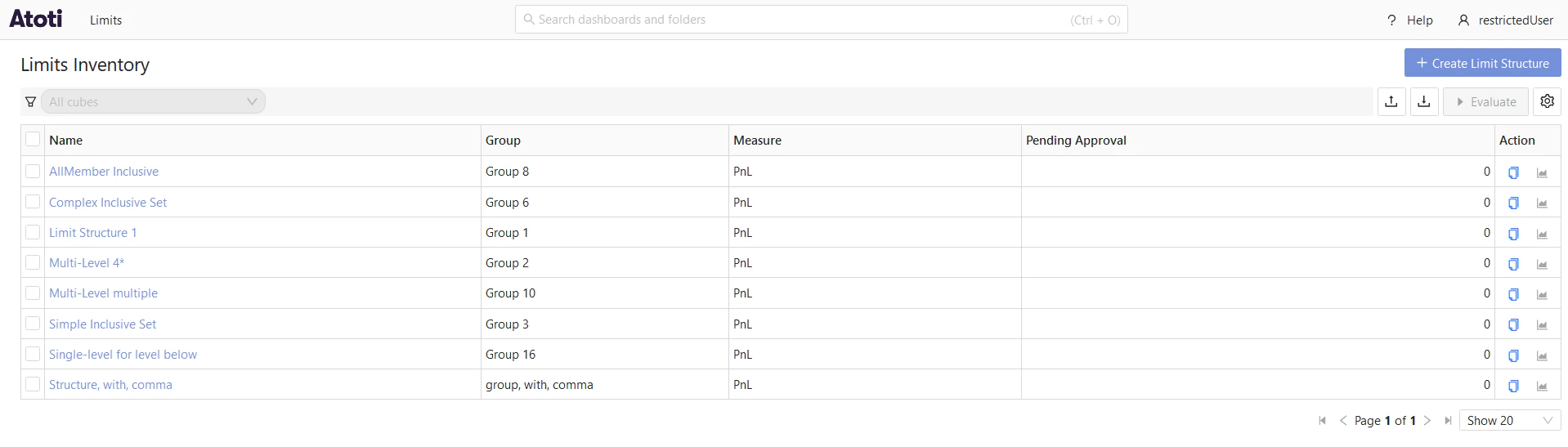

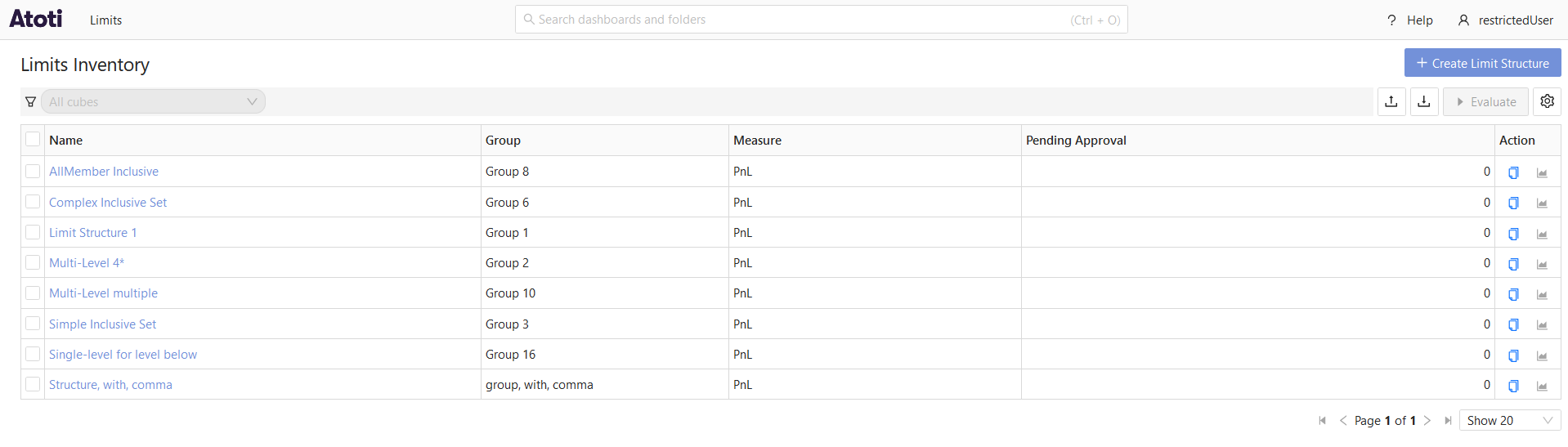

Contains Any - Inventory

​
Multiple levels

If multiple levels are configured with member values in the permission properties, only member values configured with the same matchMode will be considered together when filtering the scopes. For example, consider the following configuration:
limits:
  data-access-control:
    MyServer:
      role-permissions:
        ROLE_BOOK_1_ID_1_SCOPE:
          scopes:
          - level: Book
            members:
              - Book 1
          - level: ID
            members:
              - ID 1
Both levels are configured with the default matchMode of MATCH_ALL. Since they share the same matchMode, the role will only have access to scopes that match both Book 1 and ID 1 (i.e. Book=Book 1|ID=1). If you change the matchMode for the ID level to CONTAINS_ALL, the role will then have access to scopes that either match Book 1 or contain ID 1 (i.e. Book=Book 1, ID=1, Desk=Equities|ID=1).

​
Apply the permissions

The permissions configured in application.yml are automatically applied to the Limits cube when viewed in Atoti UI, as well as to the Inventory and Status screens. The permissions are also applied to the KPIs and related calculated members in the business cube, ensuring that users only see data that they have permission to access. Assign these roles to users the same way as any other role in Atoti Limits. To control access to the KPIs and calculated members created by Atoti Limits in the business cube, configure users with the same role(s) in the business server configuration as well.
Atoti Limits creates each KPI and calculated member with a default set of owners and readers based on the limits.autoconfiguration.content-server.limits-created-measures-owners property. This property should be auto-configured based on the owner of the kpi folder in the content server, which you can override if needed. Any user with that role will have access to all KPIs and calculated members, regardless of any other permissions. Unless you have a specific reason to do so, users with a data access role should not also be given the role from limits-created-measures-owners, as this will allow them to see KPIs and calculated members for data they can’t see in Atoti Limits.

​
Example

The following screenshots show the data available to 2 different users in the application: admin who does not have any data restrictions, and restrictedUser, who has been configured to only have access to limits within the group Group 1. Configuration:
limits:
  data-access-control:
    servers:
      ConnectedAcc:
        role-permissions:
          ROLE_RESTRICTED_USER:
            structure-groups:
              - Group 1

​
admin:

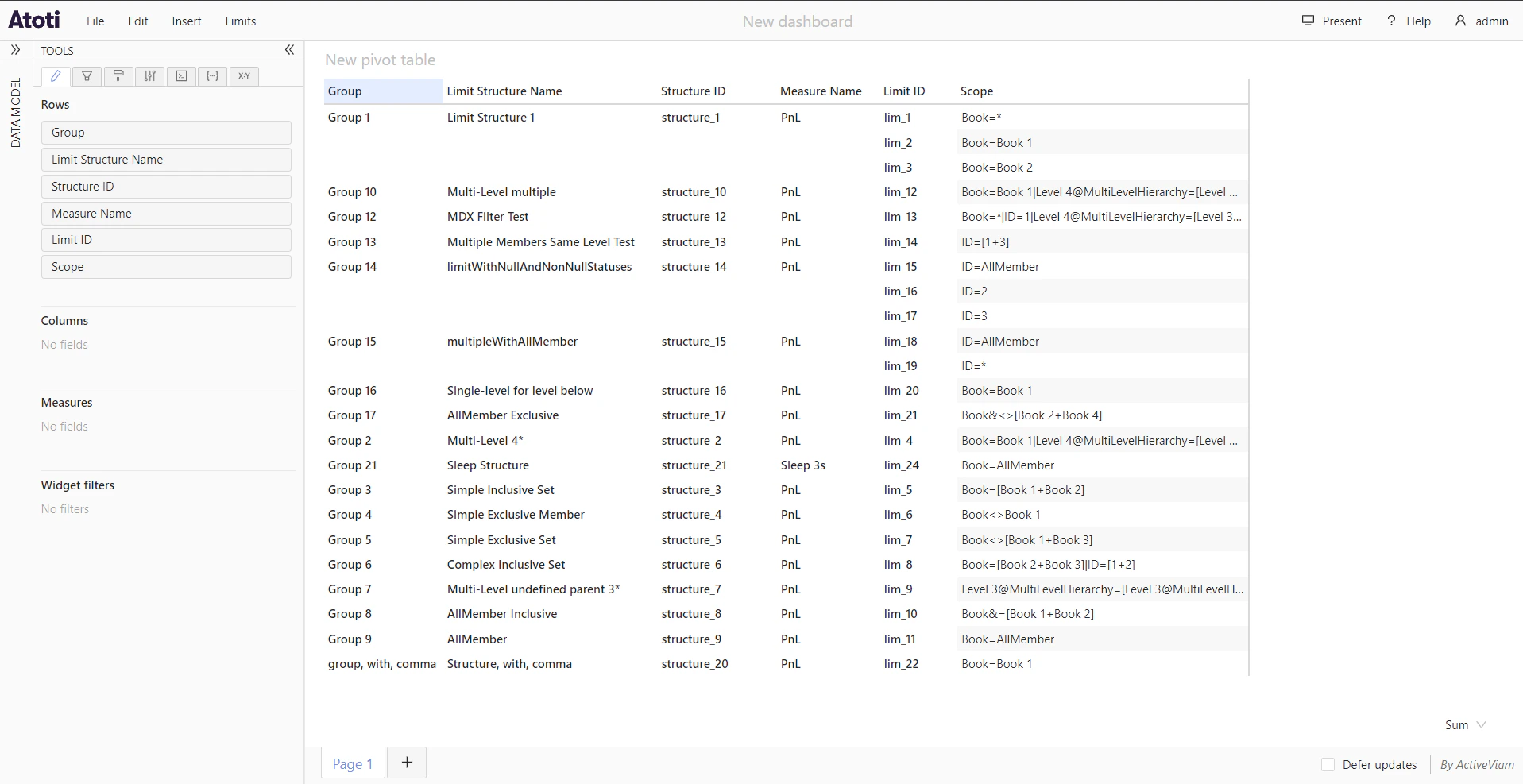

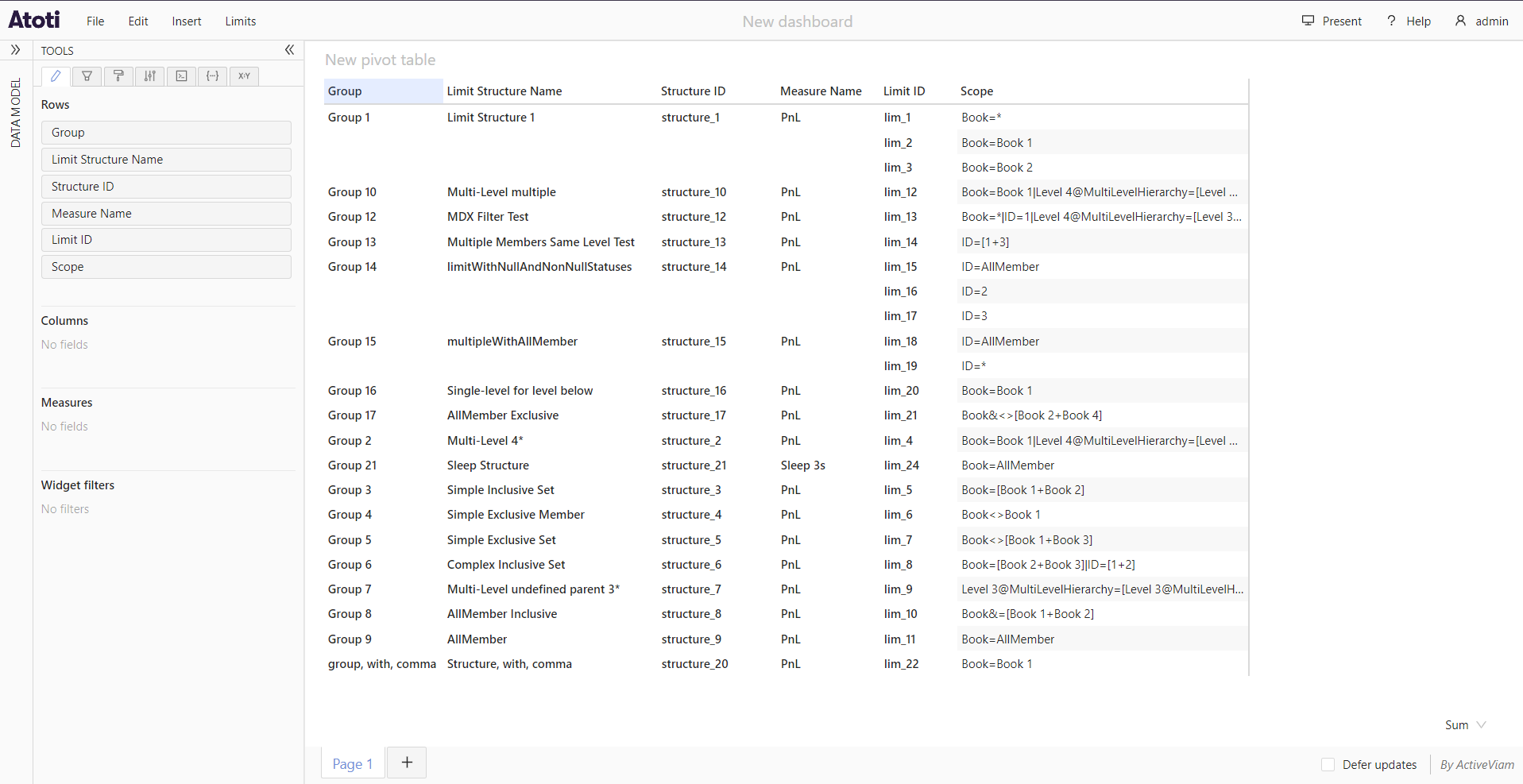

Admin cube view

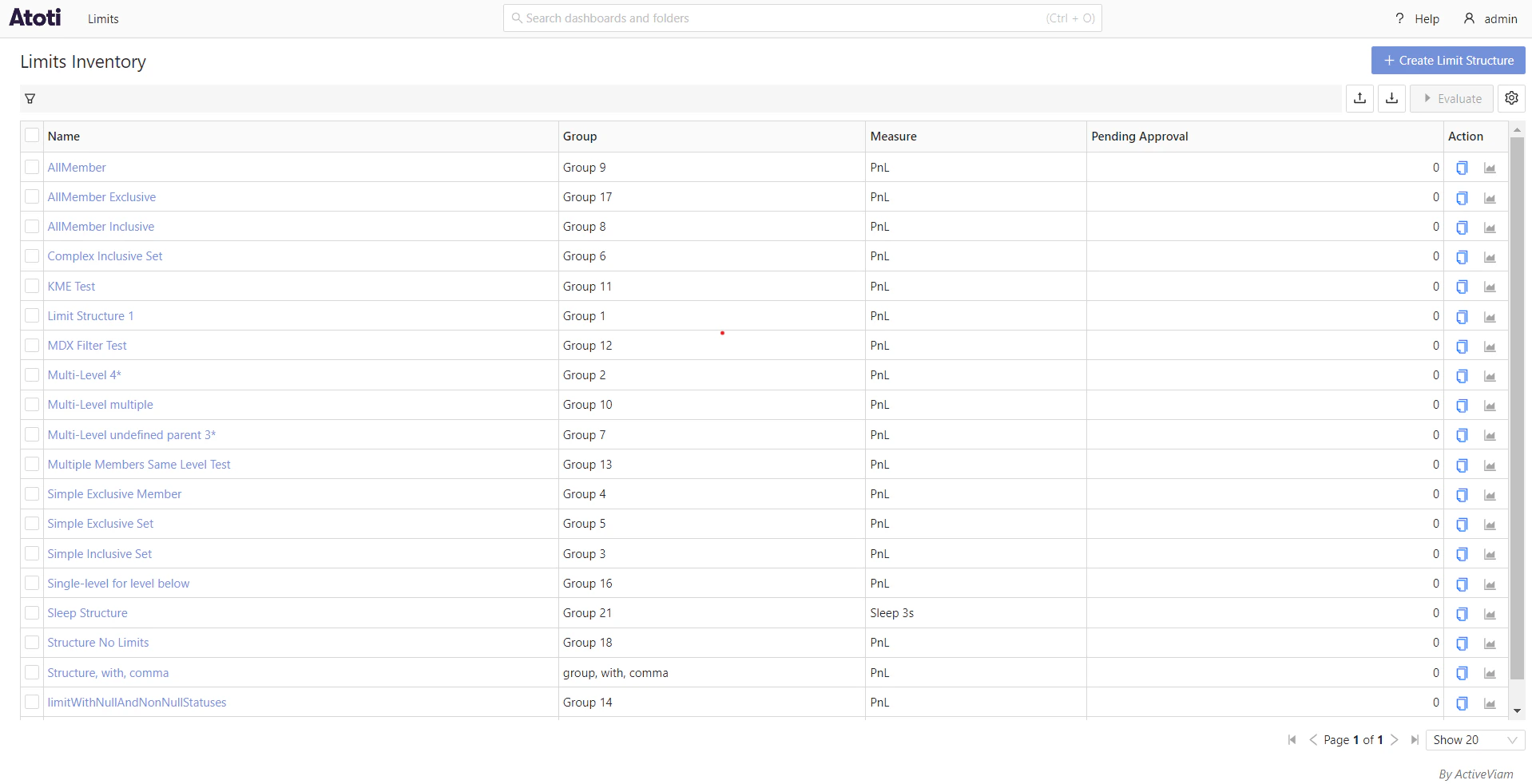

Admin limits view

​
restrictedUser:

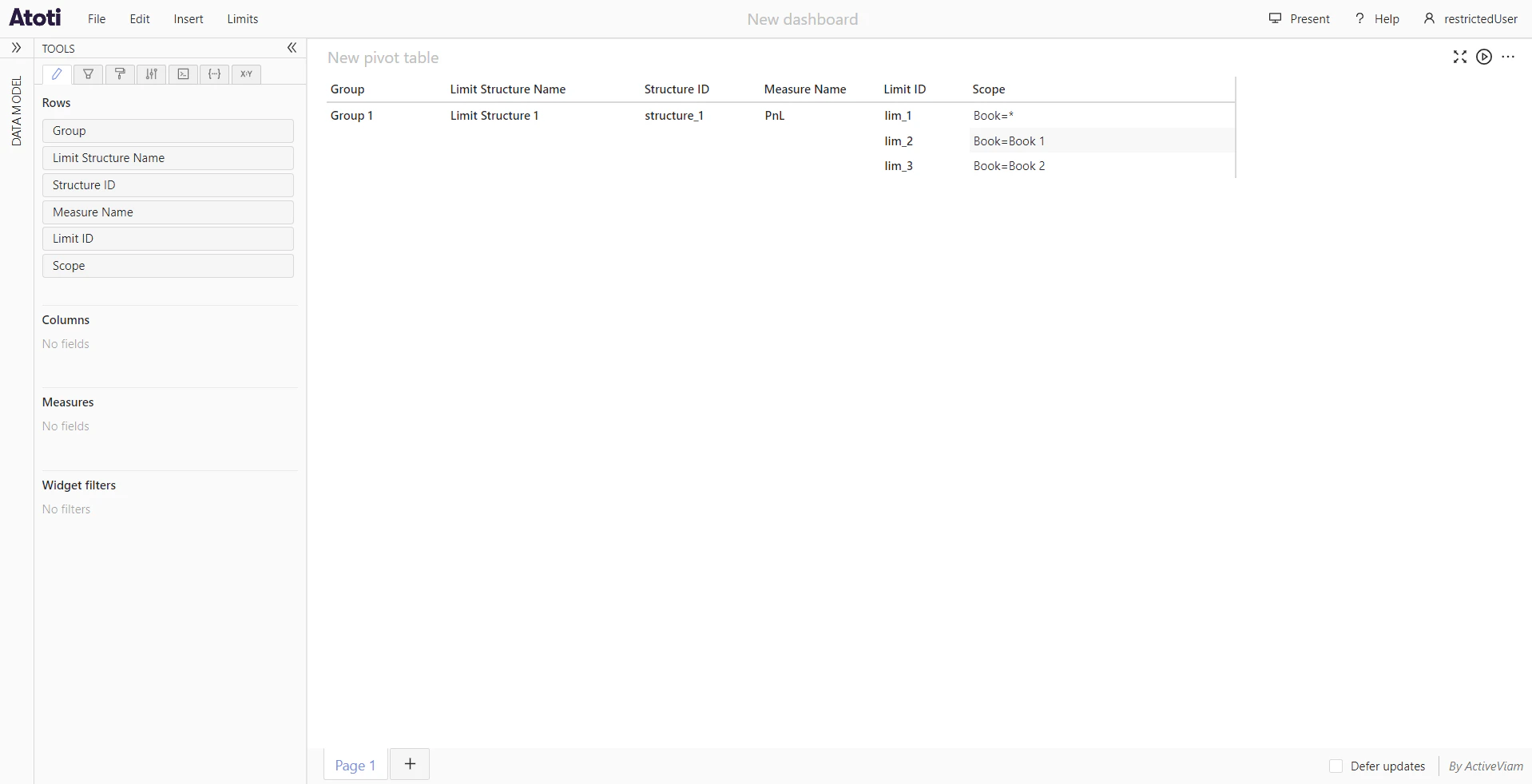

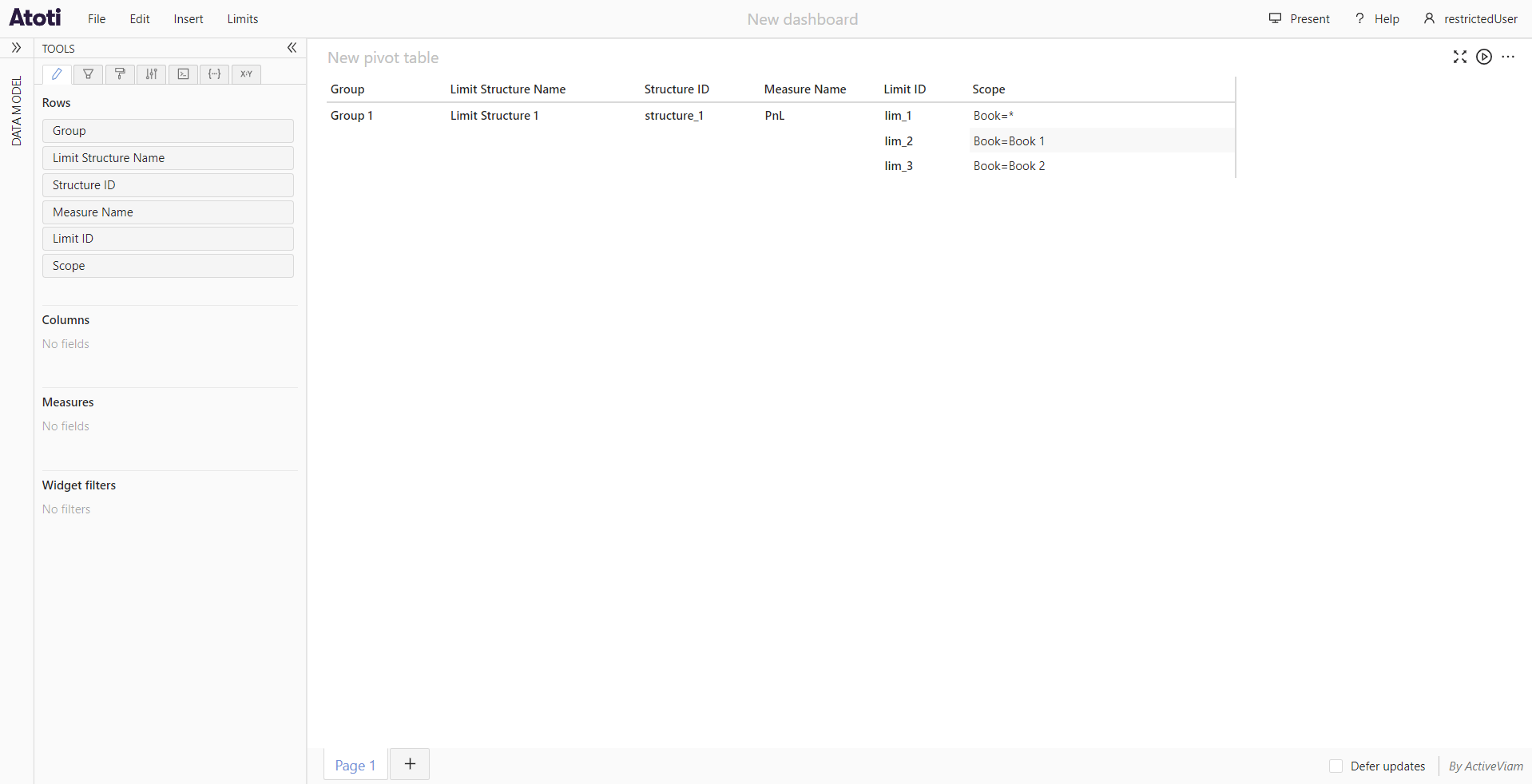

Restricted user cube view

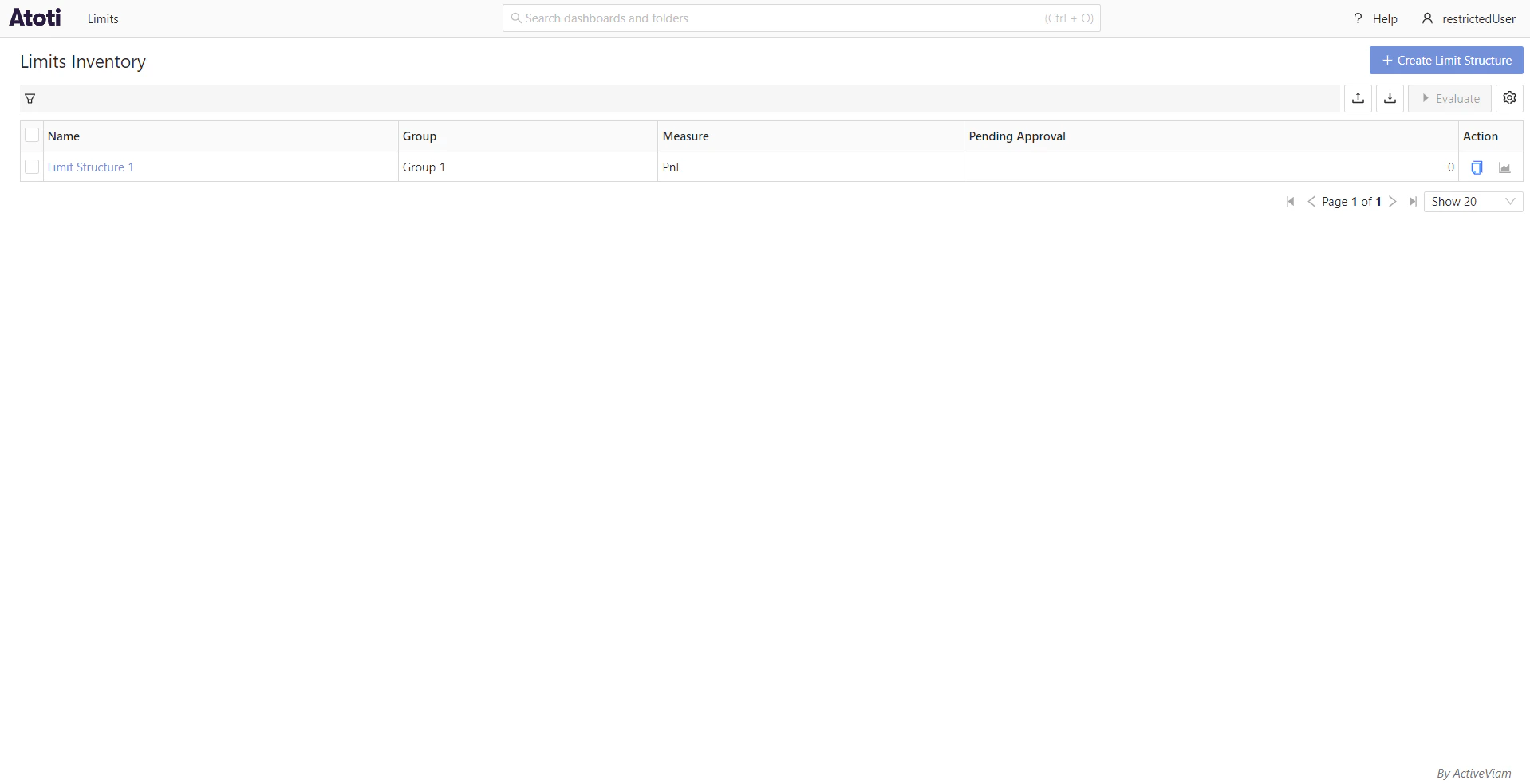

Restricted user limits view
