Atoti Intelligence SDK

This is part of the Atoti Intelligence SDK offer.
This guide explains how to use Postman to test and interact with the Atoti MCP Server.

​
Why connect with Postman?

Using Postman to connect to the MCP Server provides several benefits:
  • Test MCP Server configuration and availability
  • Validate tool discovery and execution
  • Explore available tools and their parameters
  • Debug integration issues
  • Test custom tools during development

​
Prerequisites

Before connecting with Postman, ensure the following requirements are met:
  • Atoti MCP Server is set up and running
  • Postman is installed (desktop or web version)
  • Atoti application credentials (username and password)
  • The MCP Server endpoint URL, http://localhost:9090/mcp for the default Streamable HTTP transport
The following examples assume the application runs locally on port 9090. Replace 9090 with the port on which the application is running.
/sse is the older server-sent events transport, deprecated for removal in Spring AI 2.0.0 and not served unless the deployment sets spring.ai.mcp.server.protocol=SSE. Use POST /mcp everywhere. See MCP transport.

​
How to configure authentication

Set up authentication in Postman to access the MCP Server. Follow these steps:
  1. Open Postman
  2. Create a new request
  3. Select the Authorization tab
  4. Choose “Basic Auth” as the type and enter the Atoti username and password. Alternatively, choose “Bearer Token” and paste a token generated from the MCP credentials page.

​

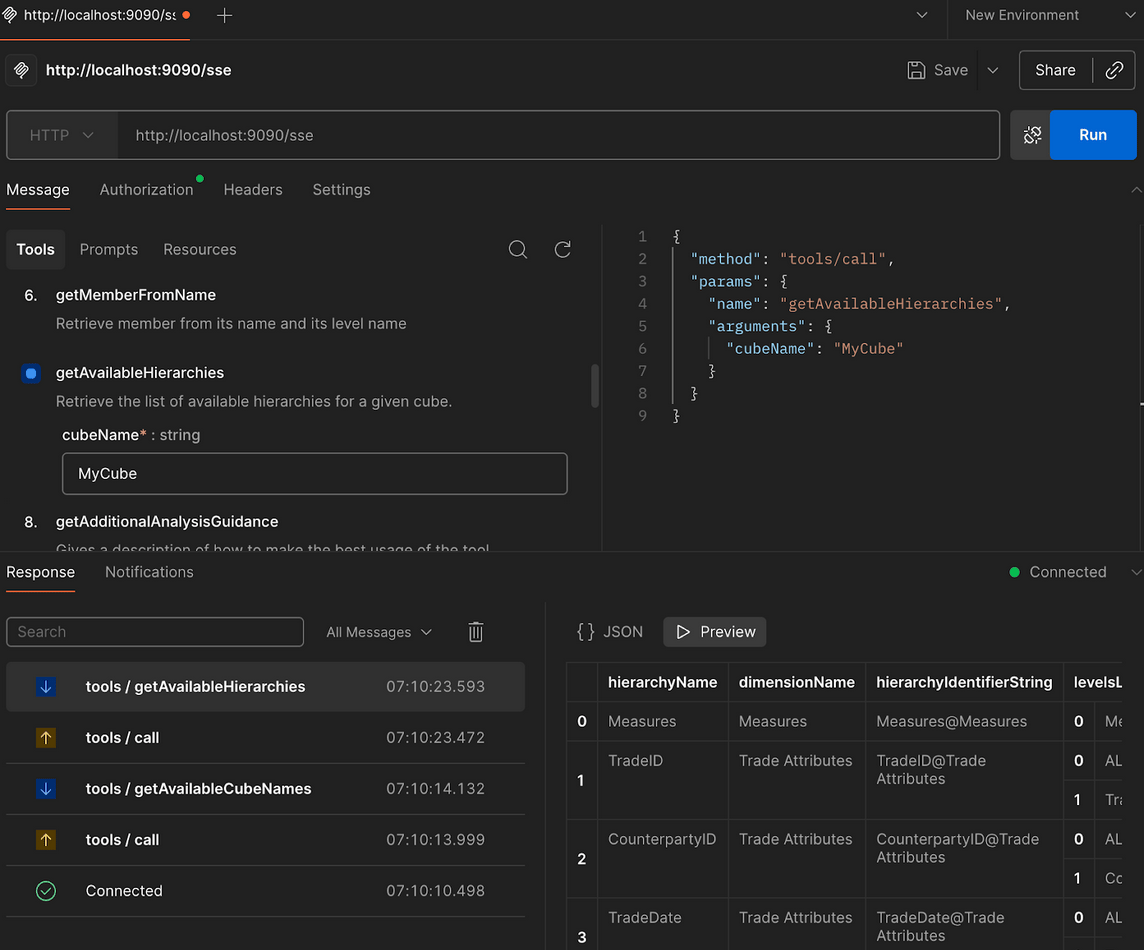

How to discover available tools

Make a request to the MCP Server to discover available tools. The following example shows a request to list tools:

​
How to make tool requests

After discovering available tools, make requests to execute specific tools. Configure the request with the following components:
  • Method: POST
  • URL: The MCP Server endpoint
  • Headers:
    • Content-Type: application/json
    • Accept: text/event-stream (for SSE endpoints)
  • Body: JSON payload with tool name and parameters

​
What does an example request look like?

The following example shows a typical tool execution request:
Replace the following placeholders:
  • tool-name: The name of the tool to execute
  • parameter1, parameter2: Tool-specific parameters
  • value1, value2: Parameter values

​
How to interpret responses

The MCP Server returns responses in JSON-RPC format. A successful response includes:
  • Response data in the result field
  • Request ID matching the original request
  • HTTP status code 200
An error response includes:
  • Error details in the error field
  • Error code and message
  • HTTP error status code

​
Common use cases

Once connected, Postman can be used to test the following:
  • Verify MCP Server availability
  • List all available tools
  • Execute tools with different parameters
  • Test authentication and authorization
  • Validate custom tool implementations
  • Debug integration issues

​
Troubleshooting

If connections fail, check the following:
  • The Atoti application is running
  • The MCP Server endpoint is accessible
  • Authentication credentials are correct
  • The request format matches JSON-RPC specifications
  • Firewall or network settings allow connections
After testing with Postman, consider:
