How to understand measure dependencies

The Measure lineage tab in Atoti Admin UI provides a visual and interactive overview of how measures are connected and derived within a cube. It helps users understand dependencies between measures, trace their origins, and inspect their attributes. This is useful for debugging, auditing, and optimizing measure logic.

How to view a measure​

Use the measure selector in the top-left corner to choose a measure. Once selected:

  • The measure is shown in the graph.
  • Its attributes are displayed in the panel.

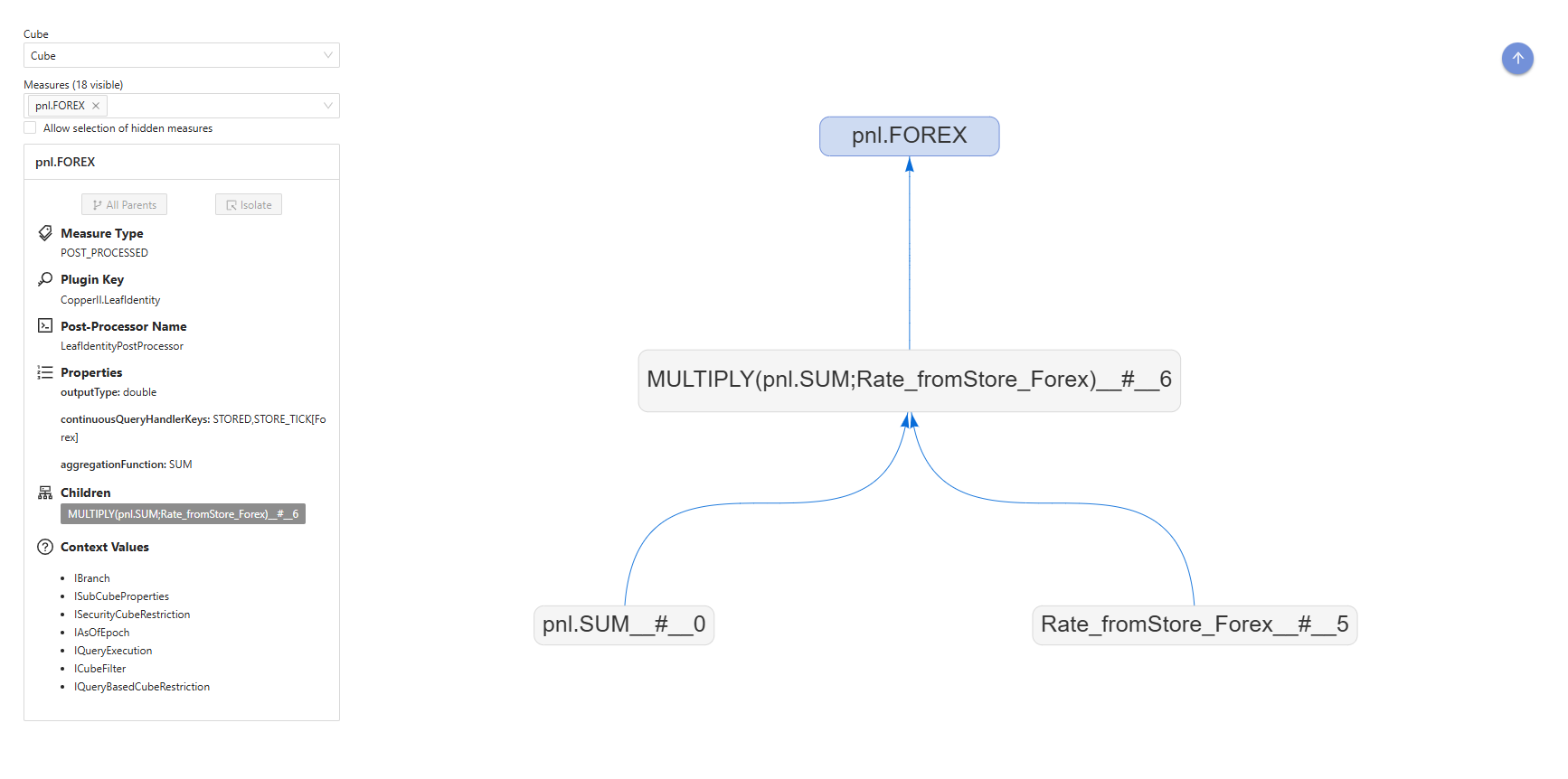

Example measure, parent measure and children measures
Example measure, parent measure and children measures

How to interpret measure attributes​

The attributes displayed depend on the type of measure selected. There are 4 types of measure:

  • HIDDEN MEASURE: Used in calculations but not visible in the UI
  • RAW: An aggregation of the raw data, like .SUM
  • NATIVE: Measures created by the Atoti system, like update.TIMESTAMP
  • POST_PROCESSED: Measures created from combining any of the above or other post_processed measures

A measure created using Atoti's COPPER API will display as one of the four types above.

  • Attributes for raw measure (created using Copper.SUM, etc) indicate the datastore field used for the aggregation.
  • Attributes for post-processed measures (created using our legacy Post-processors or with Copper.newPostProcessor):
    • Plugin key: The plugin used to create the measure
    • Post-processor name: Name of the underlying post-processor class
    • Properties:
      • Output type: Data output format
      • Continuous query handler keys: How post-processor measures are chained
      • Context values: All external variables that can impact the way the measure is calculated.

How to explore measure relationships​

The child and parent measures are displayed on the screen and listed in the attributes.

  • Child measure: A measure used in the calculation of the target measure.
  • Parent measure: A measure calculated using its child measures as inputs

The measure names are clickable. Click a name in the measure lineage diagram or in the parent or child list to navigate through the measure chain. The measure attributes update when you select a new measure.

Use the buttons at the top of the attributes list:

  • All Parents: Add all the parents of the target measure
  • Isolate: Remove all the measures apart from the target measure

Authorization​

Authorization to access the measure lineage tab is managed at the endpoint level. This tab uses the Atoti Server Diagnostic endpoint. This endpoint is exposed by the Atoti Server starter
