DLC RESTful Service
DLC exposes REST services that can be invoked by a client to tell ActivePivot when to load/unload data. The description for the REST service is located at:
/services/connectors/rest/dlc/v1
(specify the hostname, port and REST-version depending on where ActivePivot is running)
To know how to load / unload data, and the related REST requests, please refer the DLC Transactions page.
Request example from Postman software
NOTE: The following images do not contain the REST Version. The REST Version is required to connect with any of Data Connectors services. The correct endpoint will look like for REST Version v1:
http://localhost:9090/services/connectors/rest/dlc/v1/execute
Request example from Java
final IDataLoadController controller = dataLoadControllerConfig.dataLoadController();
final String[] dateTokens = {"2018-12-05","2018-12-04"};
for (final String dateToken : dateTokens) {
final Map<String, Object> fetchScope = new HashMap<>();
fetchScope.put(DataLoadControllerRestService.SCOPE_KEY__COB_DATE, dateToken.replace("'", ""));
controller.execute(
new DataLoadControllerRequest(
LoadDataTxControllerTask.PLUGIN_KEY,
Arrays.asList(
DataLoadControllerConfig.TOPIC__PARAMETER_DATA),
parameterFetchScope));
controller.execute(
new DataLoadControllerRequest(
LoadDataTxControllerTask.PLUGIN_KEY,
Arrays.asList(
DataLoadControllerConfig.TOPIC__CONFIGURATION_DATA),
fetchScope));
}
Response format
DLC supports JSON format for responses to all requests.
Load data to a branch
NOTE: The following images do not contain the REST Version. The REST Version is required to connect with any of Data Connectors services. The correct endpoint will look like for REST Version v1:
http://localhost:9090/services/connectors/rest/dlc/v1/execute
DLC can load / unload data from a branch.
-
Initial State - only master branch is present
-

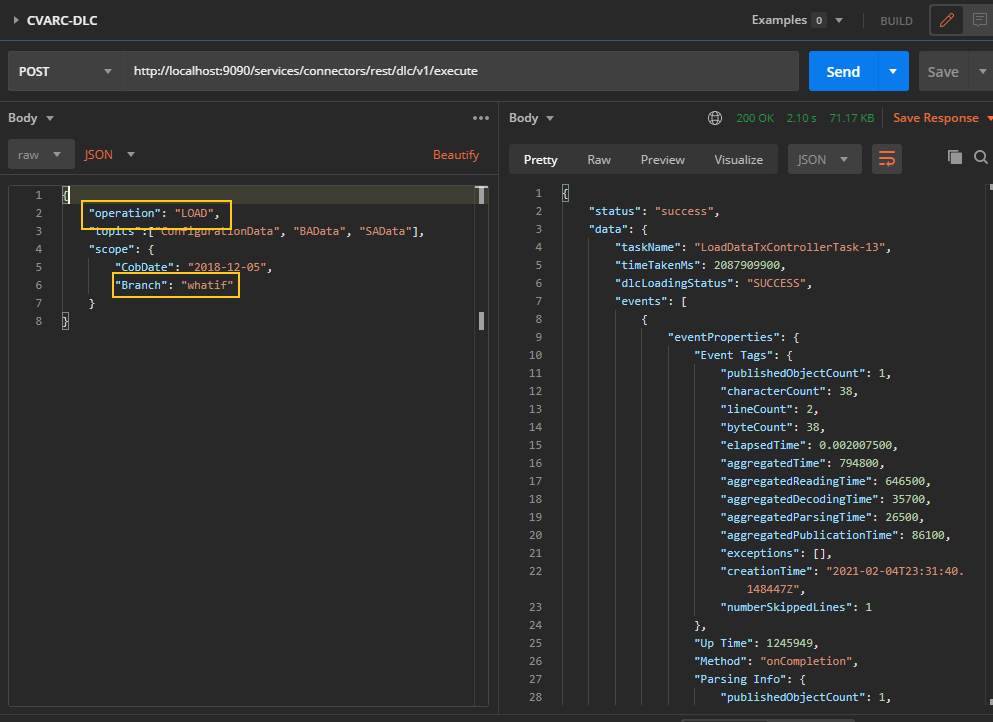

Load 2018-12-05 data to a “whatif” branch
-
“whatif” branch loaded successfully
-

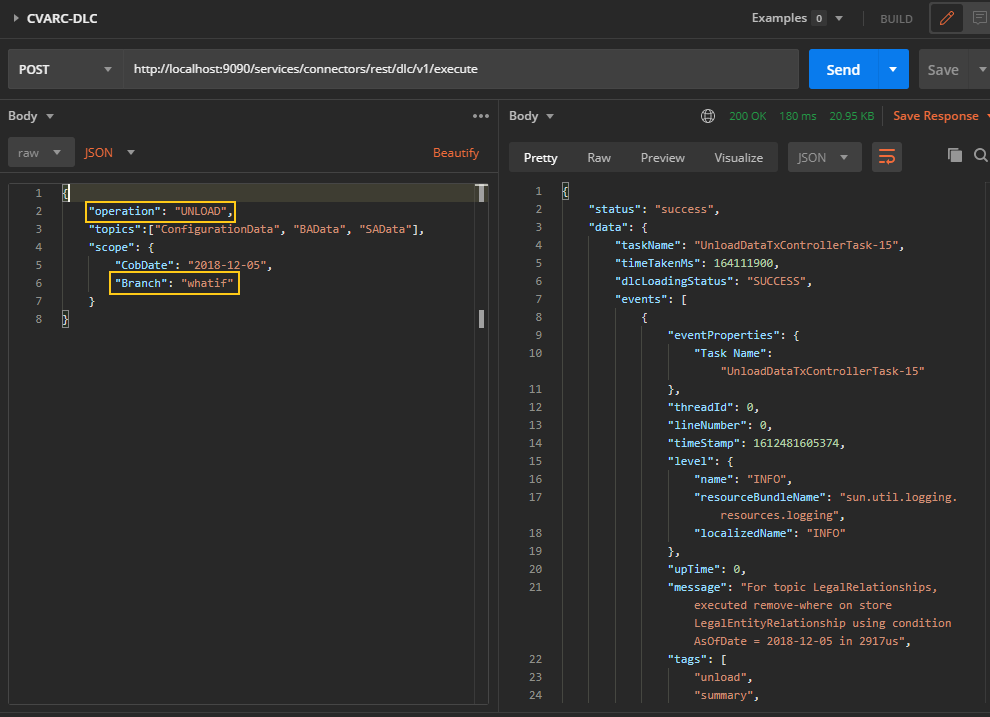

Unload “2018-12-05” data in “whatif” branch
-
No more 2018-12-05 data
