Sign-off tasks

A Sign-off task is used to define the subset of facts (for example, trade and positions data) on which an adjustment is to be performed by the designated owner, submitted for approval, then reviewed and signed off by the designated approver. The Sign-off task can be defined at any node in the hierarchy, its scope defined by conditions.

note

The default implementation provided in the Sign-Off Module has a defined workflow (i.e. task statuses) and defined user roles (i.e. manager, user). This documentation explains the default implementation, but both the state workflow and the user roles can be customized for specific business needs - see the Customizing sign-off workflow section in the Sign-Off Module Developer Guide.

Required role

In the default implementation, you must have the Manager role to be able to create tasks or perform any other actions on them. This requirement can be changed in the Activiti configuration settings. For details, see the Sign-Off Module Developer Guide.

Task statuses

The task status and workflow can be customized. The default reference implementation is documented here.

The following diagram illustrates the operations in the approval process together with the corresponding status transitions of the task object and the data in the task.

The following table describes the sequence of operations and status transitions for a task as it goes through the approval process:

Operation Required state of the task
Initiate sign-off (take a snapshot of the task) Not Started
Create / edit / delete manual adjustments Initiated or Rejected
Request approval Initiated or Rejected
Approve approval request Pending
Reject approval request Pending
Roll back Any status except Not Started
Export
Note: By default, this is a server task that is automatically triggered when you Approve the sign-off task.		 Approved

Creating tasks

The task must be defined in such a way that a fact belongs to a single domain and that the union of all the domains is equal to the entire set of facts. That is, no overlap between the tasks.

You can create individual tasks or use the bulk upload facility to define and import multiple tasks at once.

Creating a single sign-off task

  1. From the Sign-off Task Definitions widget, click + New Sign-off task.
    The Create new Task dialog is displayed.

  2. In the Parameters section, define the various elements of the task:

    Field Description
    Name Enter free text
    Description Enter free text
    Category Enter a meaningful name.

    The category name will be displayed in the Sign-off Toolbox widget for the designated user.
    They can then set up dashboards consistent with that category.
    For example, if you create a category with the name “Sensitivity Sign-off”, the relevant users would organise a dashboard of widgets showing relevant sensitivities metrics.
    Valid From and
    Valid To    		 Set a validity period.

    The Valid From is required, but the Valid To is optional. When a task is no longer needed, you simply archive it. See Removing tasks

    Note: Valid From (inclusive) Valid To (exclusive).
    For example 2018-09-28 to 2018-12-31 denotes a validity period from 28th Sept to 30th Dec 2018

  3. In the Workflow section, define the level of scrutiny required.

    Field Description
    Type Select level of scrutiny. Two workflows are provided in the default implementation. Additional workflows can be defined and configured in the SignOffSettings.ts file.

    * 4-eyes: Two separate levels of validation are required from Examiners, then Approvers. One person with the role that reviews, then another with the role that approves.
    * Simple: Only one level of validation is required. Someone with the role of USER can both review and approve.
    * 4-eyes-kpi: Automatic validation based on the KPIs you define in the KPIs field.
    Examiners and Approvers Based on the workflow type selected, the system prompts you to define which roles can perform the steps in the workflow.
    * 4-eyes: you are prompted for Examiners and Approvers.
    * Simple: you are only prompted for an Approver role.

    The roles are configured from the SignOffSettings.ts and SecurityConfig in the ActivePivot server and Activiti configuration files.

  4. In the Scope section, define the scope of the task:

    Field Description
    Server (only visible if you are connected to multiple servers)

    From the list of available servers, select the one to use for sign-off.
    Domain The domain equates to the cube.

    Select the cube to distinguish different types of sign-off tasks within a given cube.
    Then set which data in the cube to sign off. Select either:
    * Top of house to sign off data for a whole business day. This leaves the filters empty.
    * The name and value of the field to filter by in the chosen cube. Note: The filter condition only uses the EQUALS operator.
    Measures and KPIs Measures: Select which measures are to be exported.
    KPIs: Define the thresholds at which the task is automatically approved and exported without any review.

    For details of the 4-eyes KPI workflow, see Customizing sign-off backend

  5. Click Submit.

    The task is created with status set to Saved. It is not yet published, so not visible to the specified owner.

Bulk uploading multiple tasks

  1. To view the CSV template showing the format required for preparing the upload, from the Sign-off Task Definitions widget, click Download.

    The template is an Excel sheet with the necessary column headers and an example of the formats for each field.

  2. Prepare your tasks in line with the formats required for each field:

    Field Format Example
    valid-from yyyy-mm-dd 2019-01-31
    valid-to yyyy-mm-dd 2021-04-15
    name Free text Sensi-Gamma
    description Free text Sensitivities Gamma
    category Free text Sensitivity Cube
    workflow-type Must map to one of the workflow types defined in workflow configuration file SignOffSettings.ts 4-eyes
    workflow-parameters Must map to Activiti configuration in SignOffSettings.ts approvers:MANAGERS; examiners:USERS
    server-name Must map to the server names configured in the rest-apis section of the application.yaml configuration file. MRA
    domain Name of cube you want to explore Sensitivity Cube
    filters Set the fields to filter by in the chosen cube schema field
    measures Name of measures you want to explore Gamma;Vega
    kpis Set the thresholds at which the task is automatically approved and exported without any review kpi1;kpi2

  3. Complete the spreadsheet with the task details, then Save.

  4. To upload your spreadsheet, click Upload, navigate to the file, then click Upload again.

    note

    The tasks are created and automatically set to Saved.

Managing tasks

To perform actions on tasks, you must log in as a Manager and use the Sign-off Task Definitions widget.

tip

Selecting multiple tasks

To select multiple tasks at once, you can either use the checkbox beside the individual tasks or drag over multiple tasks in the name column.

Copying tasks

To quickly create a new task based on an existing one:

  1. From the Sign-off Task Definitions widget, select the task you require, then click the copy icon.

  2. Make the minor modifications to the definition, then click Submit.

Publishing tasks

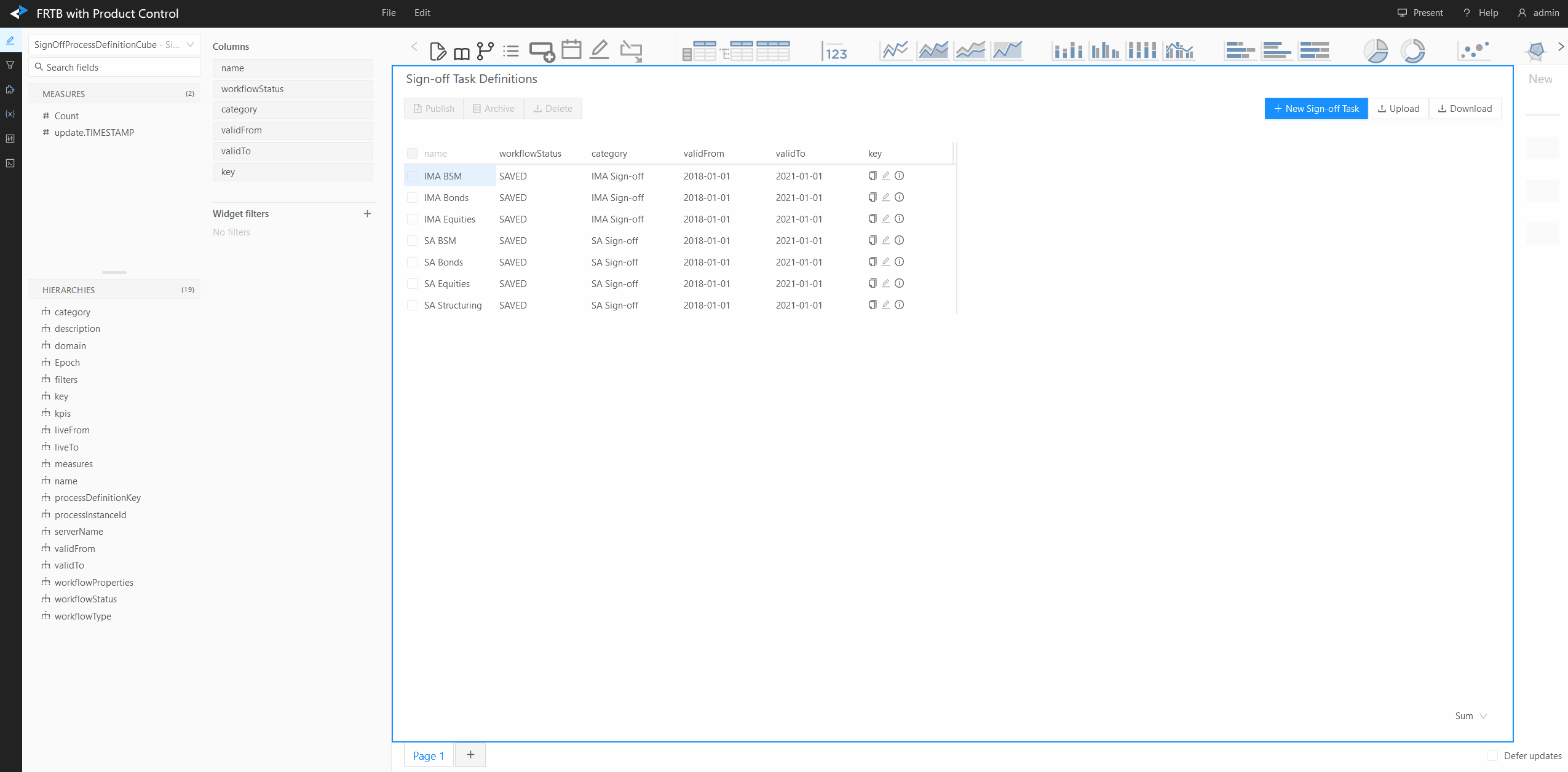

The animation demonstrates how to publish, archive, and delete tasks, plus view the task details:

A task is not visible to the designated owners until the Manager publishes it.

  1. From the Sign-off Task Definition widget, select the relevant tasks, then click Publish.

    The task is added to the list for the specified owner who can work on it from the Sign-off Toolbox widget.

    The designated owner can view or initiate the task for a specific date.

Modifying tasks

  1. From the Sign-off Task Definitions widget, select the task you require, then click the edit icon.

    The Edit Sign-off Task panel is displayed.

  2. Make your changes, then click Submit.

    The updated task is displayed in the table.

Viewing task details

To see the parameter, workflow and scope details for a particular task:

  • From the Sign-off Task Definition widget, select the relevant tasks, then click the view icon.

    The Sign-off Task Details panel is displayed.

Removing tasks

If you want to remove a task, you can either archive or delete it, depending on its status.

  1. From the Sign-off Task Definition widget, select the relevant tasks, then click the option you require:

    • Archive: Tasks that are already Published

    • Delete: Only Saved tasks

Working with the data in a task

note

The workflow and roles stated in these operations describe what is provided by default. Your administrator can change these settings in the Activiti configuration file. For more information, see the Sign-off Module Developer Guide.



Use the Sign-off Toolbox widget to perform actions on the data in tasks assigned to you.

Viewing assigned tasks

In the Sign-Off Toolbox select the task dropdown list to see the set of tasks assigned to your role.

See Sign-off dashboards

Initiating tasks

  1. In the Sign-Off Toolbox view, use the dropdown boxes to select a task that has the status Not Started, then click Take Snapshot.

  2. Click the status box to view details of the sign-off task.

Submitting for approval

The animation demonstrates how to request approval and then rollback if required:

Once you have reviewed your adjustments to the data in your task:

  1. Click Request Approval.

  2. (Optional) Add a note.

    By default, this is optional, but can be configured in the SignOffSettings.ts configuration file. For details, see the Sign-Off Module Developer Guide

  3. Click Request Approval.

    The task is routed to the Manager and status is set to Approval Requested in the Sign-off task history panel and Pending in the status box.

Rolling back tasks

If needed, at any point after the task is initiated, you can roll back the modifications and adjustments you have made and start again.

  • Click Take Snapshot.

The system performs the following:

  • Rolls back all adjustments
  • Takes a fresh snapshot of the data
  • Reapplies any recurring adjustments
  • Resets the task to Initiated and returns it to your workflow

Approving or rejecting tasks

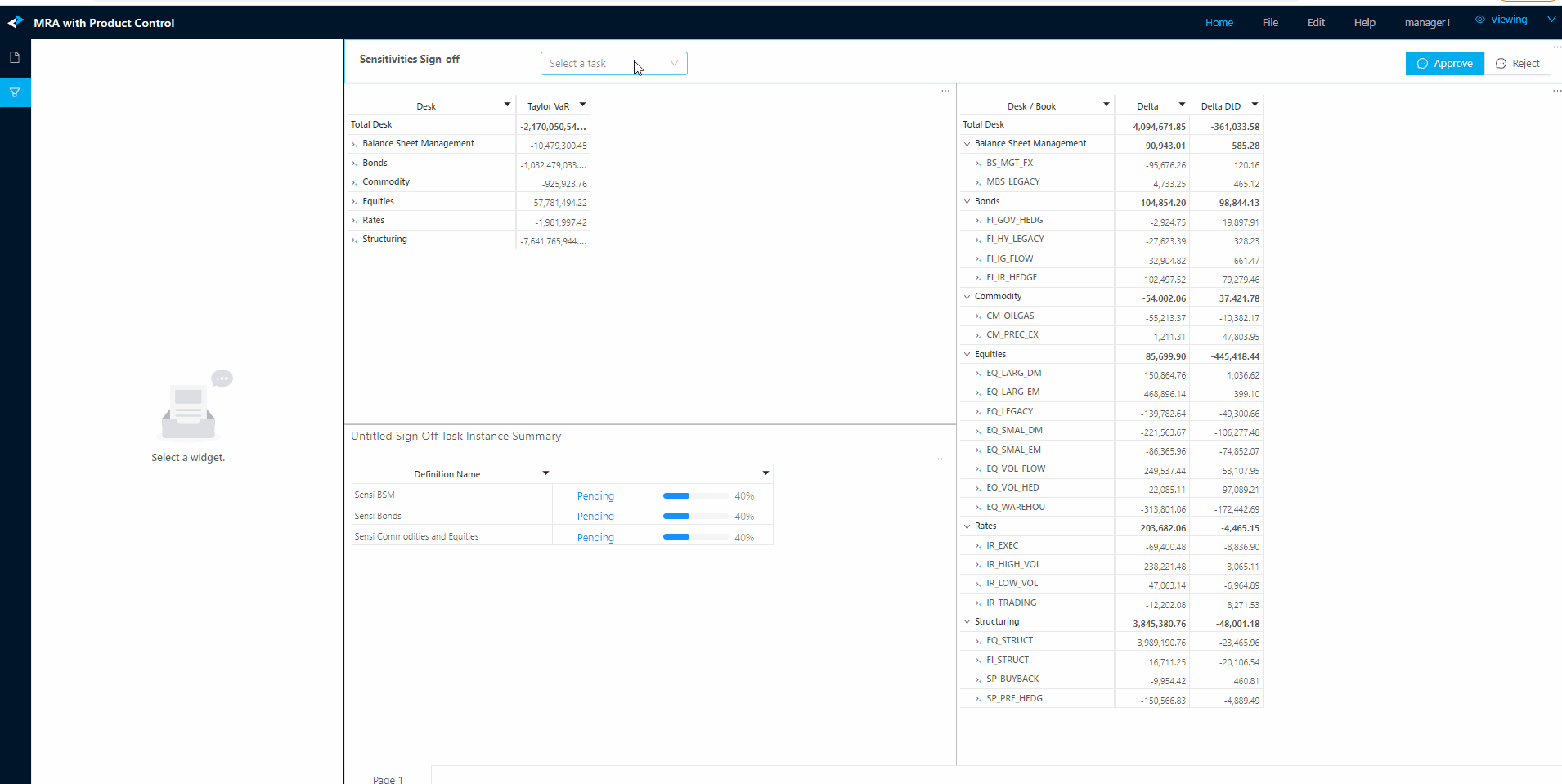

The animation demonstrates how to reject and approve tasks:

  1. As a Manager, in the Sign-off Toolbox view, select the Pending task from the task list. The details of the specified task are displayed in the task history panel on the right.

  2. Review the task, and click the status box to check the audit trail.

  3. Depending on the results of your review, click the operation you want to perform:

    • Approve: The task is set to the Approved status, and the Export process launches automatically. You can see the progress of the export in the task status icons and in the Sign-off Task Export Status panel.

    • Reject: The task is returned to the submitting user’s workflow for further modification and to be resubmitted

      • Enter a comment and click the operation confirmation button to proceed.

Exporting approved task data

The export is performed automatically when the approver clicks Approve.

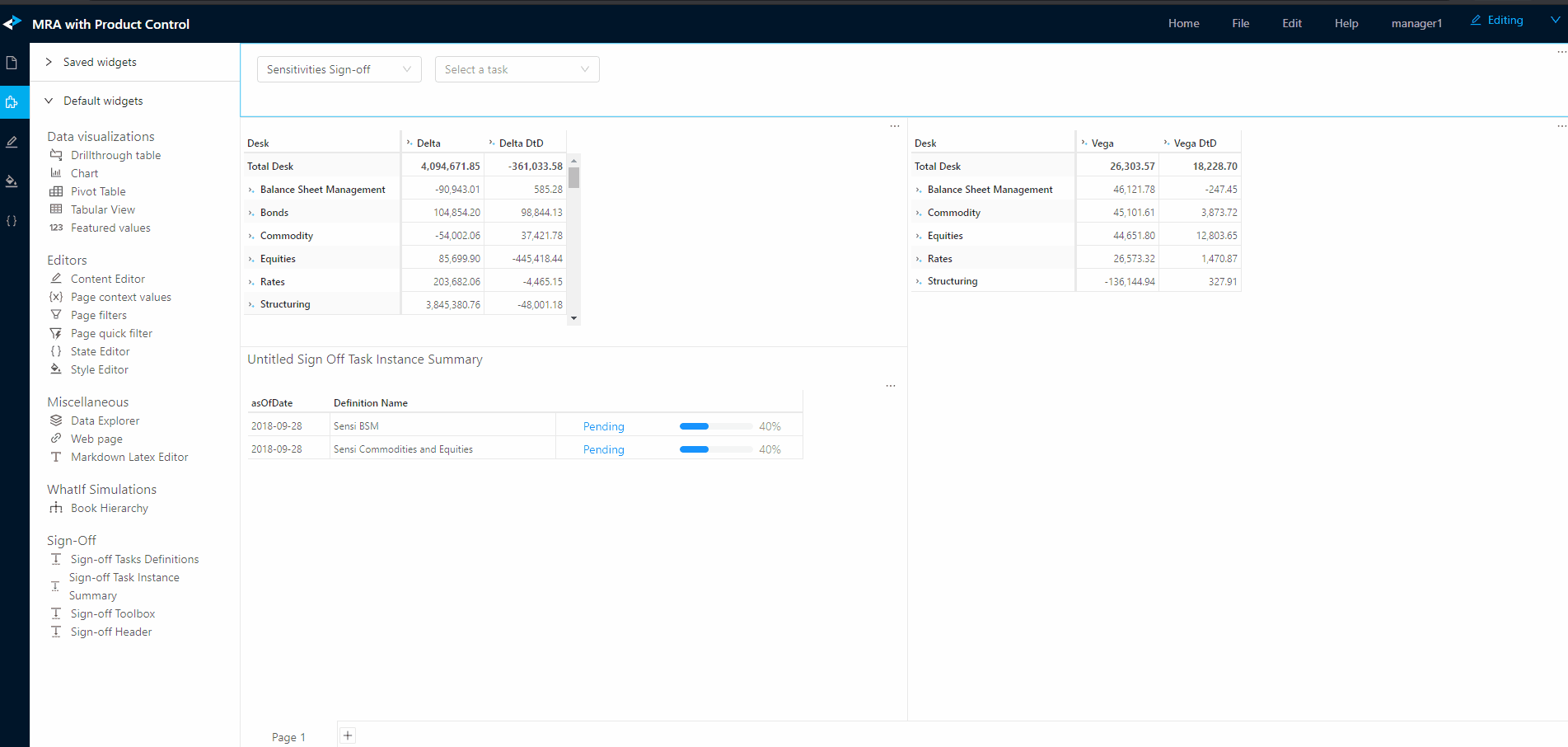

To view the status of the export process:

  1. From the Sign-off Task Instance Summary panel, check the progress bar for the relevant task. When the process is complete, the status changes to Exported.

  2. Click the task status Export Successful to view detailed information in the Sign-off Task Export Status panel.

    By default, the process performs three levels of export; store, cube, and aggregated.

    For each of these exports the panel reports the names of the exported files, how many there were, their status, and the timestamp.

To view the exported data:

  • In your file system, navigate to the export directory configured by your Accelerator administrator .

    The files are stored in CSV format. For example, in MRA by default the exports are stored in the format:

    \\\[AsOfDate\]\\MRA\_\[Sign-offtaskId\]\_\[Date\]\_\[Timestamp\].csv

For details, see the Sign-Off Module Developer Guide.
