ActivePivot Excel Add-in: enhance your experience of ActivePivot in Excel

Introduction​

The ActivePivot Excel Add-in is used to bring some extra functionalities to the Excel experience. These functionalities are readily available in ActiveUI:

  • Allow the users to drillthrough into special datagrids and widgets in Excel and bypass the Excel row limit;
  • Refresh the pivot table when real-time updates occur
  • Move through sliced filters more easily using next and previous buttons
  • View and configure context values
  • View MDX queries executed by the pivot table

Installation​

The Excel Add-in is released and installed thanks to a setup.exe file and an accompanying MSI file.

Dependency Information (Shipped as DLLs with the installer):

  • Antlr3
  • VSTO 4.0
  • .NET Framework 4

The setup files can be downloaded from Artifactory. The version 6.0 is compatible with ActivePivot 6.0, while the version 5.11 is compatible with ActivePivot 5.11 and ulterior versions.

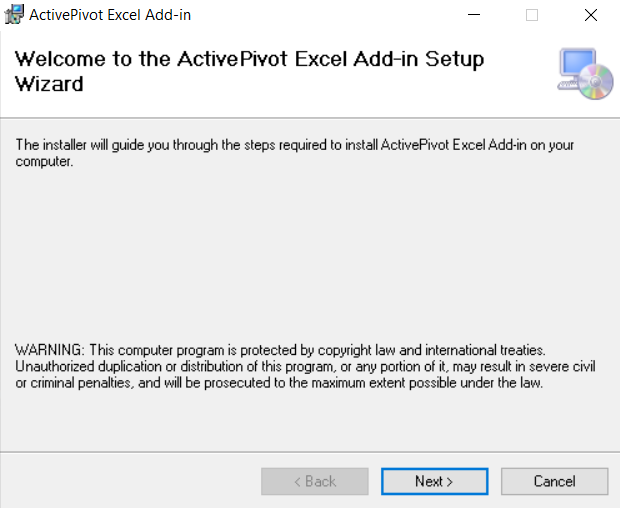

Run the setup.exe file with Excel closed. It will prompt the set-up wizard that will guide you through the installation.

Set up wizard

Once the add-in has been installed, it is ready to use. You can check that the add-in has been successfully installed by starting Excel and checking that the Ribbon has a new section called ActivePivot.

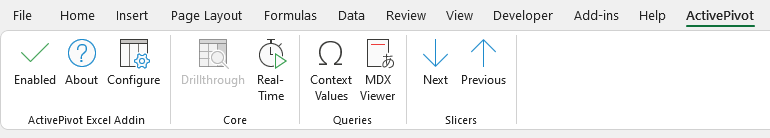

Excel Ribbon ActivePivot section

ActivePivot Configuration​

To use the add-in, your ActivePivot server needs to expose the spreadsheet service as a rest service: to do that add the SpreadsheetRestServiceController.class to the import list of ActivePivotRestServicesConfig if it is not present.

The SpreadsheetRestServiceController is an internal REST service and should not be used directly by client applications. We intentionally avoid any mention of this service in the REST API documentation.

How to use the add-in​

Introduction​

First, you need to connect Excel with ActivePivot as explained in the section Front ends. Then, each additional functionality of the ActivePivot add-in will be available from both the Ribbon section "ActivePivot" and the context menu of a valid pivot table.

Excel ActivePivot context menu

At the first use, the add-in will prompt you for authentication to ActivePivot. For security reasons, the add-in cannot use the connection established by Excel and will need its own authentication.

Let's see what you can do with the ActivePivot Excel Add-in from left to right in the ribbon.

Excel Ribbon ActivePivot section

Enable​

The Enable button allows to enable or disable the add-in.

About​

The About button opens a pop-up showing the add-in version and the versions of ActivePivot it is compatible with.

About popup

Configuration​

The configuration button opens a pop-up that allows you to choose different settings:

  • the authentication method
  • the drillthrough output type
  • the refresh rate of the real time

Afterwards, close the pop-up.

Configuration settings pop up

Drillthrough​

There is a native function for drillthrough in Excel. The add-in proposes an alternative drillthrough function that:

  • can use a context value drillthrough.maxrows to configure maximal number of rows in the output;
  • can display the drillthrough result as a datagrid or a spreadsheet.

The drillthrough.maxrows limit can be configured from Excel with the context values action of the add-in. The output format of the drillthrough (datagrid or spreadsheet) can be chosen from the configuration settings. To enable the real-time, click on the corresponding action.

How to create a new drillthrough​

A drillthrough can be performed on a cell of a pivot table by either double-clicking on the cell or selecting the cell and selecting the 'Drillthrough' option from the ribbon or the context menu. There are several kinds drillthrough that can be performed, you can select the type by changing the 'Drillthrough Output Type' in the configuration settings.

Spreadsheet Drillthrough​

The spreadsheet drillthrough option is similar to the native drillthrough, but is not limited by the native Excel drillthrough row limit. The drillthrough displays the number of rows based determined by the 'Max Drillthrough Rows' context value, and opens the result in a new sheet:

Spreadsheet drillthrough

We do not recommend to switch between the spreadsheets while executing this command due to internal Excel limitations. Some data may be lost or corrupted.

Datagrid Drillthrough​

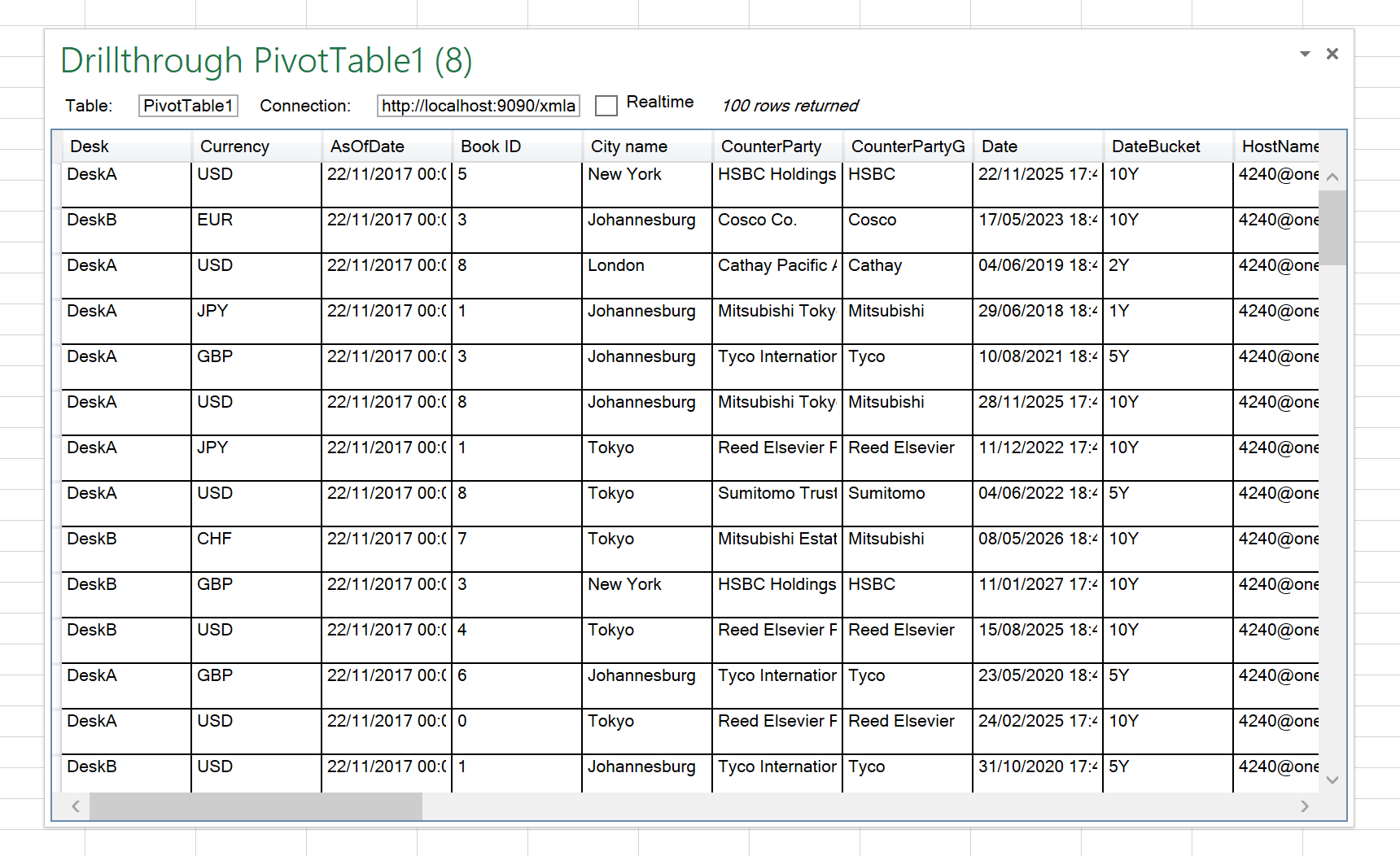

The datagrid drillthrough performs a drillthrough up to the first 100 rows of a selection and displayed it a popup that can be docked within the Excel window:

Datagrid drillthrough

RealTime​

The realtime button enables the update of the data in real-time. The refresh interval can be modified in the configuration settings. The minimum and default value is 500ms.

Context Values​

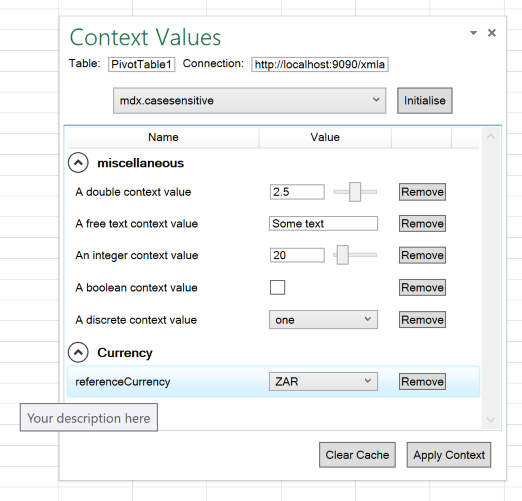

When a pivot table cell is selected, the context values for that specific pivot can be viewed and manipulated in a popup by selecting the 'Context Values' button in the ribbon.

Uninitialized context values can be set by selecting them from the drop-down menu and pressing the 'Initialize' button. Context values can be unset by selecting the 'Remove' button. Some context values (e.g. reference currency) will always have a value set for them, so will reappear in the list with a default value if removed.

To confirm any changes you want to be submitted to the cube select the 'Apply Context' button. The 'Clear Cache' button clears the internal context values cache held by the add-in and re-requests the values from the cube,so this will cancel any changes you have made but not applied. Close the window when you are done.

Context values configuration

MDX Viewer​

The Mdx viewer button displays the current MDX query made by the pivot table in a drawer at the bottom of the Excel window. Mdx Viewer

Slicer Navigation​

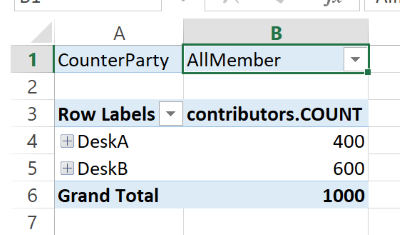

The slicer is the filter applied to the pivot table and displayed just above.

Slicer example

The Next and Previous button in the Slicers section allows you to cycle through the slices for each member on that level.

Slicer navigation
