Legacy Workflows

Atoti Limits provides a few workflows out of the box with Activiti. The complete tutorial of Activiti can be found on the Activiti website.

This section shows you how to use the out-of-box workflows.

You can find the Business Process Modeling Notation (BPMN) files in the limits-starter/src/main/resources/processes folder. bpmn files are in the XML format, however, we recommend that you install the Activiti Diagram Editor plugin in your IDE, such as Intellij or Eclipse, to edit and read the bpmn files in a nice UI workflow representation.

The events that trigger a workflow are:

• Limit change: a new limit is created or amended through the UI.
• An exception (breach or warning) occurs after the limit evaluation.

You can set up workflows for each of these events.

limit-process-four-eyes.bpmn

This workflow requires one approval. By default, one user creates the limit, and another approves it. Alternatively, if the limits.workflow-rules.can-approver-be-same-as-creator property in application.yml is enabled, the creator of the limit can also approve it.

limits:
  limitWorkflows:
    FourEyes:
      key: limit-process-instance.four-eyes

<process id="limit-process-instance.four-eyes ...>"

All serviceTasks need to have the associated Bean defined in the LimitsProcessInstanceWorkflowService.java or a delegate service:

Location: limits-activeviam/src/main/java/com/activeviam/limits/workflow/instance
File name: DeleteDelegateService.java

The possible actions in each of the actionable states are:

limit-process-straight-through.bpmn

This workflow doesn’t require an approval. The limit is created in approved state.

limits:
  limitWorkflows:
    StraightThrough:
      key: limit-process-instance.straight-through

<process id="limit-process-instance.straight-through ...>"

limit-process-exception.bpmn

This workflow handles breaches and warnings.

limits:
  exceptionWorkflows:
    Exception:
      key: limit-process-instance.exception

<process id="limit-process-instance.exception ...>"

All serviceTasks need to have the associated Bean defined in the java file: Location: limits-activeviam/src/main/java/com/activeviam/limits/workflow/instance File name: LimitsProcessInstanceWorkflowService.java

The following diagram represents the various possible states and actions in the Exception workflow:

incident-review-process.bpmn

This workflow handles breaches and warnings.

activeviam:
  apps:
    workflow-service:
      workflows:
        - process-id: incident-review-process

<process id="incident-review-process" ...>"

The user tasks are defined via configuration properties. You can customize the user tasks by overriding the activeviam.apps.workflow-service.workflows.actions.* properties for the workflow with process-id: incident-review-process. The default configuration is:

actions:
  - task-name: User reviews incident
    name: Review breach
    action-input-fields:
      - label: Is the incident valid?
        task-variable: incidentIsValid
        input-type: CHECKBOX
        required: true
      - label: Classification
        task-variable: classification
        input-type: SELECT
        options:
          - Unclassified
          - Technical Issue
          - True Breach
          - New Trade
          - Late Trade
          - Market Moved
        required: true
      - label: Resolution
        task-variable: resolution
        input-type: SELECT
        options:
          - No action
          - Hedge exposure
          - Reduce position
          - Keep position
          - Keep, request increase
        default-value: No action
        required: true
      - label: Comment
        task-variable: comment
        input-type: TEXT
        required: false
      - label: Attachments
        task-variable: attachments
        input-type: ATTACHMENTS
        required: false
      - label: Attachment link
        task-variable: attachmentLink
        input-type: LINK
        required: false
  - task-name: User reviews incident
    name: Review warning
    action-input-fields:
      - label: Comment
        task-variable: comment
        input-type: TEXT
        required: false
      - label: Attachments
        task-variable: attachments
        input-type: ATTACHMENTS
        required: false
      - label: Attachment link
        task-variable: attachmentLink
        input-type: LINK
        required: false

The service tasks are defined via Spring beans. You can customize the service tasks by defining your own bean with type org.activiti.api.process.runtime.connector.Connector and name matching the implementation property of the service task in the BPMN file. The default service task beans are defined in IncidentReviewConfig.java:

@Bean
@ConditionalOnMissingBean(name = "notifyUsersOfNewIncident")
public Connector notifyUsersOfNewIncident() {
  return integrationContext -> {
    log.info("A new incident has been created, notifying relevant users.");
    notificationService.publishNotification(
            Notification.notificationWithDefaultActionsBuilder()
                    .title("New Incident Created")
                    .description("A new incident has been created and requires your review.")
                    .severity(MEDIUM)
                    .classifiers(List.of("incident"))
                    .userRoles(List.of("ROLE_MANAGERS"))
                    .sourceId(integrationContext.getInBoundVariable(OBJECT_ID_VARIABLE_NAME))
                    .build());
    return integrationContext;
  };
}

@Bean
@ConditionalOnMissingBean(name = "notifyUsersOfIncidentResolution")
public Connector notifyUsersOfIncidentResolution() {
  return integrationContext -> {
    log.info("An incident has been resolved, notifying relevant users.");
    integrationContext.addOutBoundVariable(STATUS_VARIABLE_NAME, REVIEWED.toString());
    List<Notification> notifications =
            notificationService.getNotificationsBySourceId(
                    integrationContext.getInBoundVariable(OBJECT_ID_VARIABLE_NAME));
    notifications.forEach(
            notification ->
                    notificationService.updateNotificationStatus(
                            notification.getId(), "The incident has been reviewed.", OBSOLETE));
    return integrationContext;
  };
}

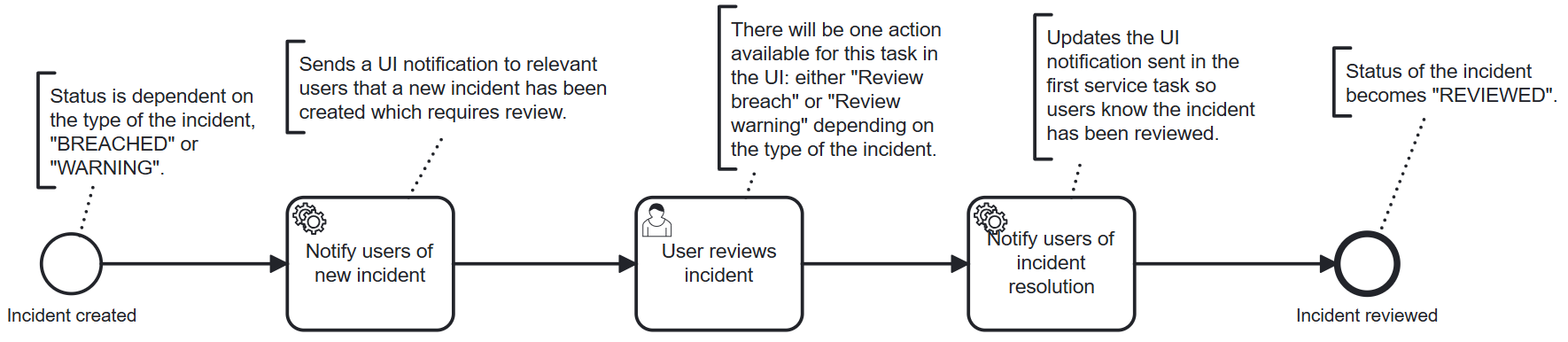

The following diagram represents the various possible states and actions in the Incident Review Process workflow:

Configuring breach email notifications

When a limit is breached, Atoti Limits notifies the specified users by email. Here’s how to configure the email:

In the limit-process-exception.bpmn, you can find the following BreachEmail section and configure the “to”, “from”, and “subject” fields, and the email body.

 <serviceTask id="mailtask1" name="BreachEmail" activiti:class="com.activeviam.limits.workflow.service.instance.activity.impl.TestMailActivityBehavior">
      <extensionElements>
        <activiti:field name="to">
          <activiti:string><![CDATA[bas.email.demo.test@gmail.com]]></activiti:string>
        </activiti:field>
        <activiti:field name="from">
          <activiti:string><![CDATA[breach@activeviam.com]]></activiti:string>
        </activiti:field>
        <activiti:field name="subject">
          <activiti:expression><![CDATA[Breach Notification - ${limitsName}]]></activiti:expression>
        </activiti:field>
        <activiti:field name="html">
          <activiti:expression><![CDATA[<html>
<head>
<style>
h3 {text-align: center;background-color:DodgerBlue;color:FloralWhite}
</style>
</head>
<body>

<h3>Breach Notification</h3>
<p>Dear Limit Controller, </p>


<p>Limit, ${limitsName}, with limit value, ${limitsValue}, is breached. Please investigate below:
<a href=${url}>Limits Inventory</a>
</p>

<p>
Thank you.
</p>

</body>
</html>]]></activiti:expression>
        </activiti:field>
      </extensionElements>
    </serviceTask>

Extending the mail provider

If you’d like to use the default Activiti mail provider, replace the activiti:class="package.to.CustomClass" in the <serviceTask> description with activiti:type="mail"

Note in the service task description the element activiti:class="com.activeviam.limits.workflow.service.instance.activity.impl.TestMailActivityBehavior". This is a way of providing a custom Java delegator to override the default MailActivityBehavior.

This is an Activiti feature that can be used to provide extra functionality to your project. For example, to avoid sending emails in a test environment, you can do the following:

public class TestMailActivityBehavior extends MailActivityBehavior {

    protected static final Logger LOGGER = LoggerFactory.getLogger(TestMailActivityBehavior.class.getSimpleName());

    @Override
    public void execute(DelegateExecution execution) {
        LOGGER.info("Sending test email for execution: " + execution);
        leave(execution);
    }
}

Uploading a limit already in a workflow state

When uploading limits in bulk, some limits may already be present in the module and in progress in one of the workflows. Here’s how the state of the affected limit changes when this happens:

FourEyes Workflow:

• “Pending Approval” becomes “Approved”.
• “Pending Deletion” becomes “Deleted”.

Straight-through:

A limit in the “Approved” state stays “Approved”.
