Tutorial

We’ll see how to:

Load normalized data in multiple tables to create a multidimensional cube.
Define aggregated measures to provide application-specific and high-level insights.
Build no-code interactive charts and tables in JupyterLab.
Create dashboards in the built-in web app.

Getting started

From CSV to Cube

In this part of the tutorial, you will create your first cube from a CSV file and learn multidimensional concepts such as cube, dimension, hierarchy, measure. Let’s begin by starting a new session:

>>> import atoti as tt
>>> session = tt.Session.start()

We can now load the data from a CSV file into an in-memory table called a table:

>>> sales_table = session.read_csv(
...     data_directory / "sales.csv", keys={"Sale ID"}, table_name="Sales"
... )

We can have a look at the loaded data. They are sales from a company:

>>> sales_table.query().set_index(list(sales_table.keys)).sort_index().head()
                 Date    Shop Product  Quantity  Unit price
Sale ID
S000000000 2021-02-04  shop_0   TAB_0       1.0       210.0
S000000001 2021-02-03  shop_1   TAB_1       1.0       300.0
S000000002 2021-02-02  shop_2   CHA_2       2.0        60.0
S000000003 2021-02-01  shop_3   BED_3       1.0       150.0
S000000004 2021-01-31  shop_4   BED_4       3.0       300.0

We will come back to tables in details later, for now we will use the one we have to create a cube:

>>> cube = session.create_cube(sales_table)

That’s it, you have created your first cube! But what’s a cube exactly and how to use it?

Multidimensional concepts

A cube is a multidimensional view of some data, making it easy to explore, aggregate, filter and compare. It’s called a cube because each attribute of the data can be represented as a dimension of the cube:

The axes of the cube are called hierarchies. The purpose of multidimensional analysis is to visualize some numeric indicators at specific coordinates of the cube. These indicators are called measures. An example of measure would be the quantity of products sold. We can list the hierarchies in our cube:

>>> # Aliasing the hierarchies property to a shorter variable name because we will use it a lot.
>>> h = cube.hierarchies
>>> h

Dimensions
- Sales
  - Date
    1. Date
  - Product
    1. Product
  - Sale ID
    1. Sale ID
  - Shop
    1. Shop

The cube has automatically created a hierarchy for each non numeric column: Date, Product, Sale ID and Shop. You can see that the hierarchy are grouped into dimensions. Here we have a single dimension called Sales, which is the name of the table the columns come from. We will see how to move hierarchies between dimensions later. Hierarchies are also made of levels. Levels of the same hierarchy are attributes with a parent-child relationship. For instance, a city belongs to a country so Country and City could be the two levels of a Geography hierarchy. At the moment, we only have single-level hierarchies.

>>> l = cube.levels

Let’s have a look at the measures of the cube that have been inferred from the data:

>>> m = cube.measures
>>> m

Measures
- Quantity.MEAN
  - formatter: DOUBLE[#,###.00]
- Quantity.SUM
  - formatter: DOUBLE[#,###.00]
- Unit price.MEAN
  - formatter: DOUBLE[#,###.00]
- Unit price.SUM
  - formatter: DOUBLE[#,###.00]
- contributors.COUNT
  - formatter: INT[#,###]

The cube has automatically created the sum and mean aggregations for all the numeric columns of the dataset. Note that a measure isn’t a single result number, it’s more a formula that can be evaluated for any coordinates of the cube. For instance, we can query the grand total of Quantity.SUM, which means summing the sold quantities over the whole dataset:

>>> cube.query(m["Quantity.SUM"])
  Quantity.SUM
0     8,077.00

But we can also dice the cube to get the quantity for each Shop, which means taking one slice of the cube for each Shop:

>>> cube.query(m["Quantity.SUM"], levels=[l["Shop"]])
        Quantity.SUM
Shop
shop_0        202.00
shop_1        202.00
shop_10       203.00
shop_11       203.00
shop_12       201.00
shop_13       202.00
shop_14       202.00
shop_15       202.00
shop_16       201.00
shop_17       204.00
shop_18       202.00
shop_19       202.00
shop_2        202.00
shop_20       201.00
shop_21       201.00
shop_22       201.00
shop_23       203.00
shop_24       203.00
shop_25       201.00
shop_26       202.00
shop_27       202.00
shop_28       202.00
shop_29       201.00
shop_3        201.00
shop_30       204.00
shop_31       202.00
shop_32       202.00
shop_33       201.00
shop_34       201.00
shop_35       201.00
shop_36       203.00
shop_37       203.00
shop_38       201.00
shop_39       202.00
shop_4        204.00
shop_5        202.00
shop_6        202.00
shop_7        201.00
shop_8        201.00
shop_9        201.00

We can slice on a single Shop:

>>> cube.query(
...     m["Quantity.SUM"],
...     filter=l["Shop"] == "shop_0",
... )
  Quantity.SUM
0       202.00

We can dice along 2 different axes and take the quantity per product and date.

>>> cube.query(
...     m["Quantity.SUM"], levels=[l["Date"], l["Product"]]
... )
                   Quantity.SUM
Date       Product
2021-01-06 BED_24          8.00
           BED_25          4.00
           BED_26          6.00
           BED_27          4.00
           BED_3           2.00
...                         ...
2021-02-04 TSH_52          6.00
           TSH_53          4.00
           TSH_7           3.00
           TSH_8           5.00
           TSH_9           3.00

[1830 rows x 1 columns]

We can even combine these operations to slice on one hierarchy and dice on the two others:

>>> cube.query(
...     m["Quantity.SUM"],
...     levels=[l["Date"], l["Product"]],
...     filter=l["Shop"] == "shop_0",
... )
                   Quantity.SUM
Date       Product
2021-01-15 BED_24          1.00
           BED_26          1.00
           BED_3           1.00
           BED_4           1.00
           BED_46          1.00
...                         ...
2021-02-04 TSH_51          2.00
           TSH_52          1.00
           TSH_53          1.00
           TSH_7           1.00
           TSH_9           1.00

[125 rows x 1 columns]

So far we have used cube.query() which returns a pandas DataFrame but a better way to visualize multidimensional data is a pivot table. With Atoti’s JupyterLab extension, you can create interactive widgets such as pivot tables and charts directly into your notebook. This will create a widget and open the Atoti tab on the left with tools to manipulate the widget. Let’s start by creating a pivot table:

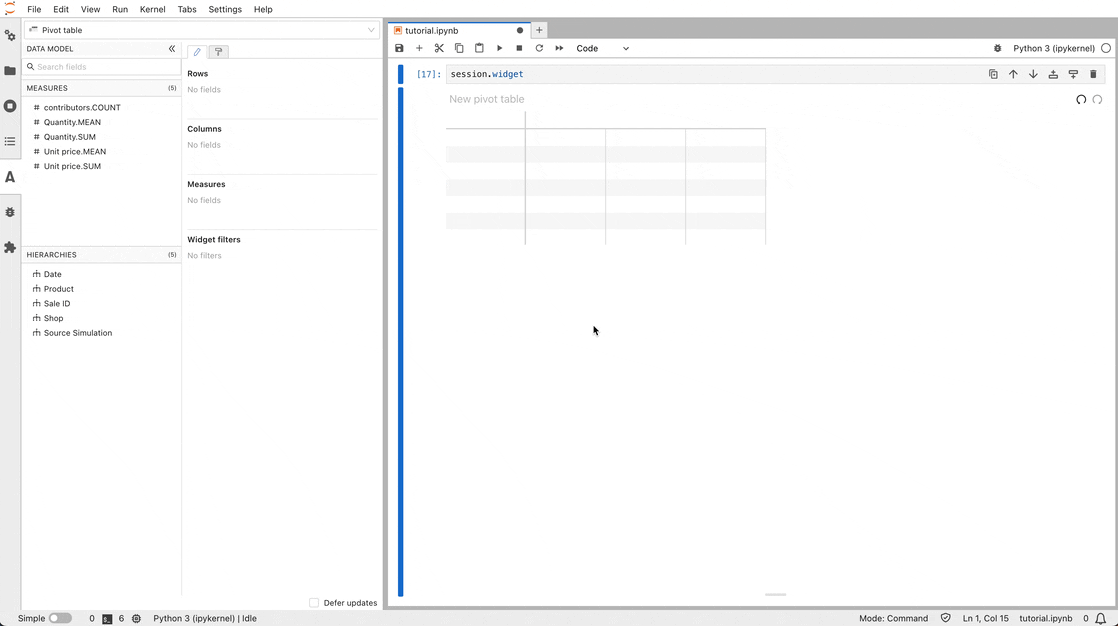

Run session.widget.
In the left panel, click on a measure such as Quantity.SUM to add it.
Click on a hierarchy such as Date to get the quantity per date.
Drag and drop another hierarchy such as Product to the Columns section to get the quantity sold per day and per product.

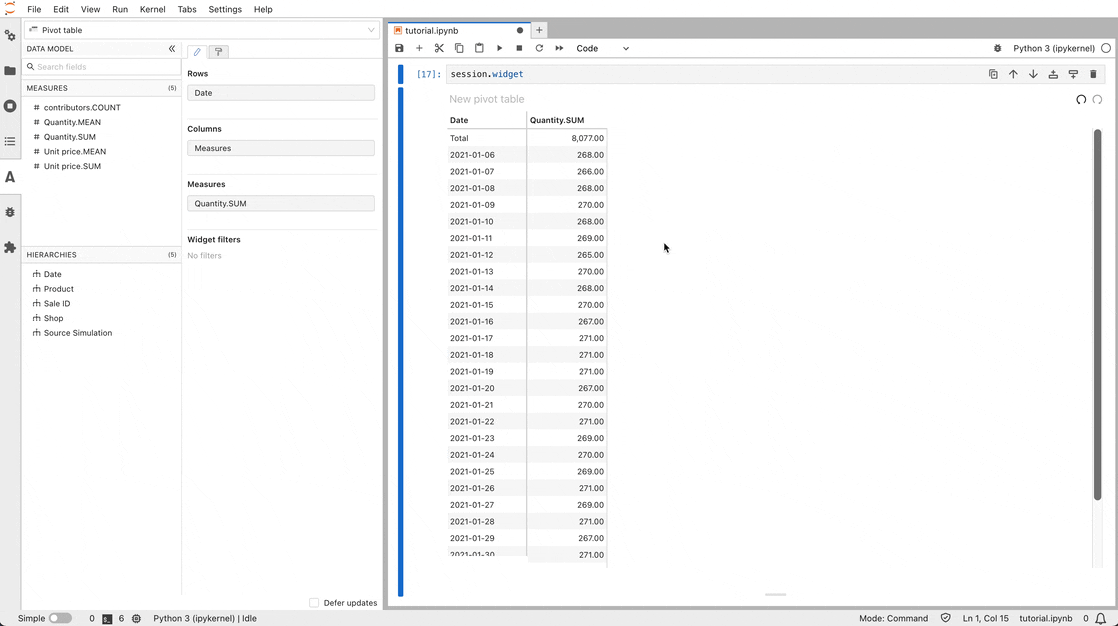

Tables can be switched to charts. For instance let’s switch to a line chart.

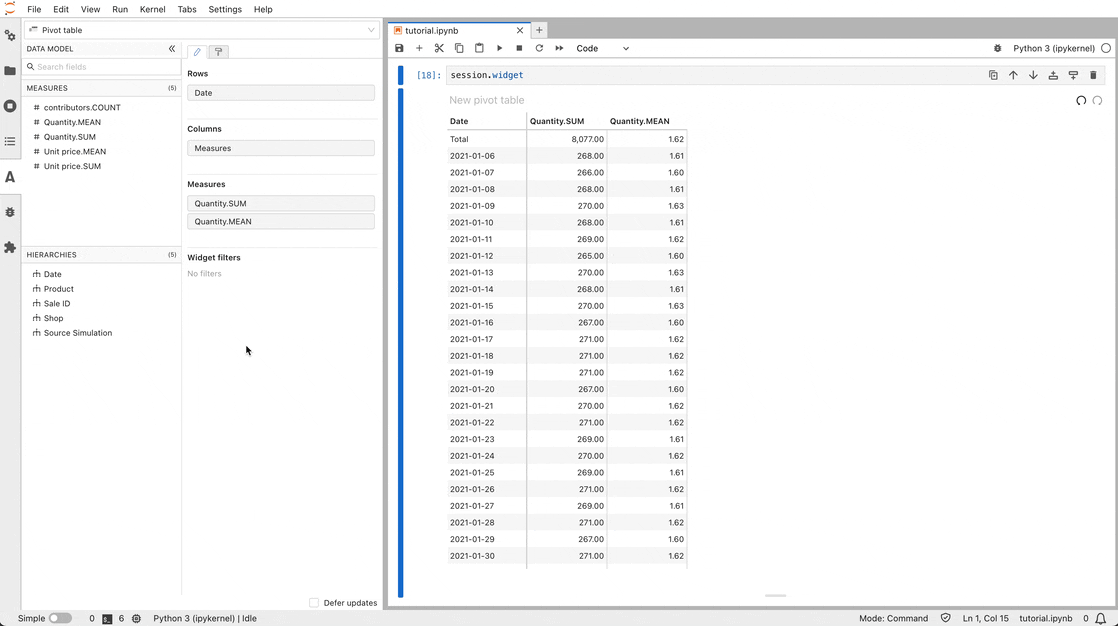

Drilldown and filters

Multidimensional analysis is meant to be done from top to bottom: start by visualizing the indicators at the top level then drilldown to explain the top figures with more details. For instance, we can visualize some measures per date then drilldown on Shop for a specific date, then see the products sold by a specific shop on this date. Using the previous cube representation, this is like zooming more and more on a part of the cube.

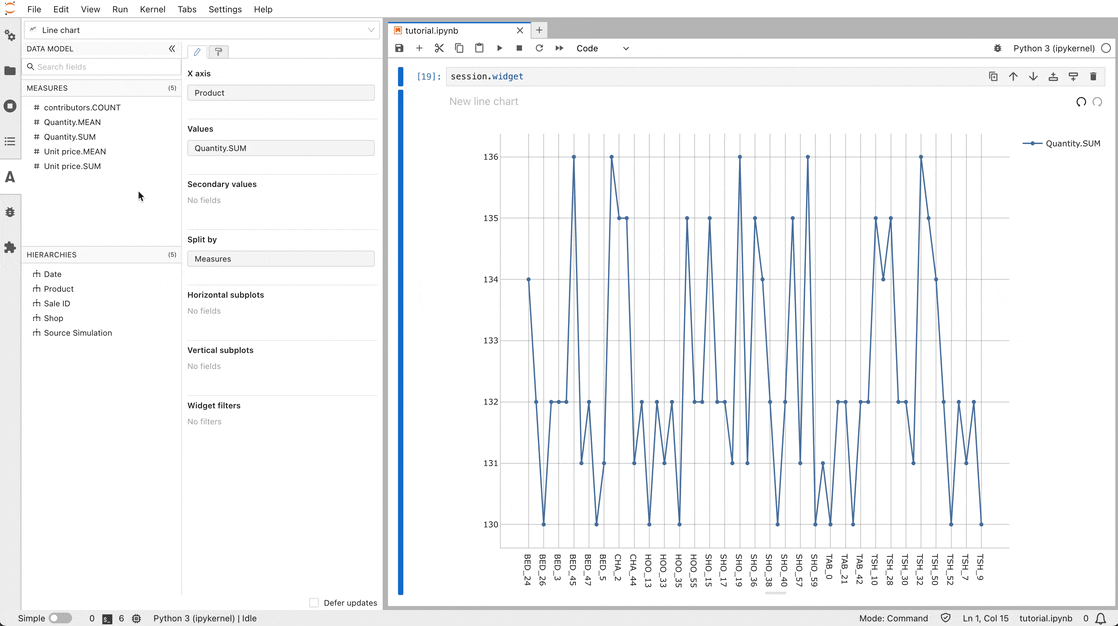

Hierarchies can be filtered when building widgets. Let’s apply a filter on the previous chart and only visualize the quantity for a group of selected products.

Dashboarding app

Being able to quickly build widgets inside a notebook without coding is nice to rapidly explore the data, iterate on your model and share some results. However, to provide richer insights, dashboards are even better. That’s why Atoti comes with a web app that can be accessed outside of the notebook and where widgets can be laid out to form dashboards. The app can be accessed with this link:

>>> session.link
http://localhost:9090

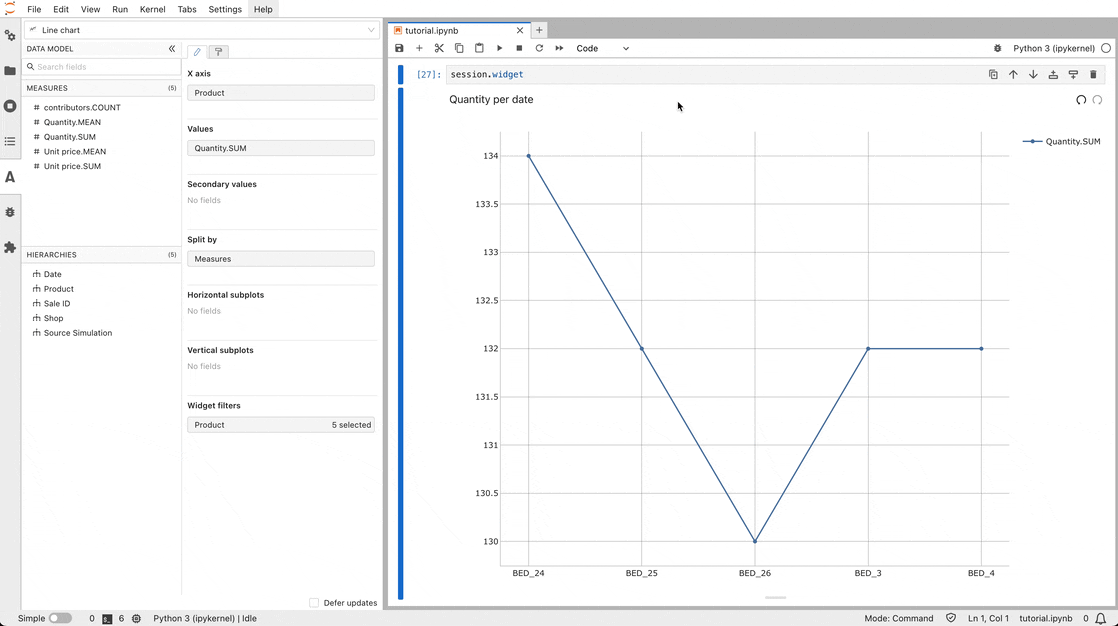

Widgets built in the notebook can be saved in the app by right clicking on them and selecting Save widget in app. They will then be available in the Saved widgets section.

Enriching the cube

In the previous section, you have learned how to create a basic cube and manipulate it. We will now enrich this cube with additional attributes and more interesting measures.

Join

Currently, we have very limited information about our products: only the ID. We can load a CSV containing more details into a new table:

>>> products_table = session.read_csv(
...     data_directory / "products.csv", keys={"Product"}, table_name="Products"
... )

Note that a table can have a set of keys. These keys are the columns which make each line unique. Here, it’s the product ID. If you try to insert a new row with the same keys as an existing row, it will override the existing one.

>>> products_table.query().set_index(list(products_table.keys)).sort_index().head()
          Category Sub category    Size  Purchase price  Color  Brand
Product
BED_24   Furniture          Bed  Single           127.0  brown  Basic
BED_25   Furniture          Bed  Double           252.0  black   Mega
BED_26   Furniture          Bed   Queen           333.0  white  Basic
BED_27   Furniture          Bed    King           375.0   blue   Mega
BED_3    Furniture          Bed  Single           127.0    red   Mega

This table contains the category, subcategory, size, color, purchase price and brand of the product. Both tables have a Product column we can use to join them.

>>> sales_table.join(
...     products_table, sales_table["Product"] == products_table["Product"]
... )

Note that this is a database-like join and not a pandas-like join. All the details from products_table won’t be inlined into sales_table. Instead, this just declares a reference between these two tables that the cube can use to provide more analytical axes. You can visualize the structure of the session’s tables:

>>> session.tables.schema

The new columns have been automatically added to the cube as hierarchies, in a dimension with the same name as the new table:

>>> h

Dimensions
- Products
  - Brand
    1. Brand
  - Category
    1. Category
  - Color
    1. Color
  - Size
    1. Size
  - Sub category
    1. Sub category
- Sales
  - Date
    1. Date
  - Product
    1. Product
  - Sale ID
    1. Sale ID
  - Shop
    1. Shop

You can use them directly in a new widget. For instance, let’s create a bar chart to visualize the mean price per subcategory of product:

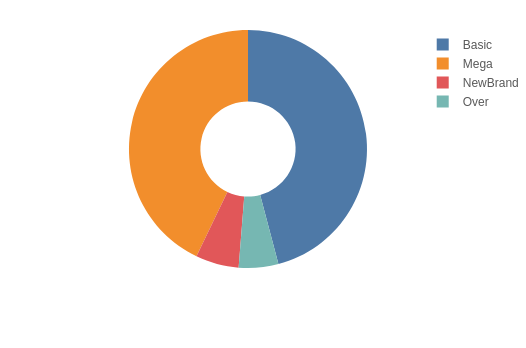

We can also make a donut chart to see how all the sales are distributed between brands:

Note that after the join we can add a new measure called Purchase price.VALUE based on the corresponding column of the joined table. This measure represents the value of the column so it is only defined when all the keys of the joined table are expressed in the query.

>>> m["Purchase price.VALUE"] = tt.agg.single_value(products_table["Purchase price"])

For instance we can check the purchase price per Product:

>>> cube.query(
...     m["Purchase price.VALUE"], levels=[l["Product"]]
... )
        Purchase price.VALUE
Product
BED_24                127.00
BED_25                252.00
BED_26                333.00
BED_27                375.00
BED_3                 127.00
...                      ...
TSH_52                 20.00
TSH_53                 21.00
TSH_7                  17.00
TSH_8                  18.00
TSH_9                  19.00

[61 rows x 1 columns]

In a similar way, we can enrich the data about the shops:

>>> shops_table = session.read_csv(
...     data_directory / "shops.csv", keys={"Shop ID"}, table_name="Shops"
... )
>>> shops_table.query().set_index(list(shops_table.keys)).sort_index().head()
                  City             State or region Country Shop size
Shop ID
shop_0        New York                    New York     USA       big
shop_1     Los Angeles                  California     USA    medium
shop_10           Nice  Provence-Alpes-Côte d'Azur  France    medium
shop_11           Lyon        Auvergne-Rhône-Alpes  France    medium
shop_12  Saint-Étienne        Auvergne-Rhône-Alpes  France    medium

>>> sales_table.join(shops_table, sales_table["Shop"] == shops_table["Shop ID"])
>>> session.tables.schema

New measures

So far we have only used the default measures which are basic aggregations of the numeric columns. We can add new custom measures to our cube.

Max

We’ll start with an aggregation taking the maximum price of the sales table:

>>> m["Max price"] = tt.agg.max(sales_table["Unit price"])

This new measure is directly available:

>>> cube.query(m["Max price"], include_totals=True, levels=[l["Category"]])
          Max price
Category
Total        440.00
Cloth         60.00
Furniture    440.00

Fact-level operations

To compute aggregates based of data which comes directly from the columns of a table, you can pass the calculation directly to the desired aggregation function. This is more efficient than first converting the columns to measures before the aggregation. Let’s use this to compute the total amount earned from the sale of the products, as well as the average.

>>> m["Amount.SUM"] = tt.agg.sum(sales_table["Quantity"] * sales_table["Unit price"])
>>> m["Amount.MEAN"] = tt.agg.mean(
...     sales_table["Quantity"] * sales_table["Unit price"],
... )

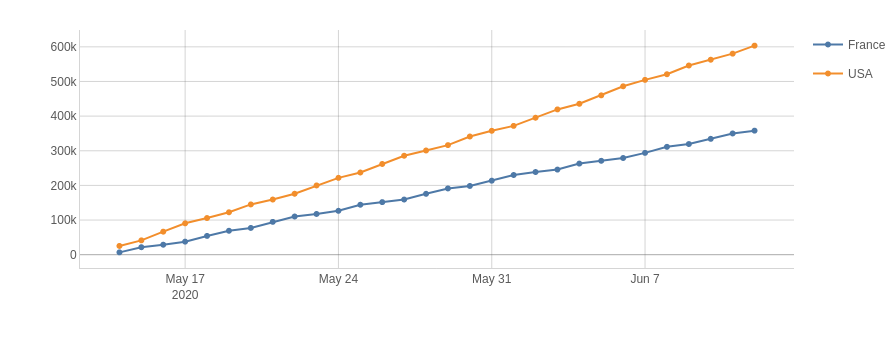

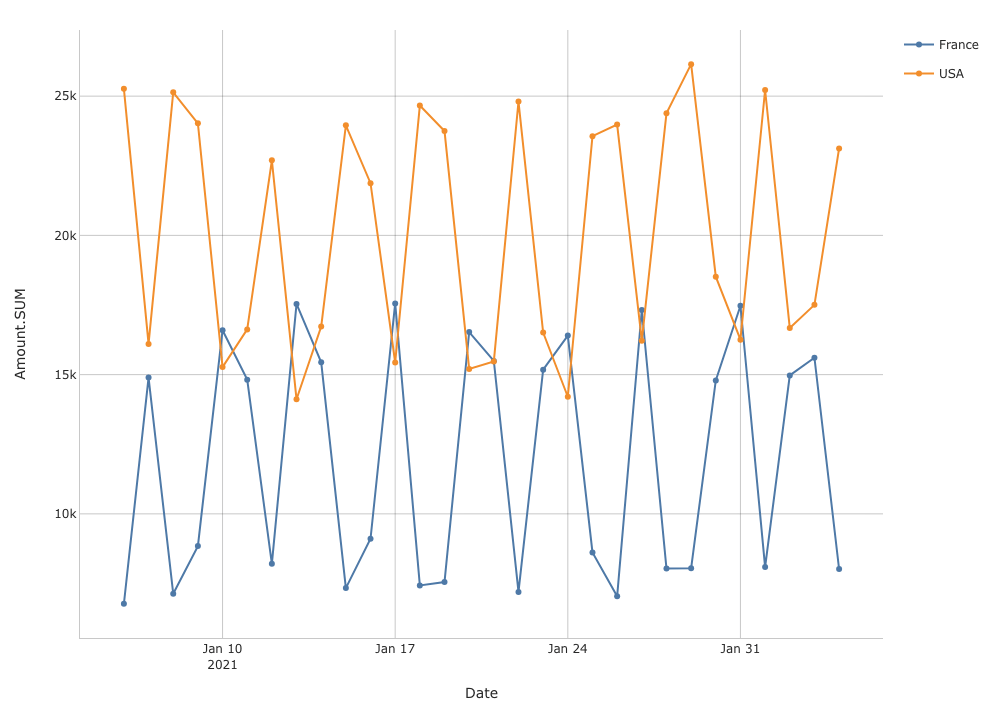

We can now plot the evolution of the sales per country over time:

Margin

Now that the price of each product is available from the products table, we can compute the margin. We use the OriginScope to perform the multiplication of the quantity sold by the purchase price for each Product and then do the sum.

>>> cost = tt.agg.sum(
...     m["Quantity.SUM"] * tt.agg.single_value(products_table["Purchase price"]),
...     scope=tt.OriginScope({l["Product"]}),
... )

>>> m["Margin"] = m["Amount.SUM"] - cost

We can also define the margin rate which is the ratio of the margin by the the sold amount:

>>> m["Margin rate"] = m["Margin"] / m["Amount.SUM"]

>>> cube.query(
...     m["Margin"], m["Margin rate"], levels=[l["Product"]]
... )
           Margin Margin rate
Product
BED_24   3,082.00         .15
BED_25   6,336.00         .16
BED_26   8,060.00         .16
BED_27   8,580.00         .15
BED_3    3,036.00         .15
...
TSH_52     520.00         .17
TSH_53     396.00         .12
TSH_7      393.00         .15
TSH_8      264.00         .10
TSH_9      390.00         .14

[61 rows x 2 columns]

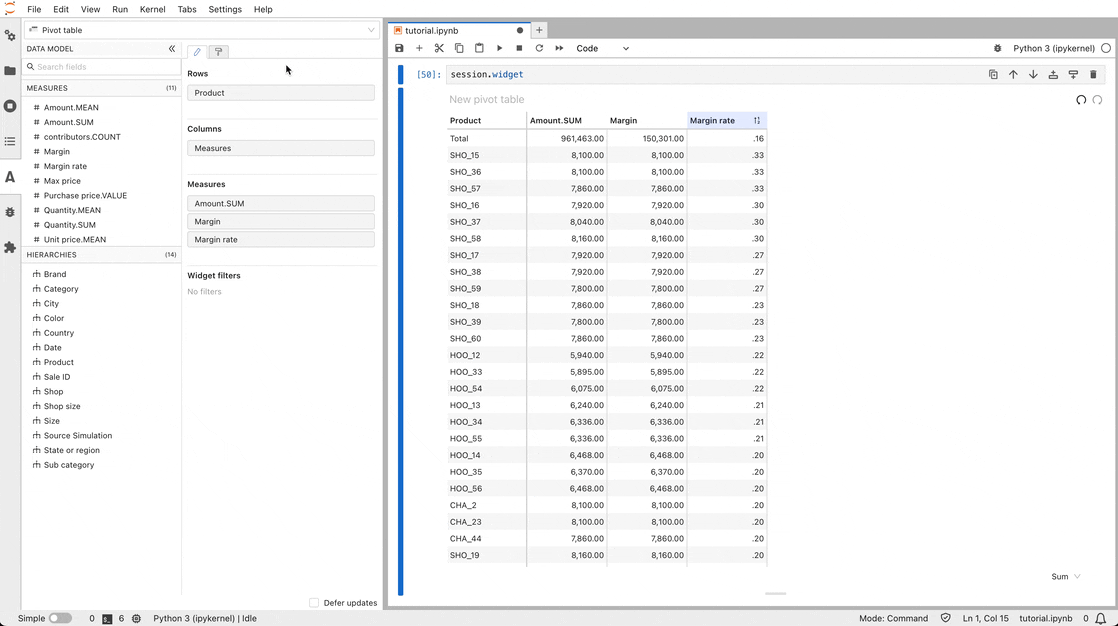

Let’s use this margin rate to do a Top 10 filter to see the products with the best rate. Note that you don’t need to put the rate measure and the product level in the pivot table to apply the filter.

Cumulative sum over time

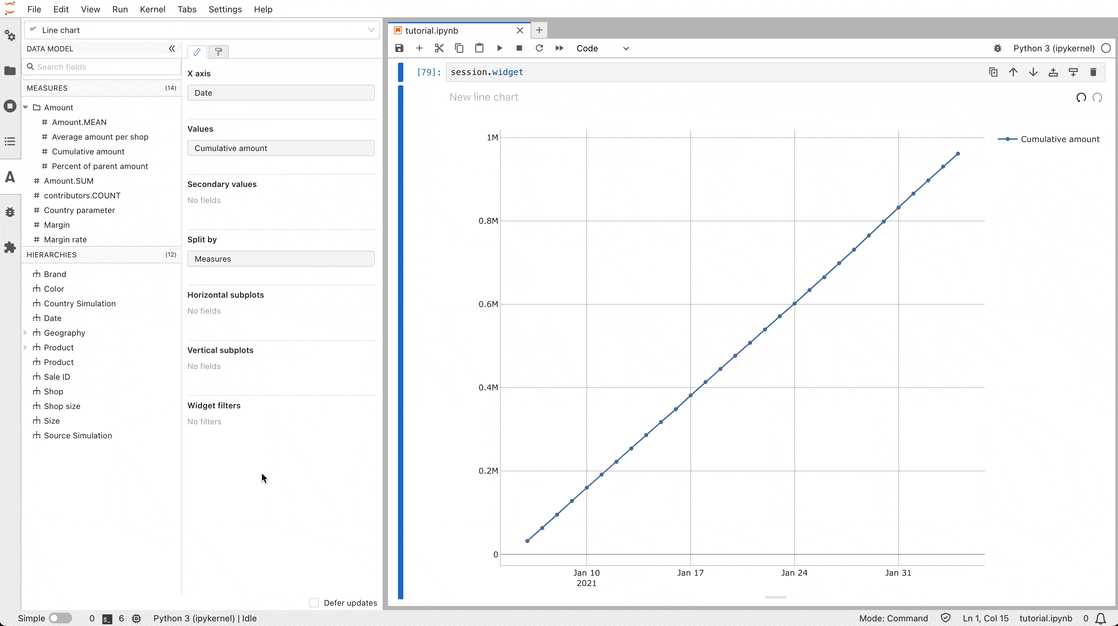

A cumulative sum is the partial sum of the data up to the current value. For instance, a cumulative sum over time can be used to show how some measure changes over time.

>>> m["Cumulative amount"] = tt.agg.sum(
...     m["Amount.SUM"],
...     scope=tt.CumulativeScope(l["Date"]),
... )

Average per shop

Aggregations can also be combined. For instance, we can sum inside a Shop: then take the average of this to see how much a table sales on average:

>>> m["Average amount per shop"] = tt.agg.mean(
...     m["Amount.SUM"],
...     scope=tt.OriginScope({l["Shop"]}),
... )

>>> cube.query(
...     m["Average amount per shop"],
...     include_totals=True,
...     levels=[l["Sub category"]],
... )
             Average amount per shop
Sub category
Total                      24,036.58
Bed                        12,728.88
Chair                         601.50
Hoodie                      1,403.20
Shoes                       3,184.50
T-shirt                     1,095.00
Table                       5,023.50

Multilevel hierarchies

So far, all our hierarchies only had one level but it’s best to regroup attributes with a parent-child relationship in the same hierarchy. For example, we can group the Category, SubCategory and Product ID levels into a Product hierarchy:

>>> h["Product"] = [l["Category"], l["Sub category"], l["Product"]]

And let’s remove the old hierarchies:

>>> del h["Category"]
>>> del h["Sub category"]

>>> h

Dimensions
- Products
  - Brand
    1. Brand
  - Color
    1. Color
  - Product
    1. Category
    2. Sub category
    3. Product
  - Size
    1. Size
- Sales
  - Date
    1. Date
  - Product
    1. Product
  - Sale ID
    1. Sale ID
  - Shop
    1. Shop
- Shops
  - City
    1. City
  - Country
    1. Country
  - Shop size
    1. Shop size
  - State or region
    1. State or region

We can also do it with City, State or Region and Country to build a Geography hierarchy. Note that instead of using existing levels you can also define a hierarchy with the columns of the table the levels will be based on:

>>> h["Geography"] = [
...     shops_table["Country"],
...     shops_table["State or region"],
...     shops_table["City"],
... ]
>>> del h["Country"]
>>> del h["State or region"]
>>> del h["City"]

As we are restructuring the hierarchies, let’s use this opportunity to also change the dimensions. A dimension regroups hierarchies of the same concept. We can move the new Geography hierarchy to its own dimension:

>>> h["Geography"].dimension_name = "Location"
>>> h

Dimensions
- Location
  - Geography
    1. Country
    2. State or region
    3. City
- Products
  - Brand
    1. Brand
  - Color
    1. Color
  - Product
    1. Category
    2. Sub category
    3. Product
  - Size
    1. Size
- Sales
  - Date
    1. Date
  - Product
    1. Product
  - Sale ID
    1. Sale ID
  - Shop
    1. Shop
- Shops
  - Shop size
    1. Shop size

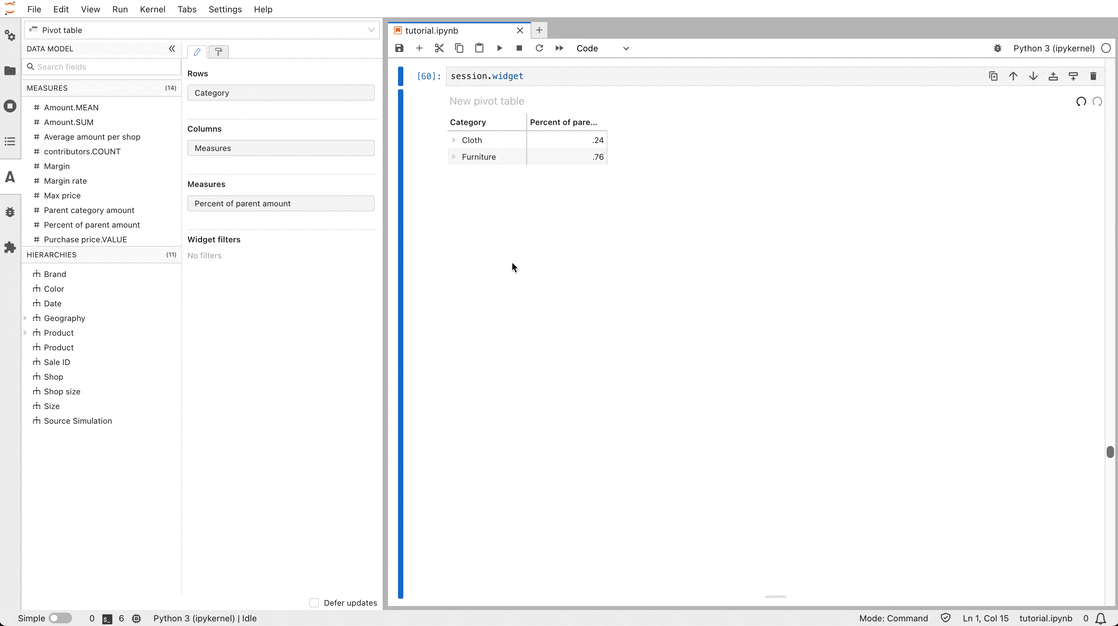

With that, we can define new measures taking advantage of the multilevel structure. For instance, we can create a measure indicating how much a product contributes to its subcategory:

>>> m["Parent category amount"] = tt.parent_value(
...     m["Amount.SUM"],
...     degrees={h["Products", "Product"]: 1},
... )

>>> m["Percent of parent amount"] = m["Amount.SUM"] / m["Parent category amount"]

Polishing the cube

Deleting or hiding measures

Some measures have been automatically created from numeric columns but are not useful. For instance, Unit Price.SUM does not really make sense as we never want to sum the unit prices. We can delete it:

>>> del m["Unit price.SUM"]

Other measures have been used while building the project only as intermediary steps but are not useful to the end users in the app. We can hide them from the UI (they will remain accessible in Python):

>>> m["Parent category amount"].visible = False

Measure folders

Measures can be rearranged into folders.

>>> for measure in [
...     m["Amount.MEAN"],
...     m["Amount.SUM"],
...     m["Average amount per shop"],
...     m["Cumulative amount"],
...     m["Percent of parent amount"],
... ]:
...     measure.folder = "Amount"

>>> m

Measures
- 📁 Amount
  - Amount.MEAN
    - formatter: DOUBLE[#,###.00]
  - Amount.SUM
    - formatter: DOUBLE[#,###.00]
  - Average amount per shop
    - formatter: DOUBLE[#,###.00]
  - Cumulative amount
    - formatter: DOUBLE[#,###.00]
  - Percent of parent amount
    - formatter: DOUBLE[#,###.00]
- Margin
  - formatter: DOUBLE[#,###.00]
- Margin rate
  - formatter: DOUBLE[#,###.00]
- Max price
  - formatter: DOUBLE[#,###.00]
- Purchase price.VALUE
  - formatter: DOUBLE[#,###.00]
- Quantity.MEAN
  - formatter: DOUBLE[#,###.00]
- Quantity.SUM
  - formatter: DOUBLE[#,###.00]
- Unit price.MEAN
  - formatter: DOUBLE[#,###.00]
- contributors.COUNT
  - formatter: INT[#,###]

Measure formatters

Some measures can be formatted for a nicer display. Classic examples of this is changing the number of decimals or adding a percent or a currency symbol. Let’s do this for our percent of parent amount and margin rate:

Before

>>> cube.query(m["Percent of parent amount"], m["Margin rate"], levels=[l["Category"]])
          Percent of parent amount Margin rate
Category
Cloth                          .24         .23
Furniture                      .76         .13

>>> m["Percent of parent amount"].formatter = "DOUBLE[0.00%]"
>>> m["Margin rate"].formatter = "DOUBLE[0.00%]"

After

>>> cube.query(m["Percent of parent amount"], m["Margin rate"], levels=[l["Category"]])
          Percent of parent amount Margin rate
Category
Cloth                       23.64%      22.56%
Furniture                   76.36%      13.49%

Simulations

Simulations are a way to compare several scenarios and do what-if analysis. This helps understanding how changing the source data or a piece of the model impact the key indicators. In Atoti, the data model is made of measures chained together. A simulation can be seen as changing one part of the model, either its source data or one of its measure definitions, and then evaluating how it impacts the following measures.

Source simulation

Let’s start by changing the source. With pandas or Spark, if you want to compare two results for a different versions of the entry dataset you have to reapply all the transformations to your dataset. With Atoti, you only have to provide the new data and all the measures will be automatically available for both versions of the data. We will create a new scenario using pandas to modify the original dataset.

>>> import pandas as pd

For instance, we can simulate what would happen if we had managed to purchase some products at a cheaper price.

>>> products_df = pd.read_csv(data_directory / "products.csv")
>>> products_df.head()
  Product   Category Sub category    Size  Purchase price  Color  Brand
0   TAB_0  Furniture        Table    1m80           190.0  black  Basic
1   TAB_1  Furniture        Table    2m40           280.0  white   Mega
2   CHA_2  Furniture        Chair     NaN            48.0   blue  Basic
3   BED_3  Furniture          Bed  Single           127.0    red   Mega
4   BED_4  Furniture          Bed  Double           252.0  brown  Basic

>>> better_prices = {
...     "TAB_0": 180.0,
...     "TAB_1": 250.0,
...     "CHA_2": 40.0,
...     "BED_3": 110.0,
...     "BED_4": 210.0,
... }

>>> for product, purchase_price in better_prices.items():
...     products_df.loc[products_df["Product"] == product, "Purchase price"] = (
...         purchase_price
...     )
>>> products_df.head()
  Product   Category Sub category    Size  Purchase price  Color  Brand
0   TAB_0  Furniture        Table    1m80           180.0  black  Basic
1   TAB_1  Furniture        Table    2m40           250.0  white   Mega
2   CHA_2  Furniture        Chair     NaN            40.0   blue  Basic
3   BED_3  Furniture          Bed  Single           110.0    red   Mega
4   BED_4  Furniture          Bed  Double           210.0  brown  Basic

We can now load this new dataframe into a new scenarios of the products table.

>>> products_table.scenarios["Cheaper purchase prices"].load(products_df)

The session now has two scenarios and the only differences between them are the lines corresponding to the products with better prices, everything else is shared between the scenarios and has not been duplicated: source scenarios in Atoti are memory-efficient.

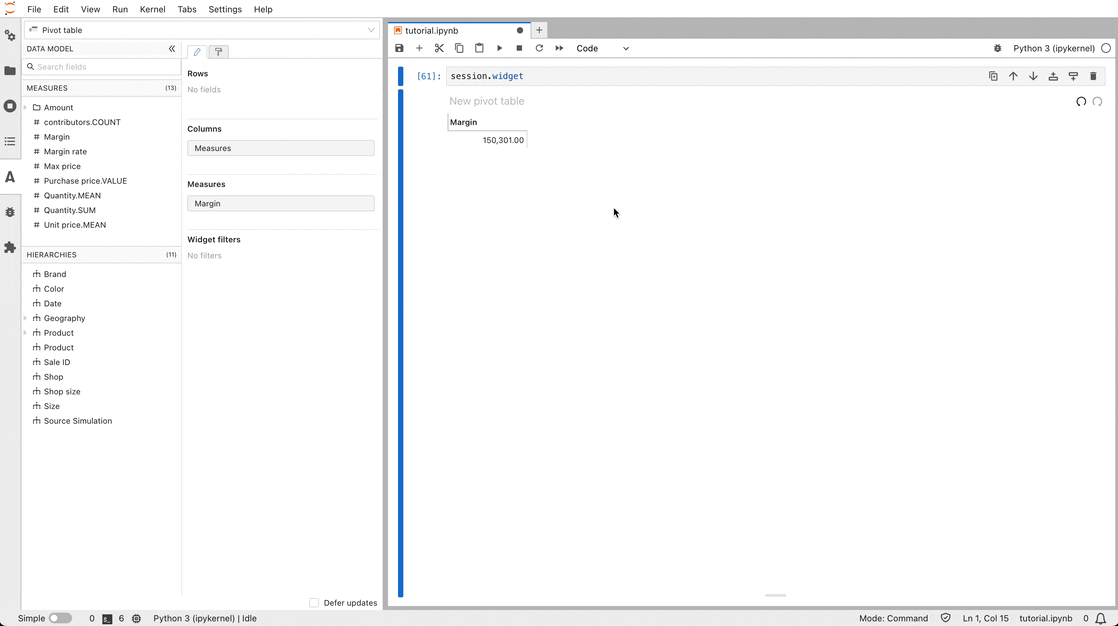

Using the Source Simulation hierarchy we can display the margin of the scenario and compare it to the base case.

Note that all the existing measures are immediately available on the new data. For instance, the margin rate still exists, and we can see that in this scenario we would have a better margin for the Furniture products.

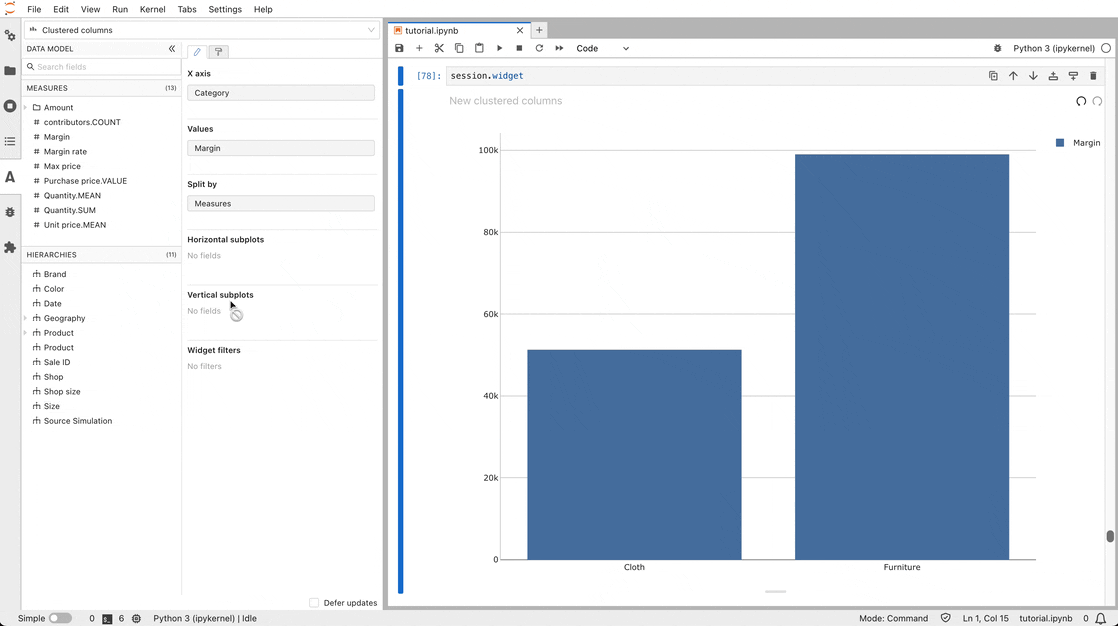

Margin rate per product category and scenario

Parameter simulations

The other simulation technique is to create a parameter measure whose value can be changed for some coordinates. When creating the simulation, you can choose at which granularity the modification applies. For instance we can create a parameter measure whose value will change depending on the country. Doing that, we can answer questions such as “What happens if there is a crisis in France and we sell 20% less?”

>>> country_simulation = cube.create_parameter_simulation(
...     "Country Simulation",
...     levels=[l["Country"]],
...     measures={"Country parameter": 1.0},
... )

This has created a measure named Country parameter and added it to the cube. For now, its value is 1 everywhere, but using the country_simulation we can change that. By adding values in the table you can change the value of the parameter measure depending on the levels used in the simulation and the scenario.

>>> country_simulation += ("France Crisis", "France", 0.80)
>>> country_simulation.head()
                       Country parameter
Scenario      Country
France Crisis France                 0.8

Let’s replace the existing Quantity.SUM and Amount.SUM measures with new ones using the parameter measure from the simulation.

>>> m["Quantity.SUM"] = tt.agg.sum(
...     tt.agg.sum(sales_table["Quantity"]) * m["Country parameter"],
...     scope=tt.OriginScope({l["Country"]}),
... )
>>> m["Amount.SUM"] = tt.agg.sum(
...     tt.agg.sum(sales_table["Unit price"] * sales_table["Quantity"])
...     * m["Country parameter"],
...     scope=tt.OriginScope({l["Country"]}),
... )

We can query the cube using the new Country Simulation level to compare the quantity and amount between the base case and our new scenario:

>>> cube.query(
...     m["Quantity.SUM"],
...     m["Amount.SUM"],
...     include_totals=True,
...     levels=[l["Country Simulation"], l["Country"]],
... )
                           Quantity.SUM  Amount.SUM
Country Simulation Country
Base                           8,077.00  961,463.00
                   France      3,027.00  358,042.00
                   USA         5,050.00  603,421.00
France Crisis                  7,471.60  889,854.60
                   France      2,421.60  286,433.60
                   USA         5,050.00  603,421.00

Here for example, as the amount has been modified, the measures depending on it such as the cumulative amount are also impacted:

>>> cube.query(m["Cumulative amount"], levels=[l["Country Simulation"], l["Country"]])
                           Cumulative amount
Country Simulation Country
Base               France         358,042.00
                   USA            603,421.00
France Crisis      France         286,433.60
                   USA            603,421.00

Let’s try adding a different scenario:

>>> country_simulation += ("US boost", "USA", 1.15)

>>> cube.query(m["Quantity.SUM"], levels=[l["Country Simulation"], l["Country"]])
                           Quantity.SUM
Country Simulation Country
Base               France      3,027.00
                   USA         5,050.00
France Crisis      France      2,421.60
                   USA         5,050.00
US boost           France      3,027.00
                   USA         5,807.50

The two scenarios can be visualized in the same widget:

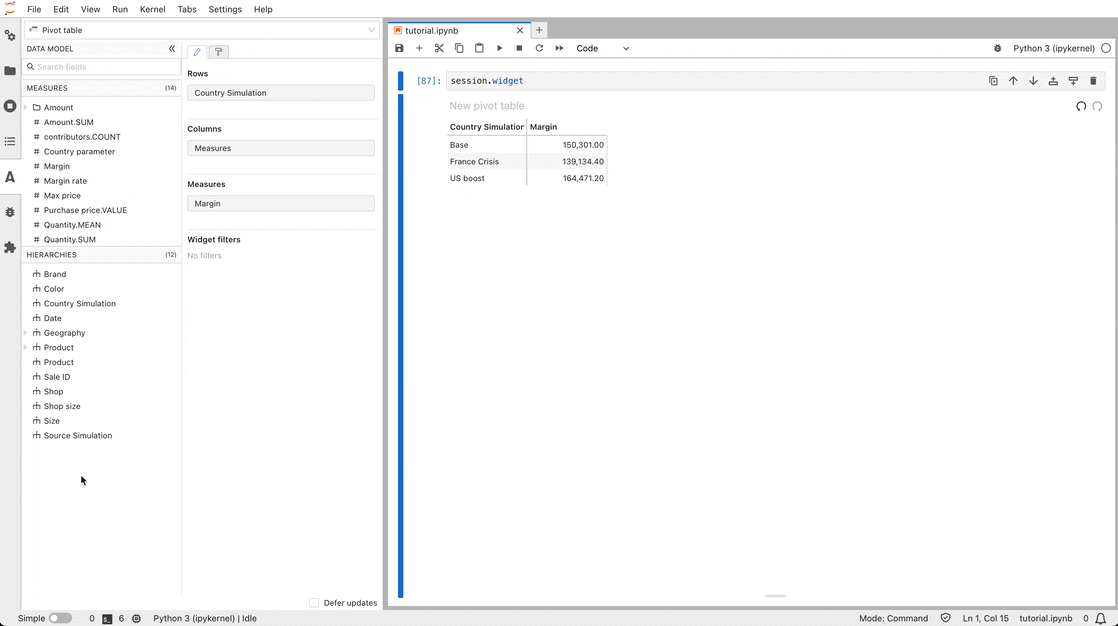

Finally, we can even combine the different simulations (the source one and the measure one) to create a matrix of scenarios:

Going further

You’ve learned all the basics to build a project with Atoti, from the concept of multidimensional analysis to powerful simulations. We now encourage you to try the library with your own data. You can also start to learn more advanced features such as SessionConfig, endpoint(), and array.

Releases and upgrades

Getting started

Guides

API reference

Getting started

From CSV to Cube

Multidimensional concepts

Interactive widget

Drilldown and filters

Dashboarding app

Enriching the cube

Join

New measures

Max

Fact-level operations

Margin

Cumulative sum over time

Average per shop

Multilevel hierarchies

Polishing the cube

Deleting or hiding measures

Measure folders

Measure formatters

Before

After

Simulations

Source simulation

Parameter simulations

Going further

​Getting started

​From CSV to Cube

​Multidimensional concepts

​Interactive widget

​Drilldown and filters

​Dashboarding app

​Enriching the cube

​Join

​New measures

​Max

​Fact-level operations

​Margin

​Cumulative sum over time

​Average per shop

​Multilevel hierarchies

​Polishing the cube

​Deleting or hiding measures

​Measure folders

​Measure formatters

​Before

​After

​Simulations

​Source simulation

​Parameter simulations

​Going further

Getting started

From CSV to Cube

Multidimensional concepts

Interactive widget

Drilldown and filters

Dashboarding app

Enriching the cube

Join

New measures

Max

Fact-level operations

Margin

Cumulative sum over time

Average per shop

Multilevel hierarchies

Polishing the cube

Deleting or hiding measures

Measure folders

Measure formatters

Before

After

Simulations

Source simulation

Parameter simulations

Going further
